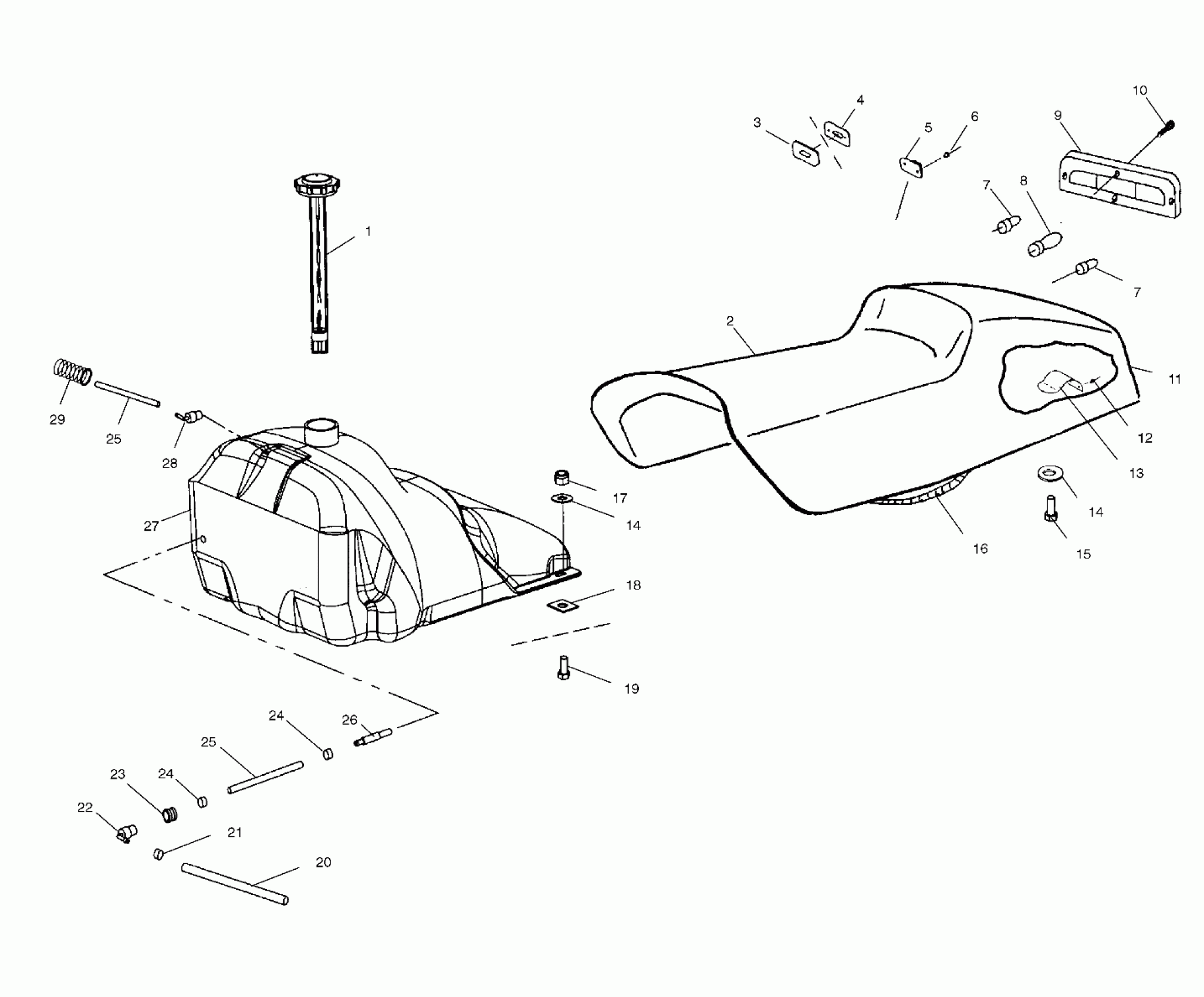

Polaris XCF SP - 099SX4FS SEAT and GAS TANK - 099SX4FS (4953375337a006) Diagram

#

Description
Price

1

CAP,GAS,W/GAUGE,2 1/2"

2511277

Unavailable

2

COVER,ASM,SEAT

2682467

Unavailable

2

CUSHION,SEAT ASM.GEN II RACER (Incl. 2-13,16)

2682474

Unavailable

3

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

4

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

5

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

6

RIVET(50)

7621337

$1.49

7

BULB,TAILLIGHT(10)

4030024

$4.84

7

BULB,TAILLIGHT(10)

4030024

$4.84

8

Bulb, Brakelight

4030045

Unavailable

9

LENS,TAILLIGHT

5430423

Unavailable

10

SCREW(10)

7511840

Unavailable

11

HOUSING-TAILLIGHT

5433341

Unavailable

12

RIVET(50)

7621472

$1.49

13

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

BOLT(10)

7512240

$3.99

16

Harness, Taillight

2460399

Unavailable

16

JUMPER,SEAT,TAIL LIGHT

2460686

$15.67

17

NUT-LOCK(10)

7542122

$1.49

18

SPEED NUT(10)

7670021

$6.99

19

BOLT-CARRIAGE(10)

7512263

$3.99

20

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

22

FITTING,1/4" 90� DEX

7052259

Unavailable

23

GROMMET-TANK FITTING(10)

7052028

$6.39

24

RING, COMPRESSION(10)

7080402

$1.60

24

RING, COMPRESSION(10)

7080402

$1.60

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

25

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

26

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

27

FUEL TANK,EDGE (Incl. 22-26)

2520150

$219.99

28

FITTING,90 DEGREE

7052065

$7.19

29

SPRING,PROTECT VENTHOSE

7041643

$3.51
