REAR TORQUE ARM - 099SX4FS (4953375337b011)

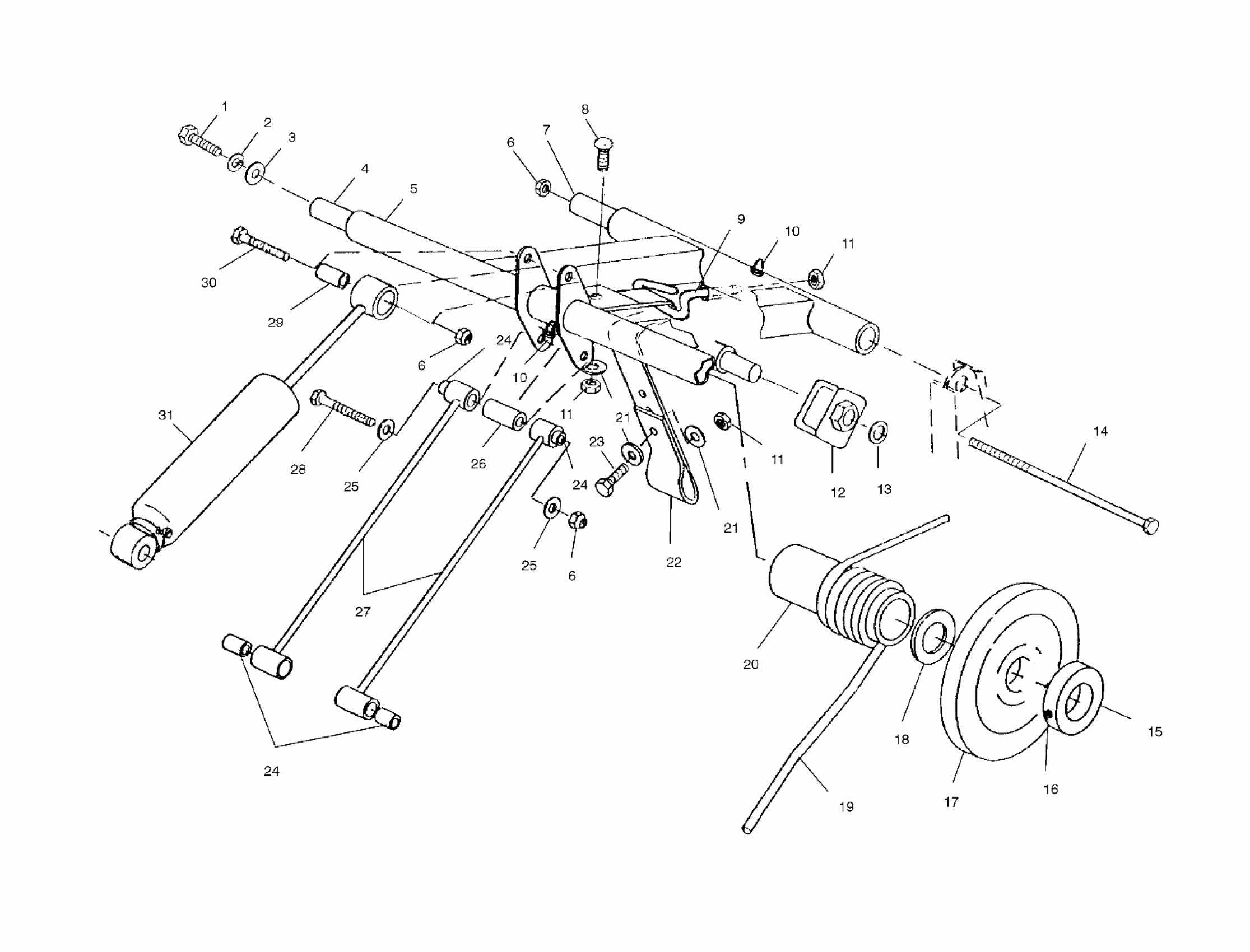

Polaris XCF SP - 099SX4FS REAR TORQUE ARM - 099SX4FS (4953375337b011) Diagram
#
1
SCREW,(10)
7517247
$3.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
SHAFT,R.TORQUE,UPPER
5020845
$63.99
5
ARM,R.TORQUE,BLK
1541152-067
Unavailable
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
6
NUT LOCK(10)
7542411
$3.19
7
Shaft
5333536
Unavailable
8
BOLT(10)
7512377
$4.79
9
BOLT,EYE
7010050
Unavailable
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
10
ZERK,FITTING,THREADED(10)
7080433
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
NUT-5/16-18 NYLOK-Y
7542324
$1.49
12
ROLLER, SPRING ADJ.
5431168
Unavailable
13
CLIP-PUSH ON
7080394
$2.39
14
Screw
7517232
$19.99
15
COLLAR,BRG LOCK
5010404
Unavailable
16
SCREW-SET(10)
7512257
$3.99
17
BEARING,CHAINCASE (1Per Wheel)
3514305
$19.99
17
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
17
Wheel, Carrier
1543023
Unavailable
18
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
19
SPRING,LH,TORS(.421DIA) (.421) Opt.
7041461-067
Unavailable
19
SPRING,RH,TORS(.437/77) (.437) Opt.
7041466-067
$107.99
19
SPRING,LH,TORS(.437/77) (.437) Opt.
7041465-067
Unavailable
19
SPRING,RH,TORS(.406DIA) (.406) Std.
7041464-067
Unavailable
19
SPRING,RH,TORS(.421DIA) (.421) Opt.
7041462-067
$113.32
19
SPRING,LH,TORS(.406DIA) (.406) Std.
7041463-067
Unavailable
20
SLEEVE,TORSION SPRING
5431923
$6.39
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
STRAP,LIMITER
5411061
Unavailable
23
SCREW(10)
7512310
$2.39
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
24
BUSHING,PIVOT TUBE
5020561
$1.59
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
25
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
26
Spacer
5333559
Unavailable
27
ROD,SHOCK
1541015-067
Unavailable
28
BOLT(10)
7515472
$2.39
29
BUSHING
5010422
$11.99
30
BOLT(10) Substituted by 7515492
7512410
Unavailable
31
SHOCK,RR.TRACK,X-10,AFX
7041667
Unavailable
