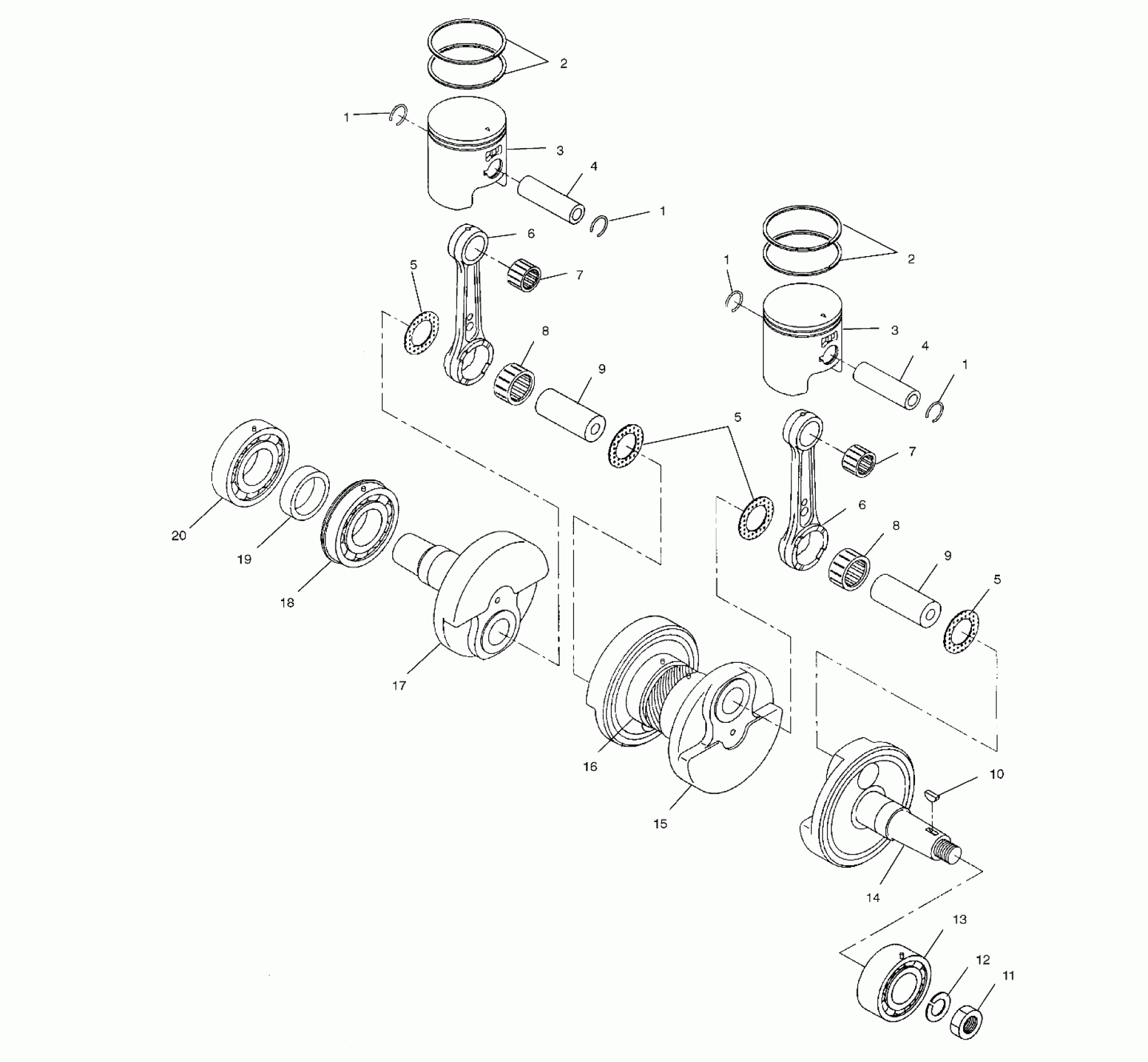

Polaris XCF SP - 099SX4FS PISTON and CRANKSHAFT - 099SX4FS (4953375337c005) Diagram

#

Description
Price

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

2

RING,PISTON (Standard)

3086392

$33.32

2

RING,PISTON (Standard)

3086392

$33.32

3

PISTON (Incl. 1)(Standard)

3086391

Unavailable

3

PISTON (Incl. 1)(Standard)

3086391

Unavailable

4

Pin, Piston

3083849

$19.83

4

Pin, Piston

3083849

$19.83

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

ROD, CONNECTING

3240083

$1,634.99

6

ROD, CONNECTING

3240083

$1,634.99

7

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

7

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

8

BEARING-END,LARGE

3086390

$1,634.99

8

BEARING-END,LARGE

3086390

$1,634.99

9

Pin, Crank, 2

3083456

Unavailable

9

Pin, Crank, 2

3083456

Unavailable

10

KEY Substituted by 3081543

3080130

Unavailable

11

NUT

3083093

$19.99

12

WASHER-SPRING(10)

3083094

$3.17

13

BEARING, BALL

3084681

Unavailable

14

CRANKSHAFT (Incl. 5-6,8,9,13-20)

3086389

$1,684.99

14

CRANKSHAFT #1,MAG SIDE (Mag End)

3085673

$404.99

15

CRANKSHAFT #2 (Incl. 9)

3085674

$694.99

16

BEARING, BALL

3084586

$44.99

17

CRANKSHAFT #3,PTO SIDE (PTO End)

3085675

Unavailable

18

BEARING,BALL

3085753

$64.99

19

SPACER

3085677

$11.99

20

BEARING,BALL

3085754

$64.99
