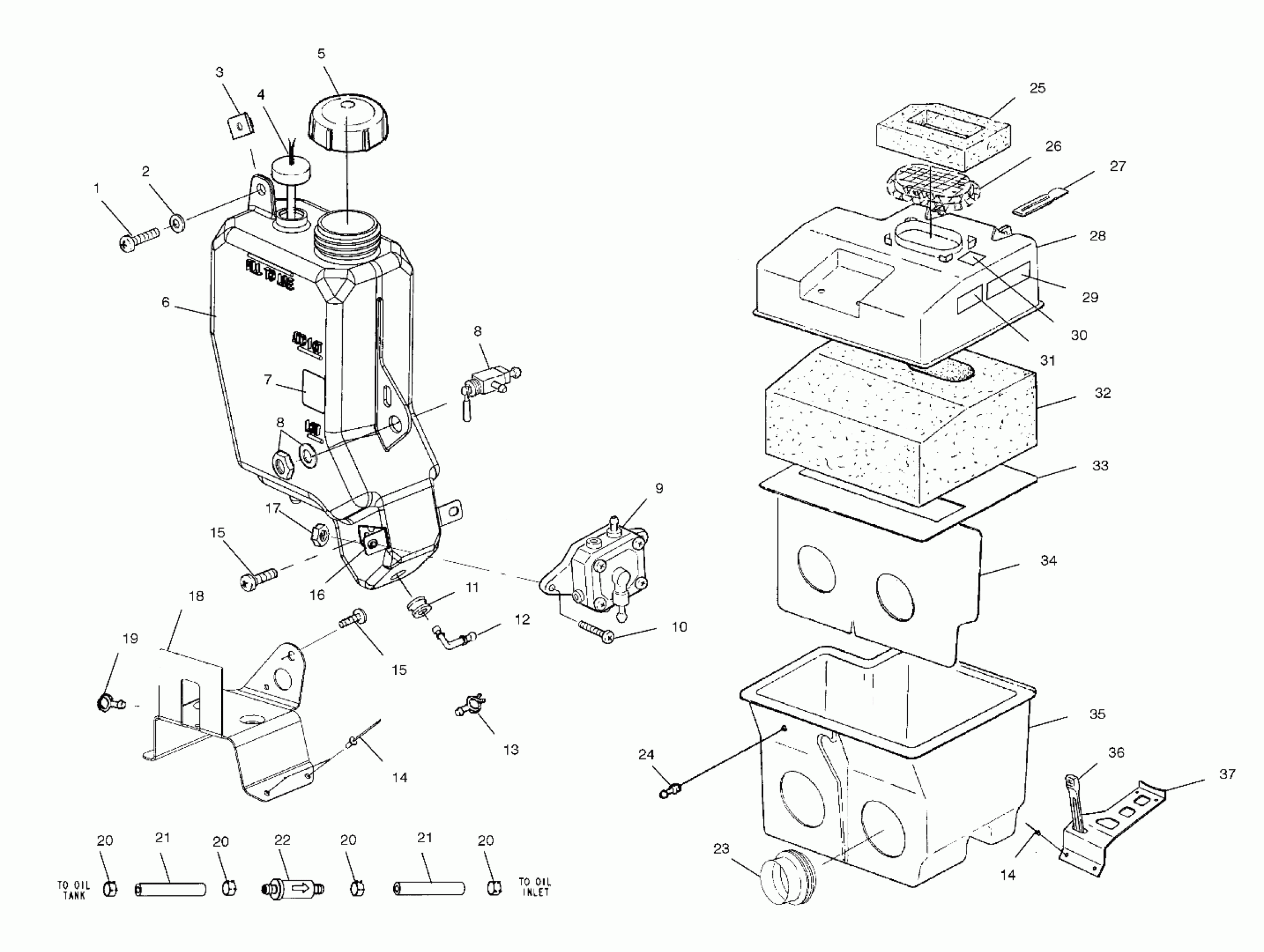

Polaris XCF SP - 099SX4FS OIL TANK/AIR BOX - 099SX4FS (4953375337c002) Diagram

#

Description
Price

1

BOLT(10)

7512276

$4.79

2

WASHER,WROUGHT(10)

7558302

$1.59

3

Nut

7670096

$1.59

4

SENSOR,OIL LEVEL

4110134

$72.84

5

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

6

TANK, OIL Substituted by 2201504

5432929

Unavailable

7

DECAL,FUEL SHUT-OFF

7077442

Unavailable

8

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C1, Ref.24)

-------

Unavailable

8

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C1, Ref.24)

-------

Unavailable

9

Pump, Fuel (See Fuel Pump Pg. C8, Ref.3)

-------

Unavailable

10

Screw

7517264

$3.99

11

GROMMET-TANK FITTING(10)

7052028

$6.39

12

FTTNG,90 D.PRESS-ON

7052208

$6.39

13

CLIP,TWIST LOCK

7080745

$2.23

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

SCREW(10)

7517615

$3.19

15

SCREW(10)

7517615

$3.19

16

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

17

NUT-LOCK(10)

7542122

$1.49

18

BRKT,OIL/COOL.TANK,ALUM

5242688

Unavailable

19

CLIP, PLASTIC(10)

4020139

$4.79

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

21

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

22

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

23

BOOT,CARB

5411665

Unavailable

24

FITTING,HOSE(10)

7052127

$3.19

25

FOAM,AIRBOX,CHIMNEY,HYB.

5811606

Unavailable

26

MESH-WIRE,FORMED

5243219

Unavailable

27

RETAINER-TAB,(10)

5411075

Unavailable

28

SILENCER,TOP

5432881

$17.43

29

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

30

DECAL,CAUTION,AIRBOX

7075351

Unavailable

31

DECAL, GREASING [No Longer Available]

7073426

$7.27

32

FOAM,AIRBOX,TOP,INTERNAL

5811564

Unavailable

33

PLATE,SILENCER INTAKE

5850134

Unavailable

34

PLATE,SILENCER,INTAKE,VERT.

5850139

$10.71

35

SILENCER-INTAKE,DRILLED

5433373

$28.57

36

STRAP,TIE-DOWN

5411129

$8.89

37

BRKT,SIL.MOUNT,LOW Substituted by 5243729

5241691

Unavailable
