FRONT TORQUE ARM - 099SX4FS (4953375337b010)

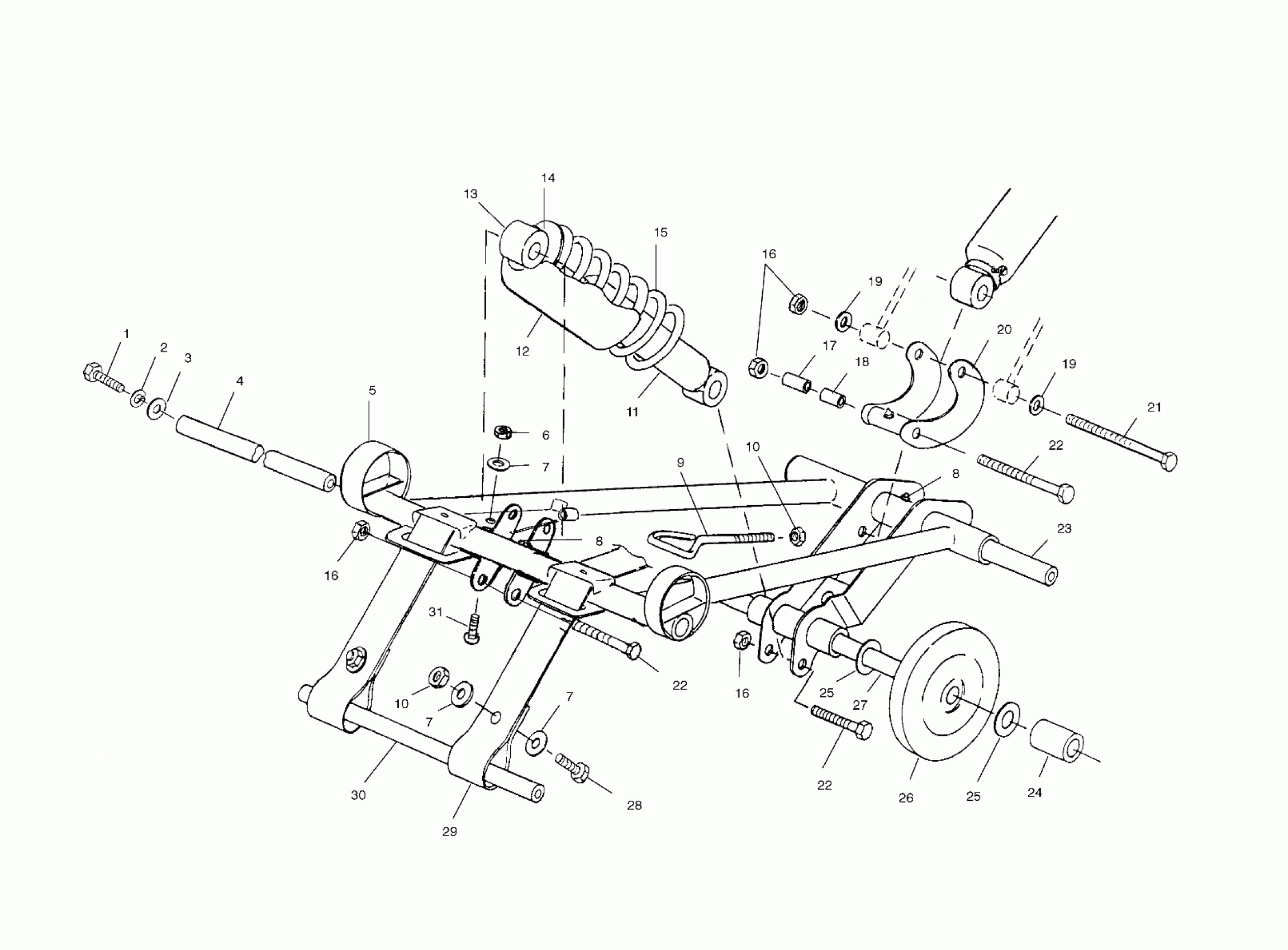

Polaris XCF SP - 099SX4FS FRONT TORQUE ARM - 099SX4FS (4953375337b010) Diagram
#
Description
Price
1
SCREW,(10)
7517247
$3.19
2
WASHER(10)
7552603
$1.49
3
WASHER(10) Substituted by 7555893
7555983
Unavailable
4
Shaft
5131450
Unavailable
5
ARM,FR.TORQUE,X-10,QA,BLK Substituted by 1541466-067
1541203-067
Unavailable
6
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
7
WASHER(10)
7555716
$1.59
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
8
ZERK,FITTING,THREADED(10)
7080433
$1.49
9
BOLT,EYE
7010050
Unavailable
10
NUT,NYLOC,(10)
7542344
$3.99
10
NUT,NYLOC,(10)
7542344
$3.99
11
RETAINER,SPRING Substituted by 5245067
5241276-067
Unavailable
12
SHIELD-SPRING
5430671
$24.27
13
SHOCK,F.TRK,X-10,FX
7041596
Unavailable
14
RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618
5630580
Unavailable
15
SPRING,BLACK,COMP.
7041253-067
$95.22
16
NUT LOCK(10)
7542411
$3.19
16
NUT LOCK(10)
7542411
$3.19
16
NUT LOCK(10)
7542411
$3.19
17
Spacer
5333028
$1.59
18
BUSHING,PIVOT TUBE
5020561
$1.59
19
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
19
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
20
ARM,SHOCK
1540942-067
Unavailable
21
BOLT(10)
7515472
$2.39
22
BOLT(10)
7515438
$4.79
22
BOLT(10)
7515438
$4.79
22
BOLT(10)
7515438
$4.79
23
Shaft (See Footnote) (See Suspension Pg. B8, Ref. 20)
-------
Unavailable
24
SPACER, OUTER
5332784
Unavailable
25
MACHINERY BUSHING(10)
7556301
$3.19
25
MACHINERY BUSHING(10)
7556301
$3.19
26
Wheel, Bogie (See Footnote) (See Rail Mounting Suspension Pg. B9, Ref. 21)
-------
Unavailable
27
Shaft (See Footnote) (See Suspension Pg. B8, Ref. 18)
-------
Unavailable
28
SCREW ,(10)
7517313
$4.79
29
STRAP,LIMITER,FRONT
5411045
Unavailable
30
Shaft, Pivot Arm (See Footnote) (See Suspension Pg. B8, Ref. 17)
-------
Unavailable
31
BOLT(10)
7512377
$4.79
