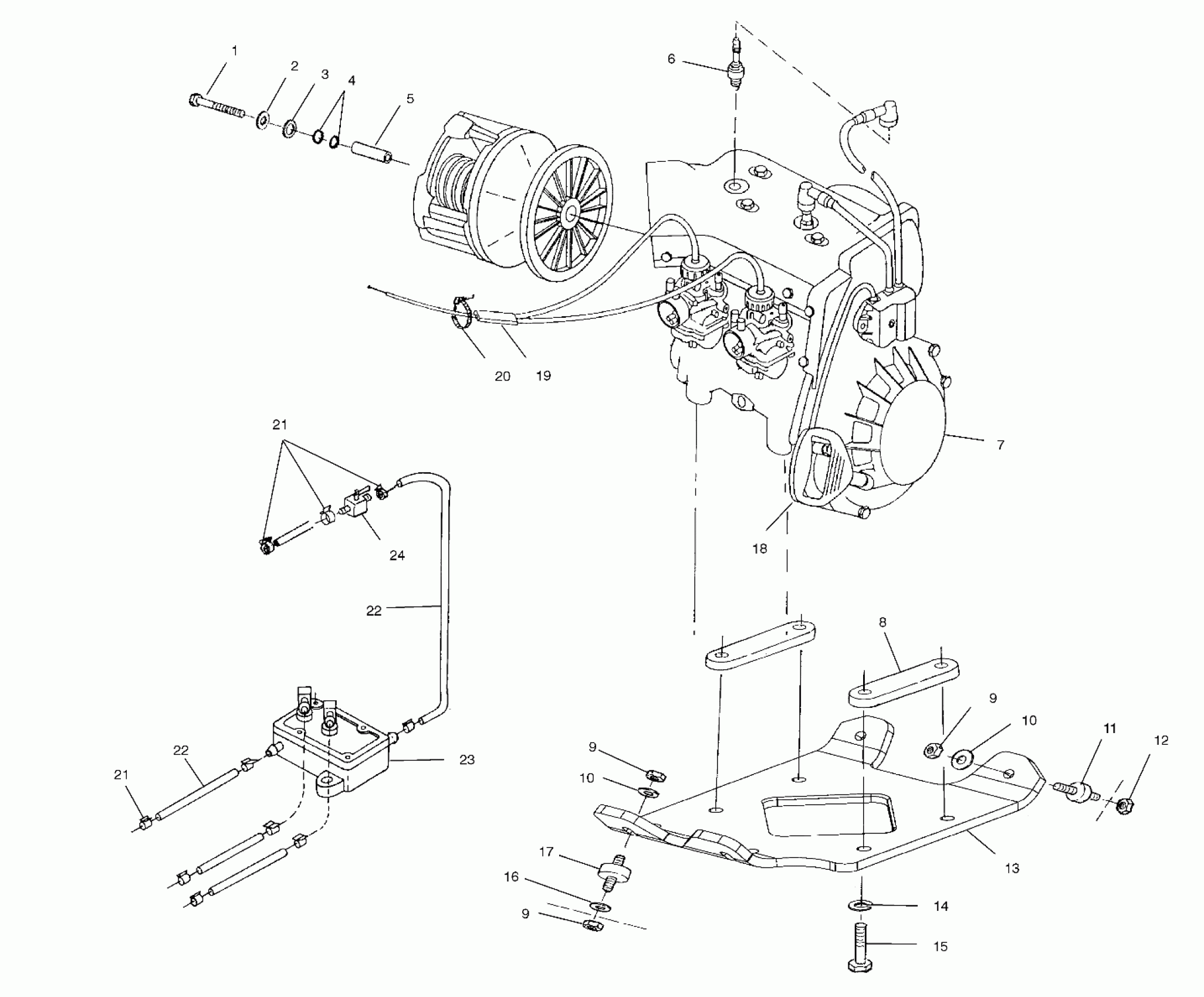

Polaris XCF SP - 099SX4FS ENGINE MOUNTING - 099SX4FS (4953375337c001) Diagram

#

Description
Price

1

SCREW Substituted by 7517776

7517529

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARK PLUG-NGK BR9ES

3070163

$3.99

7

ENG.(S.B.)EC45PM020 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft asm. Prior authorization is required

3085944

Unavailable

8

SPACER-ENGINE,.50

5243195

$61.99

9

NUT,FLEXLOCK,(10)

7547008

$6.39

9

NUT,FLEXLOCK,(10)

7547008

$6.39

9

NUT,FLEXLOCK,(10)

7547008

$6.39

10

WASHER(10)

7555893

$1.49

10

WASHER(10)

7555893

$1.49

11

MOUNT,ENGINE Substituted by 3021099

3110072

$28.32

12

NUT,(10)

7547022

Unavailable

13

PLATE-MOTOR MOUNT

5132001

$119.99

14

WASHER LOCK(10)

7553101

$3.99

15

BOLT,(10)

7517442

$6.39

16

WASHER,FLAT(10)

7555915

$3.19

17

MOUNT,ENGINE

3110062

Unavailable

18

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

19

CABLE-THROTTLE

7080776

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

22

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

23

Asm., Fuel Pump (See Fuel Pump Pg. C8, Ref. 3)

-------

Unavailable

24

VALVE,FUEL SHUT-OFF,FAN

7052219

Unavailable
