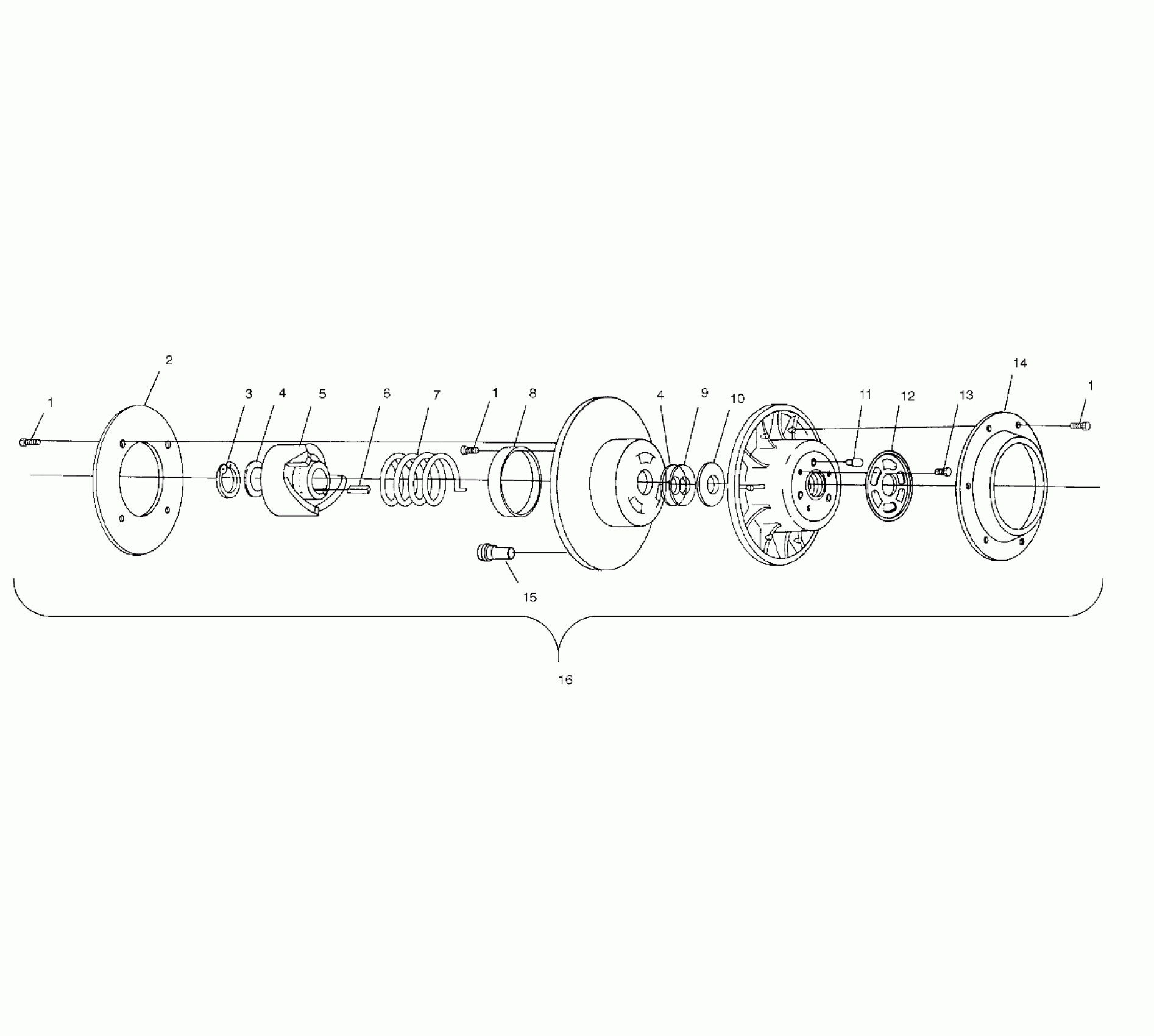

Polaris XCF SP - 099SX4FS DRIVEN CLUTCH - 099SX4FS (4953375337b013) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE-DRIVEN,VENTED

5243158

$131.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10) (.03)

7556804

$1.49

4

WASHER(10) (.03)

7556804

$1.49

5

RAMP,DRIVEN,R32,MACH

5131623

Unavailable

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,SVR.

7041499

$56.65

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10) (.02)

7555898

Unavailable

10

WASHER,DRIVE CLUTCH(10) (.075)

7555865

$6.39

11

PIN, CLUTCH

5020653

$34.99

12

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

13

SCREW(10)

7515133

$3.99

14

CAP-DRIVEN,VENTED

5243157

Unavailable

15

BUTTON-RAMP,(10)

5430466

$6.46

16

ASM-CLUTCH,DVN,R32,1375,VENTED Substituted by 1321925 (Incl. 1-15)

1321845

Unavailable
