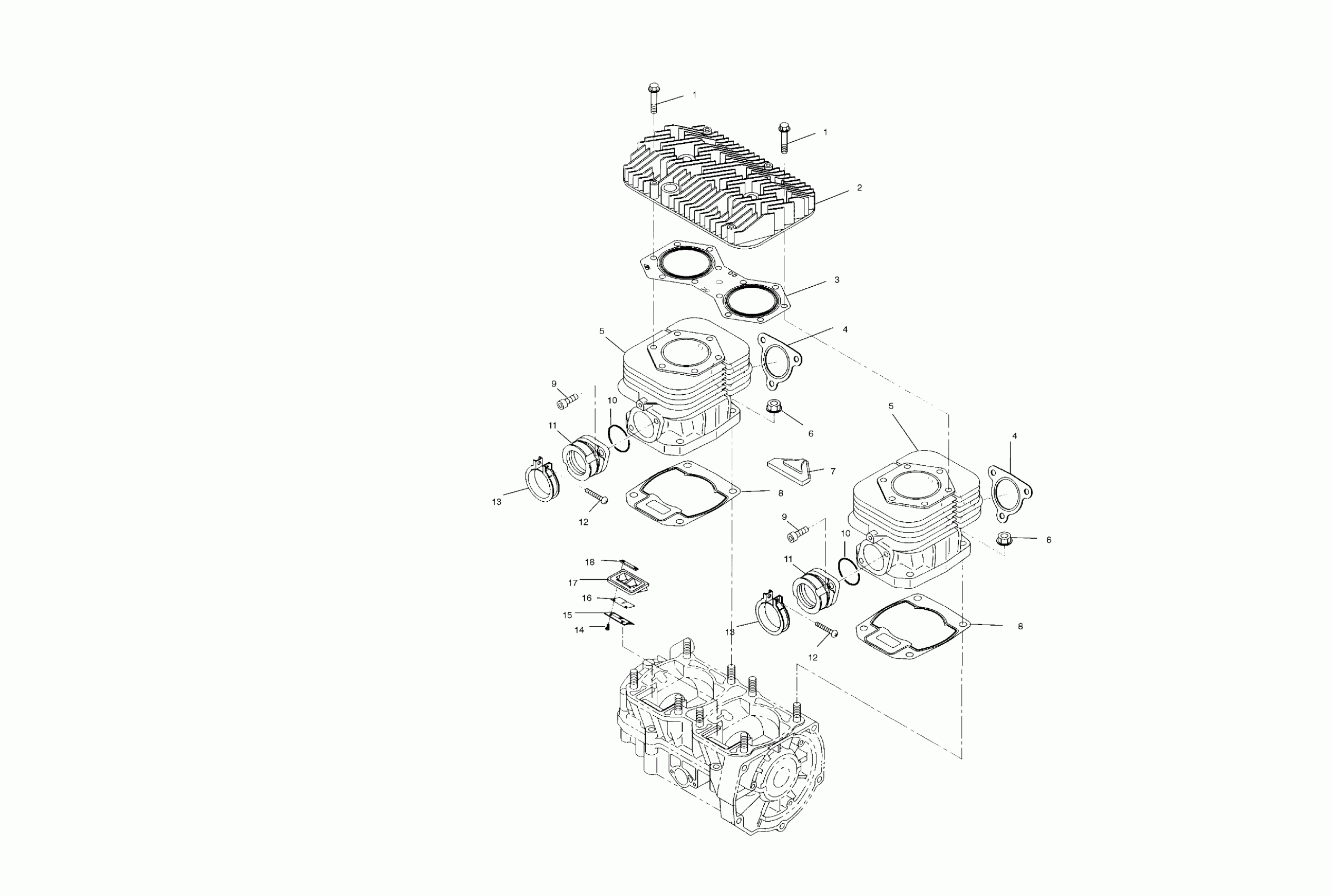

Polaris XCF SP - 099SX4FS CYLINDER - 099SX4FS (4953375337c004) Diagram
#
Description
Price
1
BOLT, FLANGE
3084271
Unavailable
1
BOLT, FLANGE
3084271
Unavailable
2
CYLINDER,HEAD
3086385
$236.17
3
GASKET,HEAD
3085668
$43.39
4
GASKET,EXHAUST
3085714
$29.99
4
GASKET,EXHAUST
3085714
$29.99
5
CYLINDER Substituted by 3086974
3086384
Unavailable
5
CYLINDER Substituted by 3086974
3086384
Unavailable
6
NUT-FLANGE(10)
3082911
$1.99
6
NUT-FLANGE(10)
3082911
$1.99
7
COVER,CYL.BAFFLE
3085692
$24.27
8
GASKET,CYLINDER
3085666
Unavailable
8
GASKET,CYLINDER
3085666
Unavailable
9
Bolt, Allen
3081330
$3.99
9
Bolt, Allen
3081330
$3.99
10
O-RING
3085619
$20.22
10
O-RING
3085619
$20.22
11
ADAPTER (Incl. 10)
3085670
Unavailable
11
ADAPTER (Incl. 10)
3085670
Unavailable
12
SCREW,(10)
3081497
$2.39
12
SCREW,(10)
3081497
$2.39
13
BAND ASM. (Incl. 12)
3083166
$19.84
13
BAND ASM. (Incl. 12)
3083166
$19.84
14
SCREW & WASHER ASM.
3085717
$4.75
15
STOPPER
3086387
$12.94
16
VALVE, REED
3085715
$8.89
17
VALVE,REED (Incl. 14-18)
3086386
$60.70
18
PLATE Substituted by 3085718
3086388
Unavailable
