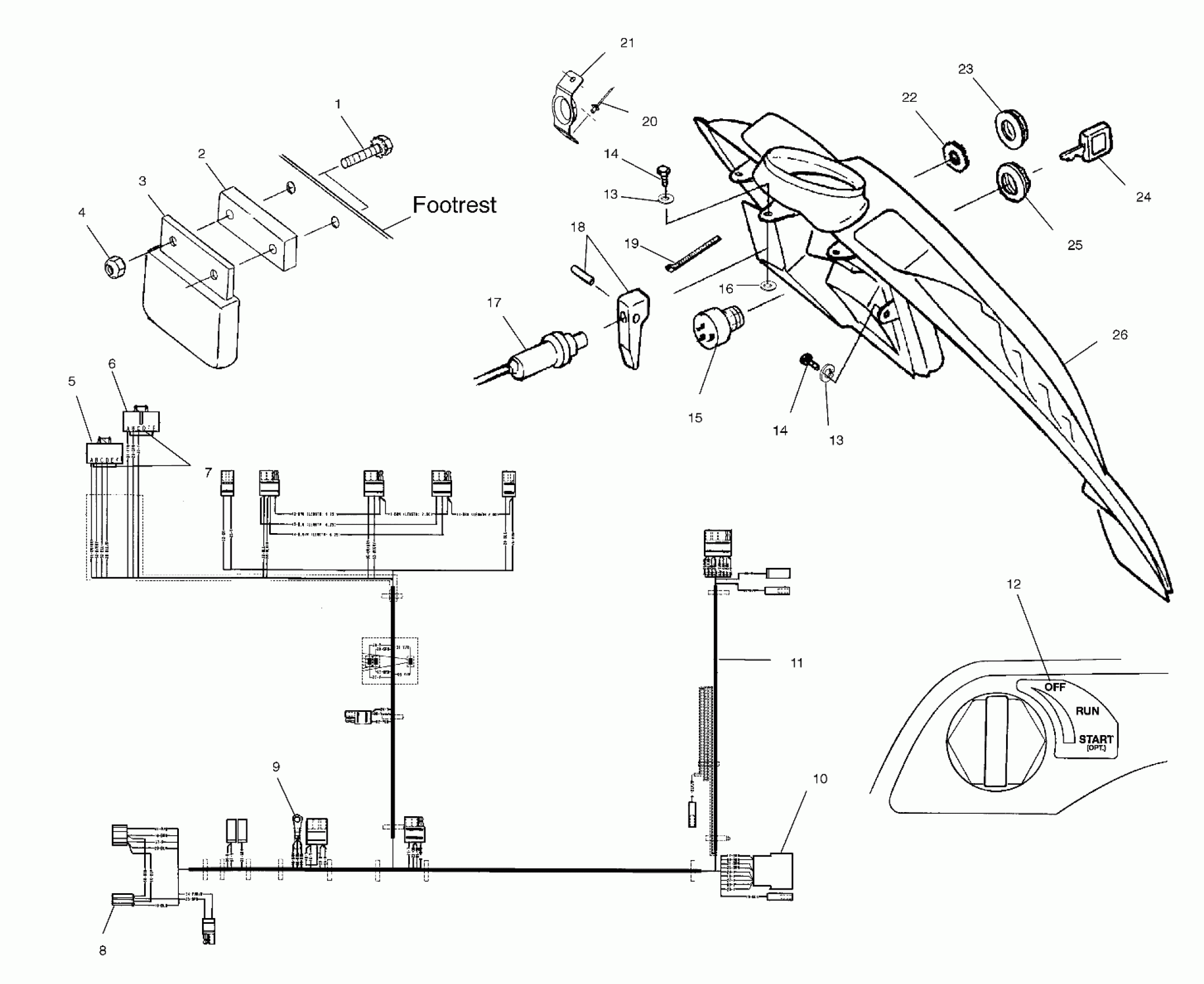

Polaris XCF SP - 099SX4FS CONSOLE - 099SX4FS (4953375337a013) Diagram
#
Description
Price
1
BOLT(10)
7512031
$2.23
2
SPACER,REGULATOR
5211573
Unavailable
3
REGULATOR,(14.3VAC),LR-7
4060123
Unavailable
4
NUT(10)
7541925
$1.49
5
HOUSING-CONNECTOR,PAC#12064860
4010194
$15.99
6
HOUSING-CONNECTOR,PAC#12186213
4010193
$8.79
7
SOCKET-PACKARD#12047767
4010192
Unavailable
8
HOUSING
4020063
$3.19
9
Terminal, Ring
4020092
Unavailable
10
Housing w/Receptacle
4020057
$3.51
11
HARNESS-MAIN,GEN 2 COMMON
2460733
$206.39
12
DECAL,CONSOLE,IGNITION
7077367
Unavailable
13
WASHER(10)
7558203
$3.19
13
WASHER(10)
7558203
$3.19
14
SCREW(10)
7517441
$2.39
14
SCREW(10)
7517441
$2.39
15
SWITCH,IGN.(E/S) Substituted by 2200358
2410010
Unavailable
16
WASHER,NYLON
7555932
$2.39
17
Cable, Choke Control (Incl. 18,23)
7080290
$105.22
18
KIT,CHOKE LEVER (Incl. Pin)
2201439
$24.27
19
CABLE TIE-RELEASABLE,5 1/2"(10)
7080804
$3.22
20
RIVET, POP(50)
7621330
$1.49
21
GUIDE-RECOIL
5243049
$9.70
22
WASHER-LOCK(10)
7571610
$3.99
23
NUT,CHOKE
5432944
$8.79
24
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid
5410611
Unavailable
25
NUT,IGNITION
7547035
$8.79
26
CONSOLE,HYB,XC,BLK Substituted by 5433693
5432892
Unavailable
