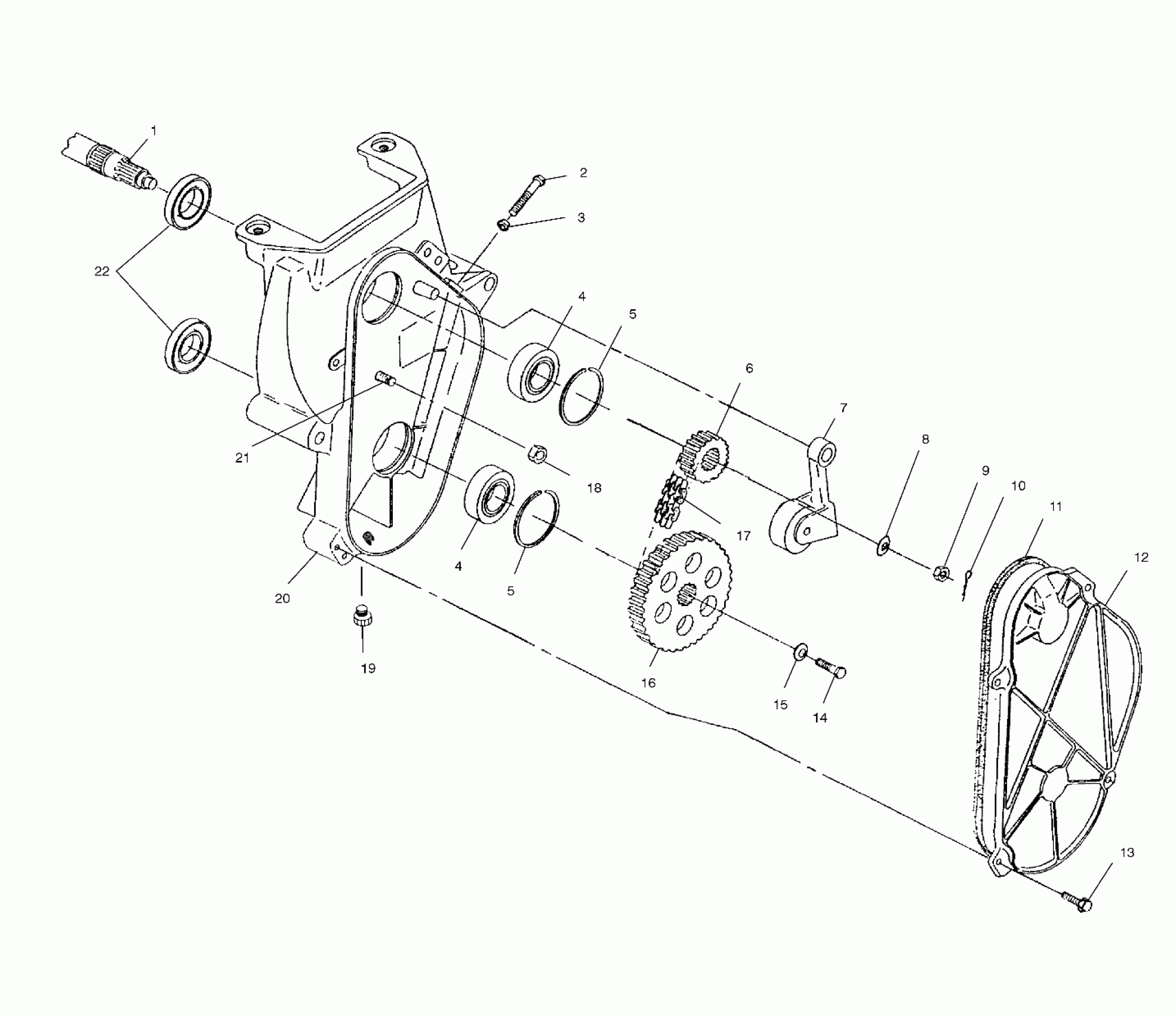

Polaris XCF SP - 099SX4FS CHAINCASE - 099SX4FS (4953375337b006) Diagram
#
Description
Price
1
Asm., Jackshaft (See Footnote) (See Drive Train Pg. B7, Ref. 16)
-------
Unavailable
2
SCREW(10)
7515551
$6.39
3
NUT(10)
7542404
$1.59
4
BEARING,BALL
3514309
$15.87
4
BEARING,BALL
3514309
$15.87
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
5
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
6
SPKT,20T,3/4W,15 SPL,HV,PM (3/4W)
3221096
$49.99
7
PIN,CHAIN TIGHTENER
7662210
Unavailable
7
BEARING
3553002
$11.99
7
WHEEL,C/C IDLER
5630123
Unavailable
7
WASHER THRUST(10)
7558702
$1.59
7
TIGHTENER,CHAINCASE (Incl. following)
1332213
$159.99
8
WASHER, SLOTTED(10)
7571620
$7.19
9
NUT
7542811
Unavailable
10
COTTER PIN(10)
7661401
$1.49
11
GASKET-CHAINCASE
5410277
$24.99
12
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
13
SCREW(10)
7512242
$2.39
14
SCREW(10)
7515350
$3.97
15
WASHER(10)
7571618
$6.39
16
SPKT,40T,15T SPL,HYVO,PM (3/4W)
3222099
Unavailable
17
CHAIN,HYVO 66 P,3/4W (3/4W)
3221113
$124.99
18
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
19
PLUG(10)
7052115
$5.65
20
CHAINCASE-W/RATCHET MNT
5131568
Unavailable
21
BOLT(10)
7515477
$34.99
22
SEAL-OIL
3610030
$20.22
