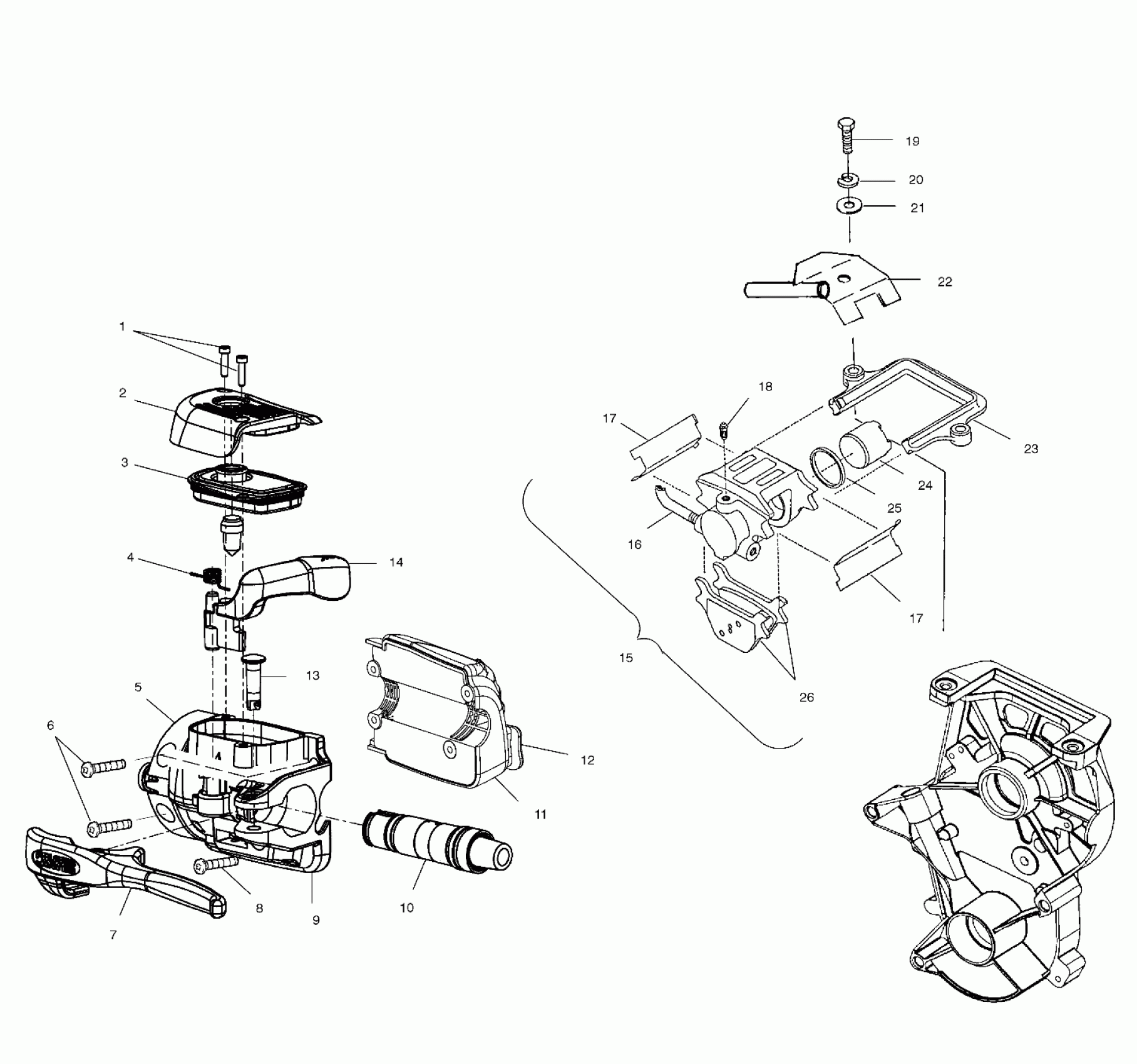

Polaris XCF SP - 099SX4FS BRAKE - 099SX4FS (4953375337a014) Diagram
#
Description
Price
1
KIT,COVER SCREW,(HAYES)
2201254
$19.99
2
KIT,COVER ASM,(HAYES) (Incl. 1,3)
2201255
$89.03
3
GASKET
-------
Unavailable
4
KIT,PARKLEVER SPRING
2201250
$24.27
5
MASTERCYL ASM,HAYES,5/8 Substituted by 2010209 (Incl. 2,4,7,9,10,13)
2050087
$304.98
6
SCREW(10)
7517441
$2.39
7
KIT,LEVER&PIVOT PIN,(HAYES) Substituted by 2201569
2201253
Unavailable
8
SCREW(10)
7517566
$3.99
9
KIT,CLAMP BODY/RESERVOIR KIT Substituted by 2201948
2201249
$304.98
9
SWITCH,BRAKE LIGHT
4010157
Unavailable
10
KIT,5/8" CARTRIDGE SUB-ASM.KIT Substituted by 2201944
2201248
Unavailable
11
CONTROL ASM,LH,(BASIC)
2010167
$93.08
12
BUTTON SWITCH HI/LO
5433291
Unavailable
13
KIT,PIVOT PIN,(HAYES) Substituted by 2201946
2201252
Unavailable
14
KIT,PARKLEVER & SPRING (Incl. 4)
2201251
$44.51
15
BRAKE CALIPER,HYBRID,AIR (Incl. 24,25,26)
1910350
Unavailable
16
LINE-BRAKE,HYBRID
1910313
Unavailable
17
KIT,CLIP SPRING (Qty. 2)
2200467
Unavailable
17
KIT,CLIP SPRING (Qty. 2)
2200467
Unavailable
18
KIT, INLET
1930735
$9.11
19
BOLT(10)
7515521
$3.99
20
WASHER(10)
7552603
$1.49
21
WASHER(10)
7555806
$1.49
22
ROPE GUIDE,CC-Z
1012849
$66.39
23
KIT,CALIPER BRKT.
1930733
Unavailable
24
KIT, PISTON SEAL (Incl. 25)
1930734
Unavailable
25
SEAL
2200466
$32.37
26
KIT,BRAKE,PAD TYPE 81(LARGE)
2201430
Unavailable
26
KIT,BRAKE,PAD TYPE 81(SMALL) (Incl. 17)
2201429
Unavailable
