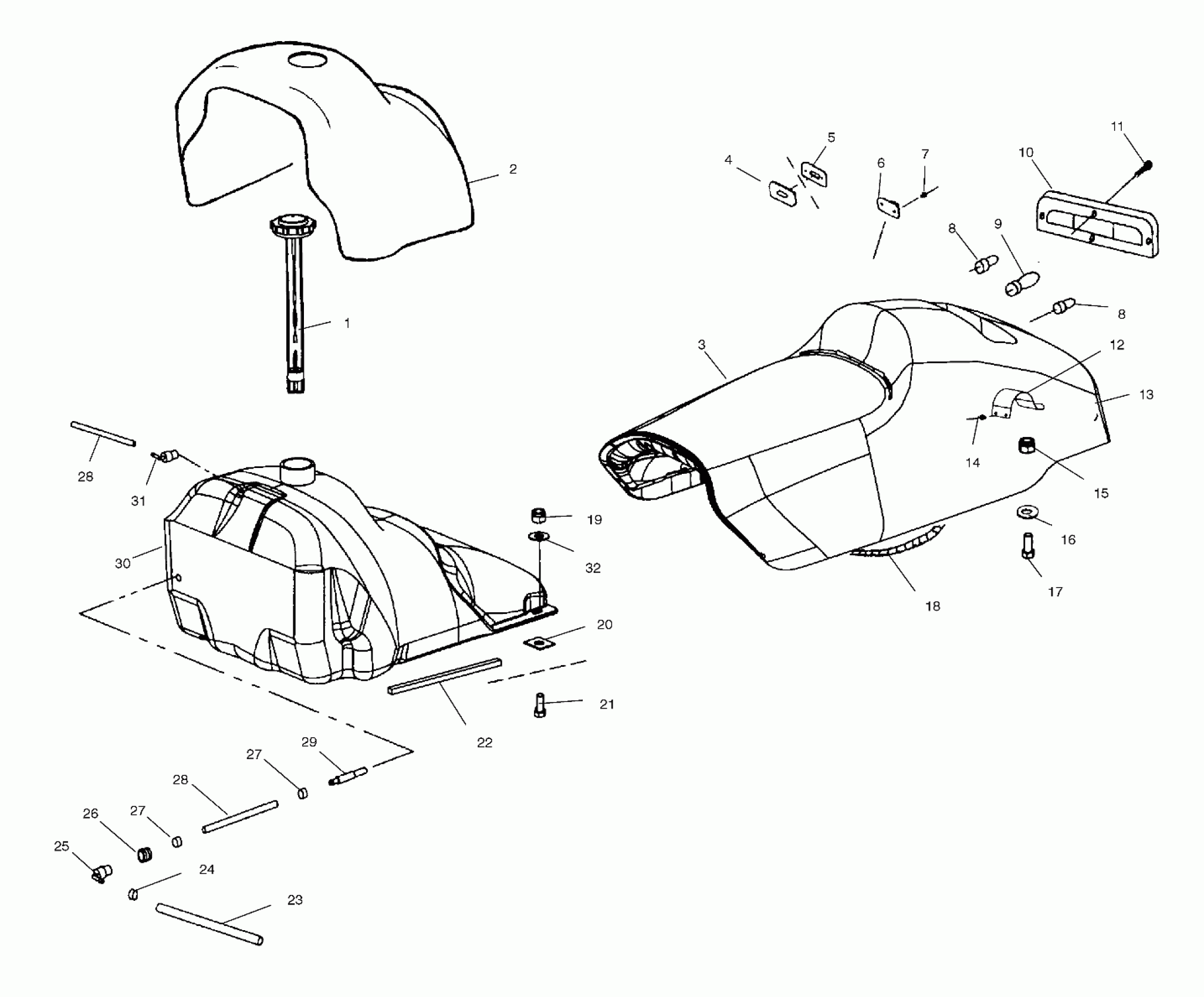

Polaris XCF EDGE - S00NX4FS SEAT AND GAS TANK - S00NX4FS (4956165616A006) Diagram

#

Description
Price

1

CAP ASM,FUEL,BLK

2511195-070

Unavailable

2

COVER,ASM,TANK,EDGE Substituted by 2682821

2682571

Unavailable

3

SEAT,ASM,EDGE RACER (Incl. 3-13,18)

2682573

Unavailable

3

COVER,ASM,SEAT,EDGE RACER

2682578

Unavailable

4

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

5

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

6

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

7

RIVET(50)

7621337

$1.49

8

BULB,TAILLIGHT(10)

4030024

$4.84

8

BULB,TAILLIGHT(10)

4030024

$4.84

9

Bulb, Brakelight

4030045

Unavailable

10

LENS,TAILLIGHT

5430423

Unavailable

11

SCREW(10)

7511840

Unavailable

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

HOUSING-TAILLIGHT

5433341

Unavailable

14

RIVET(50)

7621472

$1.49

15

NUT,WELD,TAB 1/4-20T-L0K

7547114

$2.63

16

WASHER(10)

7558301

$1.49

17

SCREW(10)

7512242

$2.39

18

Harness, Taillight

2460399

Unavailable

19

NUT-LOCK(10)

7542122

$1.49

20

SPEED NUT(10)

7670021

$6.99

21

BOLT(10)

7512193

$2.39

22

PAD-GAS TANK

5810063

$4.95

23

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FITTING,1/4" 90� DEX

7052259

Unavailable

26

GROMMET-TANK FITTING(10)

7052028

$6.39

27

RING, COMPRESSION(10)

7080402

$1.60

27

RING, COMPRESSION(10)

7080402

$1.60

28

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

28

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

29

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

30

TANK,FUEL EDGE,TRANSLUCENT ASM. (Incl. 29-31)

2520170

Unavailable

31

FITTING,90 DEG,1/8,(10)

7052095

$4.79

32

WASHER(10)

7555960

$3.99
