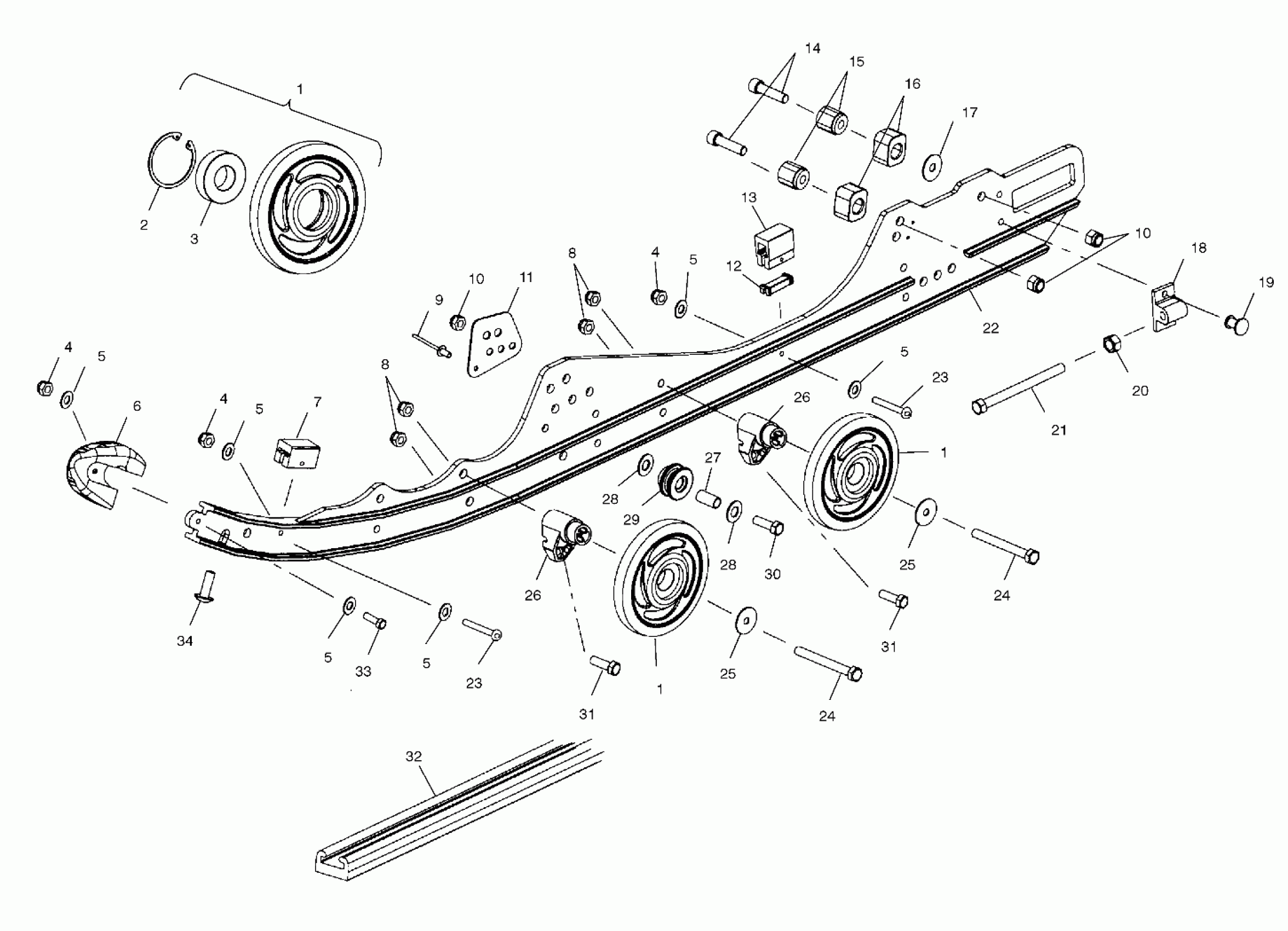

Polaris XCF EDGE - S00NX4FS RAIL MOUNTING (SUSPENSION) - S00NX4FS (4956165616B009) Diagram

#

Description
Price

1

WHEEL,ADM,INDY RED (Incl. 2,3)

1590275-293

$48.56

1

WHEEL,ADM,INDY RED (Incl. 2,3)

1590275-293

$48.56

1

WHEEL,ADM,INDY RED (Incl. 2,3)

1590275-293

$48.56

2

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

3

BEARING (1 per Wheel)

3514303

$11.99

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

5

WASHER(10)

7555783

$3.99

5

WASHER(10)

7555783

$3.99

5

WASHER(10)

7555783

$3.99

5

WASHER(10)

7555783

$3.99

5

WASHER(10)

7555783

$3.99

5

WASHER(10)

7555783

$3.99

6

CAP,RAIL TIP Substituted by 5434374

5433735

$20.22

7

BUMPER,JOUNCE FRONT

5521499

$8.89

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

RIVET(50)

7661845

$1.49

10

NUT-LOCK(10)

7542439

$1.49

10

NUT-LOCK(10)

7542439

$1.49

11

BRKT,RAIL REINF

5244677

$39.98

12

LINER-BUMPER

5432946

$9.70

13

BUMPER,JOUNCE REAR

5521498

$8.89

13

LINER-BUMPER

5432946

$9.70

14

BOLT(10)

7515537

$10.99

15

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

16

BUMPER,F.PIVOT ARM

5410925

$12.94

17

SPACER,1.00X.390X.105 [No Longer Available]

5244371

Unavailable

18

BLOCK,IDLER BOLT ADJ,7/16

5132444

$28.32

19

RIVET,(50)

7621501

$2.39

20

NUT-7/16-14-FULL HT.-B

7547145

$1.59

21

SCR,7/16-14X3 3/4XHD

7517773

$28.56

22

RAIL,ASM,121,LH (Incl. 6,7,13,16,18)

1541480

$364.99

22

RAIL,ASM,121,RH (Incl. 6,7,13,16,18)

1541481

$364.99

23

SCREW(10)

7510504

$6.76

23

SCREW(10)

7510504

$6.76

24

BOLT(10)

7515346

$5.59

24

BOLT(10)

7515346

$5.59

25

WASHER(10)

7556083

Unavailable

25

WASHER(10)

7556083

Unavailable

26

MOUNT,WHEEL,MACH

5131314

$53.59

26

MOUNT,WHEEL,MACH

5131314

$53.59

27

Spacer

5332787

Unavailable

28

WASHER(10) Substituted by 7555893

7555983

Unavailable

28

WASHER(10) Substituted by 7555893

7555983

Unavailable

29

ROLLER,SPRING,SQUARE(X10)

5432982

$9.70

30

BOLT(10)

7515415

$1.49

31

BOLT(10)

7515317

$4.79

31

BOLT(10)

7515317

$4.79

32

Slider, XL, Service, Basic

5521571

$36.41

33

SCREW(10)

7511930

$2.39

34

SCREW(10)

7515199

$1.49
