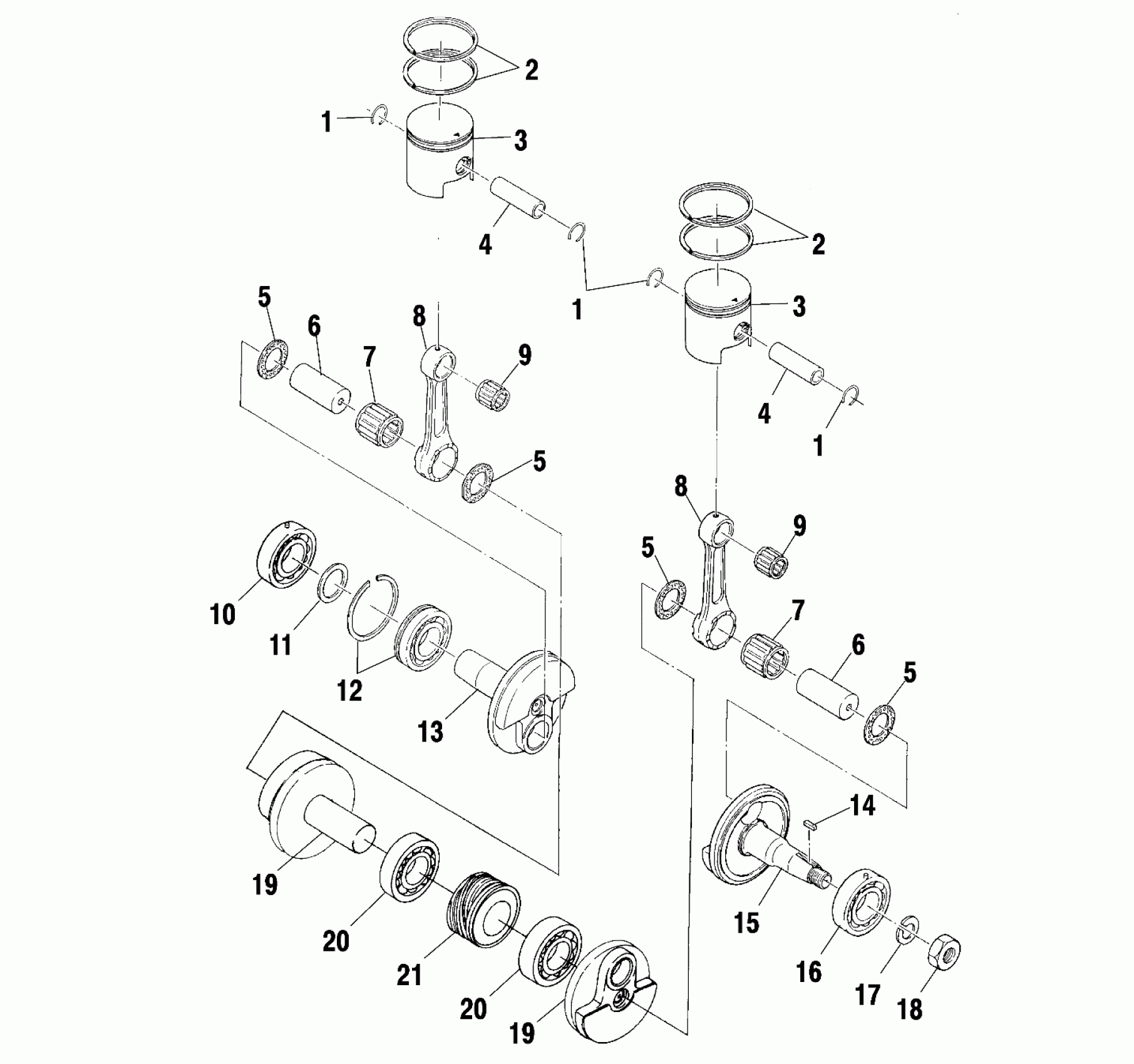

Polaris XCF EDGE - S00NX4FS PISTON and CRANKSHAFT - S00NX4FS (4956165616C010) Diagram

#

Description
Price

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

1

CLIP,(10)

3084167

$6.39

2

RING,PISTON (Standard)

3086392

$33.32

2

RING,PISTON (Standard)

3086392

$33.32

3

PISTON (Standard)

3086391

Unavailable

3

PISTON (Standard)

3086391

Unavailable

4

Pin, Piston

3083849

$19.83

4

Pin, Piston

3083849

$19.83

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

5

SPACER(CRANKPIN)

3083277

$15.99

6

Pin, Crank, 2

3083456

Unavailable

6

Pin, Crank, 2

3083456

Unavailable

7

BEARING-END,LARGE

3086390

$1,634.99

7

BEARING-END,LARGE

3086390

$1,634.99

8

ROD, CONNECTING

3240083

$1,634.99

8

ROD, CONNECTING

3240083

$1,634.99

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

9

BEARING, SMALL END Substituted by 3085595

3083216

$16.57

10

BEARING,BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING,BALL

3085753

$64.99

13

CRANKSHAFT #3,PTO SIDE (PTO End)

3085675

Unavailable

14

KEY Substituted by 3081543

3080130

Unavailable

15

CRANKSHAFT (Incl. 5-8,10-13,15,19,21)

3086389

$1,684.99

15

CRANKSHAFT #1,MAG SIDE (Mag End)

3085673

$404.99

16

BEARING, BALL

3084681

Unavailable

17

WASHER-SPRING(10)

3083094

$3.17

18

NUT

3083093

$19.99

19

CRANKSHAFT #2 (Center)(Incl. 6,21)

3085674

$694.99

19

CRANKSHAFT #2 (Center)(Incl. 6,21)

3085674

$694.99

20

BEARING, BALL

3084586

$44.99

20

BEARING, BALL

3084586

$44.99

21

DRIVEGEAR,OILPUMP

3083780

$107.99
