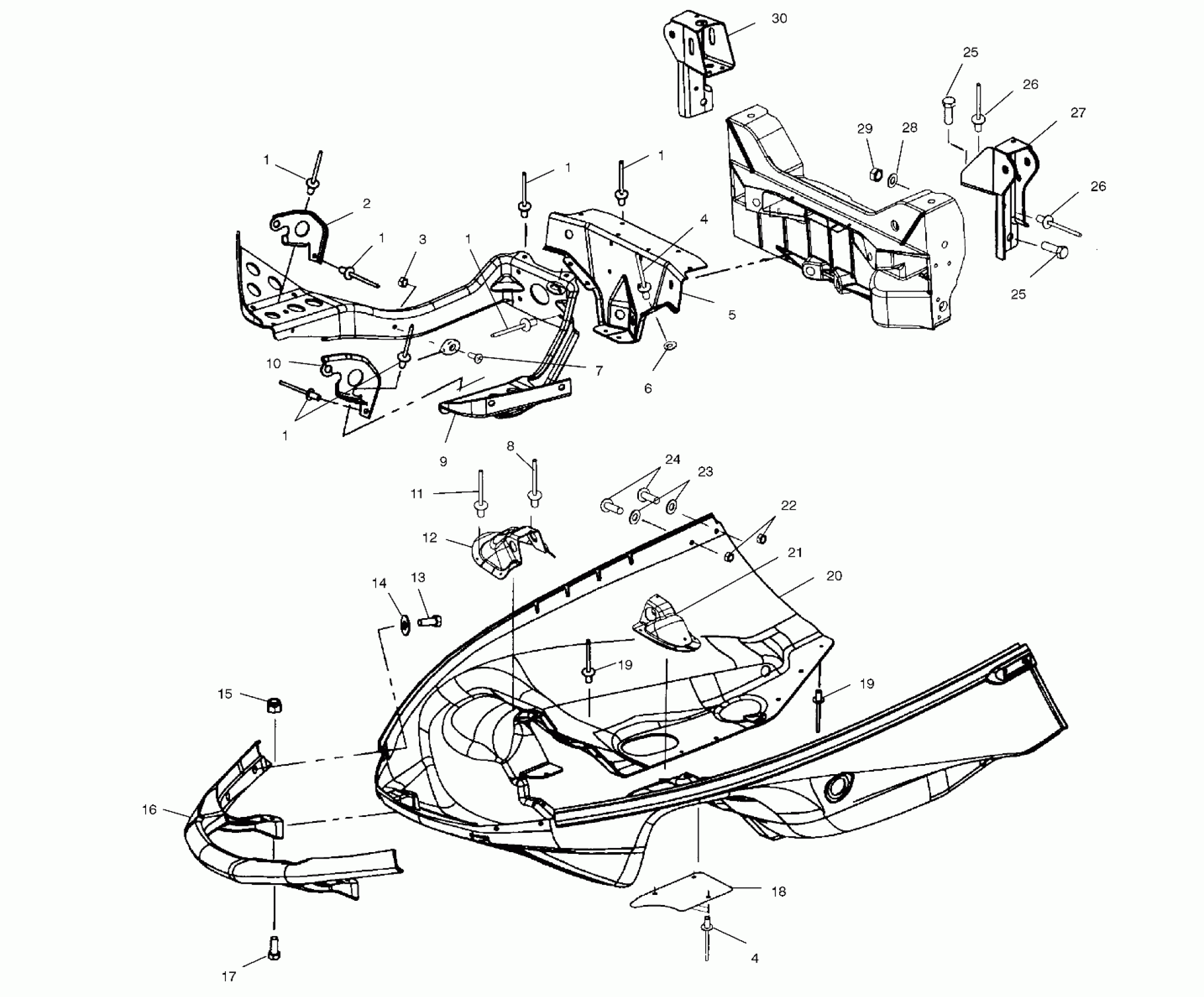

Polaris XCF EDGE - S00NX4FS NOSEPAN - S00NX4FS (4956165616A007) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

HINGE-LOWER PIVOT,RH,BLK

5243992-067

$104.99

3

NUT(10)

7541925

$1.49

4

RIVET(50)

7621472

$1.49

4

RIVET(50)

7621472

$1.49

5

BRKT,RAD.ROD SUPPORT,BLK

5244049-067

Unavailable

6

BURR,RIVET(50)

7555904

$1.49

7

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

8

RIVET(50)

7621462

$1.49

9

BRACE,PAN LOWER

5244050

$137.60

10

HINGE-LOWER PIVOT,LH,BLK

5243991-067

$104.99

11

RIVET(50)

7621479

$1.99

12

COVER,SHOCK TOWER,RH

5433714

$40.72

13

SCREW(10)

7515159

$4.79

14

LOCK WASHER(10)

7552801

$1.59

15

NUT(10)

7542153

$1.59

16

BUMPER,FRONT EDGE,BLK

5433518-070

$64.75

17

SCREW(10)

7512163

$3.99

18

SHIELD-HEAT,NOSEPAN Substituted by 5245853

5243849

$11.51

19

RIVET, BLIND(50)

7621467

$1.49

19

RIVET, BLIND(50)

7621467

$1.49

20

NOSEPAN,GAS ASSIST,IND.RD Substituted by 2202034

5433712-293

Unavailable

21

COVER,SHOCK TOWER,LH

5433713

Unavailable

22

NUT-LOCK(10)

7542122

$1.49

23

WASHER(10)

7555827

$3.99

24

SCREW(10)

7515166

$3.19

25

BOLT(10)

7515440

$3.99

25

BOLT(10)

7515440

$3.99

26

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

26

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

27

SHOCK TOWER,2.5IN,LH,BLK Substituted by 1821029-067

1820838-067

Unavailable

28

WASHER,3/8 FW(10)

7556153

$1.99

29

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

30

SHOCK TOWER,2.5IN,RH,BLK Substituted by 1821030-067

1820839-067

Unavailable
