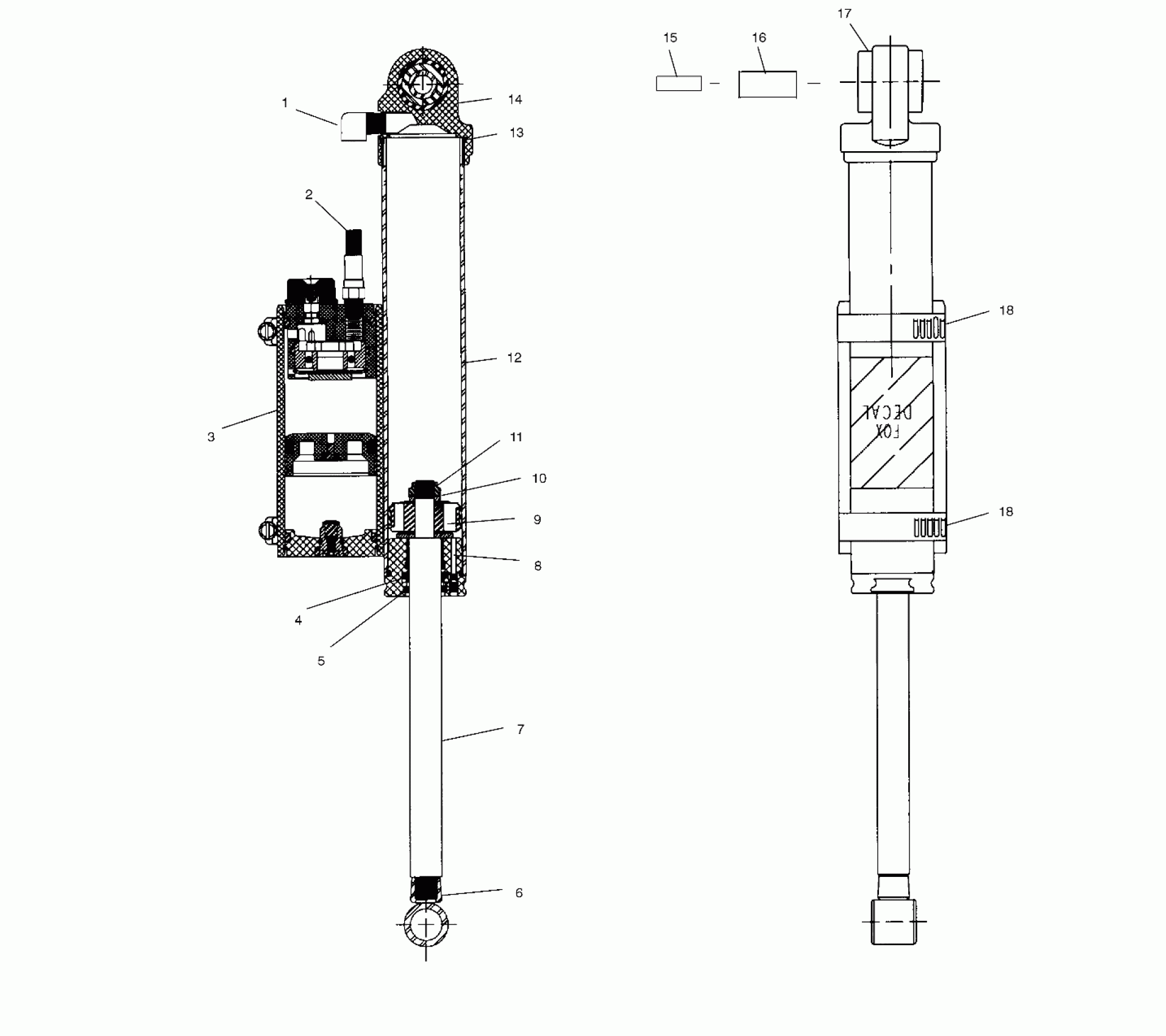

Polaris XCF EDGE - S00NX4FS FOX SHOCK - REAR TRACK AND RESERVOIR - S00NX4FS (4956165616C003) Diagram

#

Description
Price

-

SHOCK-REAR-TRACK,FOX

7041906

$498.99

1

FITTING,ELBOW,90DEG.

1500157

Unavailable

2

HOSE,ASM,3.12 TLG

1500326

Unavailable

3

Asm., Reservoir (See Compression Damping Reservoir Pg. C4)

-------

Unavailable

4

U-Cup

1500256

$19.99

5

WIPER-U-CUP

1500257

Unavailable

6

EYELET-.88W 1.38TLG 808-05-002

1500302

$49.21

7

SHAFT,.62X8.35TLG,1.15SHLG

1500322

$71.99

8

BEARING,ASM,QUAD RING

1500328

$82.92

9

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

10

BUMPER,RUBBER

1500074

$5.65

11

NUT,LOCK

1500016

$12.79

12

BODY,8.67 TLG,.58 THD

1500319

$58.39

13

O-RING,.103W-1.549ID

1500108

$10.99

14

BODY,CAP,ASM.

1500244

$83.79

15

SLEEVE,.38X.56X1.3 TLG Substituted by 5333907

1500327

$15.87

16

SLEEVE,.56X.81X1.28

1500311

Unavailable

17

BUSHING,.35ILG,.63TLG

1500307

$7.99

18

CLAMP,HOSE,3.21-3.25

1500330

$9.52

18

CLAMP,HOSE,3.21-3.25

1500330

$9.52
