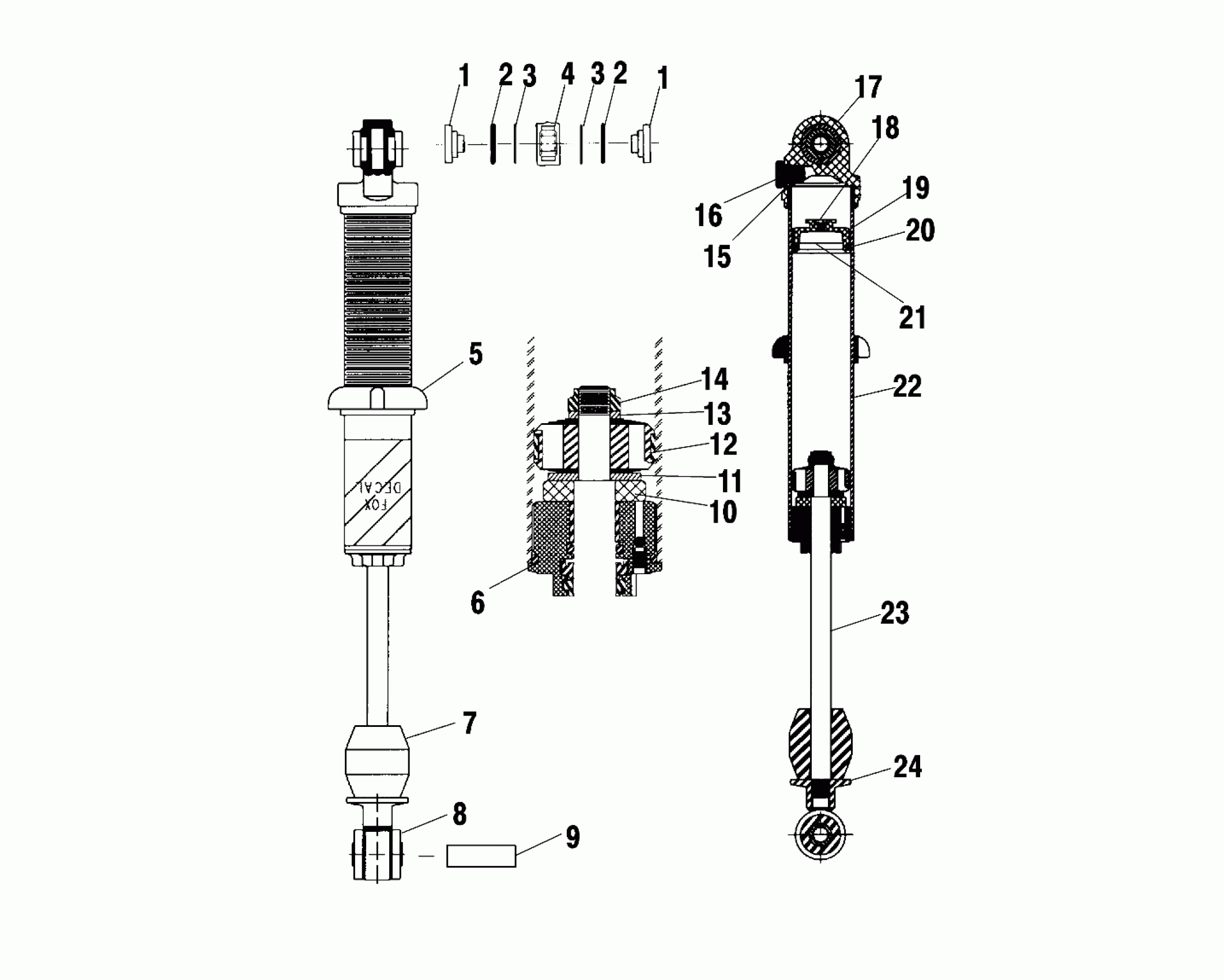

Polaris XCF EDGE - S00NX4FS FOX SHOCK - IFS - S00NX4FS (4956165616C001) Diagram

#

Description
Price

-

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

-

SHOCK-GAS,IFS,IFP,11.02X16

7041838

Unavailable

1

REDUCER,(FOX),(SP)

1500092

Unavailable

1

REDUCER,(FOX),(SP)

1500092

Unavailable

2

RING,SNAP,(FOX SP)

7710446

$6.23

2

RING,SNAP,(FOX SP)

7710446

$6.23

3

O-RING,(FOX),SP

1500093

$7.27

3

O-RING,(FOX),SP

1500093

$7.27

4

BEARING,SPHERICAL

3513506

$64.59

5

RING,SPRING PRELOAD,ADJ

5432304

Unavailable

6

BEARING-ASSEMBLY

1500186

Unavailable

6

O-RING,(10).103W-1.299ID

1500020

$10.63

6

O-RING INNER (10)

1500021

$10.99

6

WIPER.-4300 URETH

1500268

Unavailable

6

U-CUP-4300 URETH,036-01-006

1500266

$24.27

6

Screw

1500070

$6.39

6

BALL, (FOX)

1500071

$6.76

7

BUMPER,JOUNCE

5410855

$39.19

8

BUSHING,EYELET

1500137

$24.99

9

SLEEVE,SHAFT END

5020808

Unavailable

10

Spacer

5431355

$16.79

11

PLATE,TOP OUT

1500017

$20.22

12

DAMPER,PISTONRING,FOX

1500002

$31.99

13

BUSHING,BACKUP

1500015

$6.76

14

NUT,LOCK

1500016

$12.79

15

O-RING,.103W-1.549ID

1500108

$10.99

16

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

16

VALVE ASM,AIR

1500014

$69.99

16

Screw

1500019

$6.39

16

O-RING,OUTER

1500023

$2.84

17

CAP,ASM,BODY

1500316

Unavailable

18

Screw

1500018

$5.56

18

O-RING,DRUM OUTER

1500022

Unavailable

19

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

20

RING,PISTON,FLOATING,FOX

1500006

$19.99

21

PISTON-FLOATING

1500187

$26.98

22

BODY,8.8 TLG,5.5 THD

1500320

Unavailable

23

SHAFT-.498 X 8.7

1500272

$52.79

24

EYELET,1.5 BASE,2.01

1500317

$47.29
