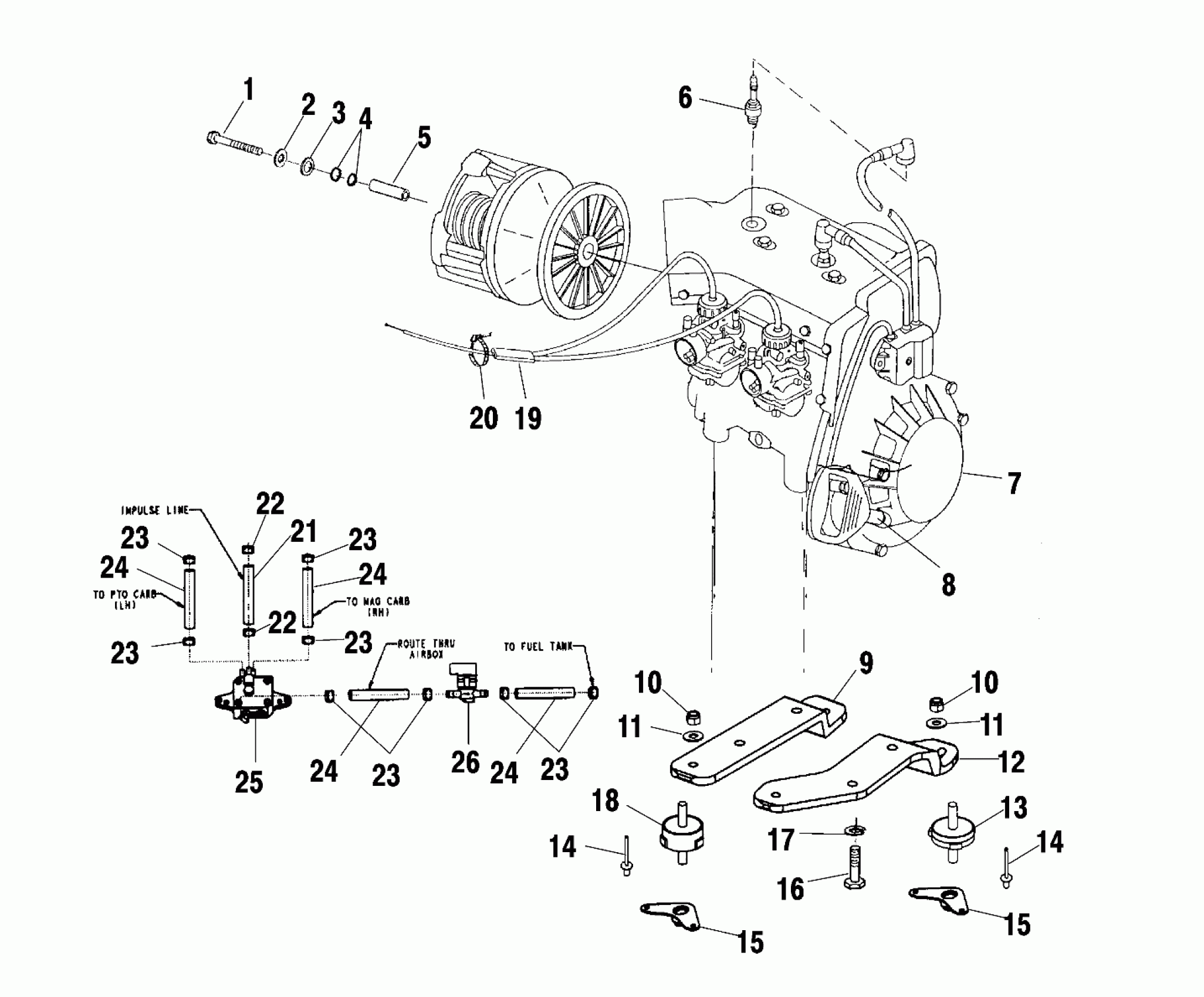

Polaris XCF EDGE - S00NX4FS ENGINE MOUNTING - S00NX4FS (4956165616C005) Diagram

#

Description
Price

1

SCR,7/16-20X8.250HXCP

7517776

$34.99

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARK PLUG-NGK BR9ES

3070163

$3.99

7

ENG.(S.B.)EC45PM020 (EC45PM021)

3085944

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

STRAP,ENG.MNT,LH,XCF EDGE

5244172

$49.59

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

10

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

11

Washer

7556099

$1.59

11

Washer

7556099

$1.59

12

STRAP,ENG.MNT,RH,XCF EDGE

5244173

Unavailable

13

MOUNT-ENGINE,3/8-16,3-TAB

3021101

Unavailable

14

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

14

RIVET,POP,5/32"(50) Substituted by 7621307

7621319

$1.49

15

NUT,PLATE,SUPPORT

1012680

Unavailable

15

NUT,PLATE,SUPPORT

1012680

Unavailable

16

BOLT(10)

7512539

$3.99

17

WASHER LOCK(10)

7553101

$3.99

18

MOUNT-ENGINE,3/8-16,3-TAB

3021097

Unavailable

19

CABLE,THROTTLE

7080916

Unavailable

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

24

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

25

FUEL-PUMP

3086975

Unavailable

26

VALVE-FUEL,PLASTIC,INLINE 1/4"

7052248

$24.27
