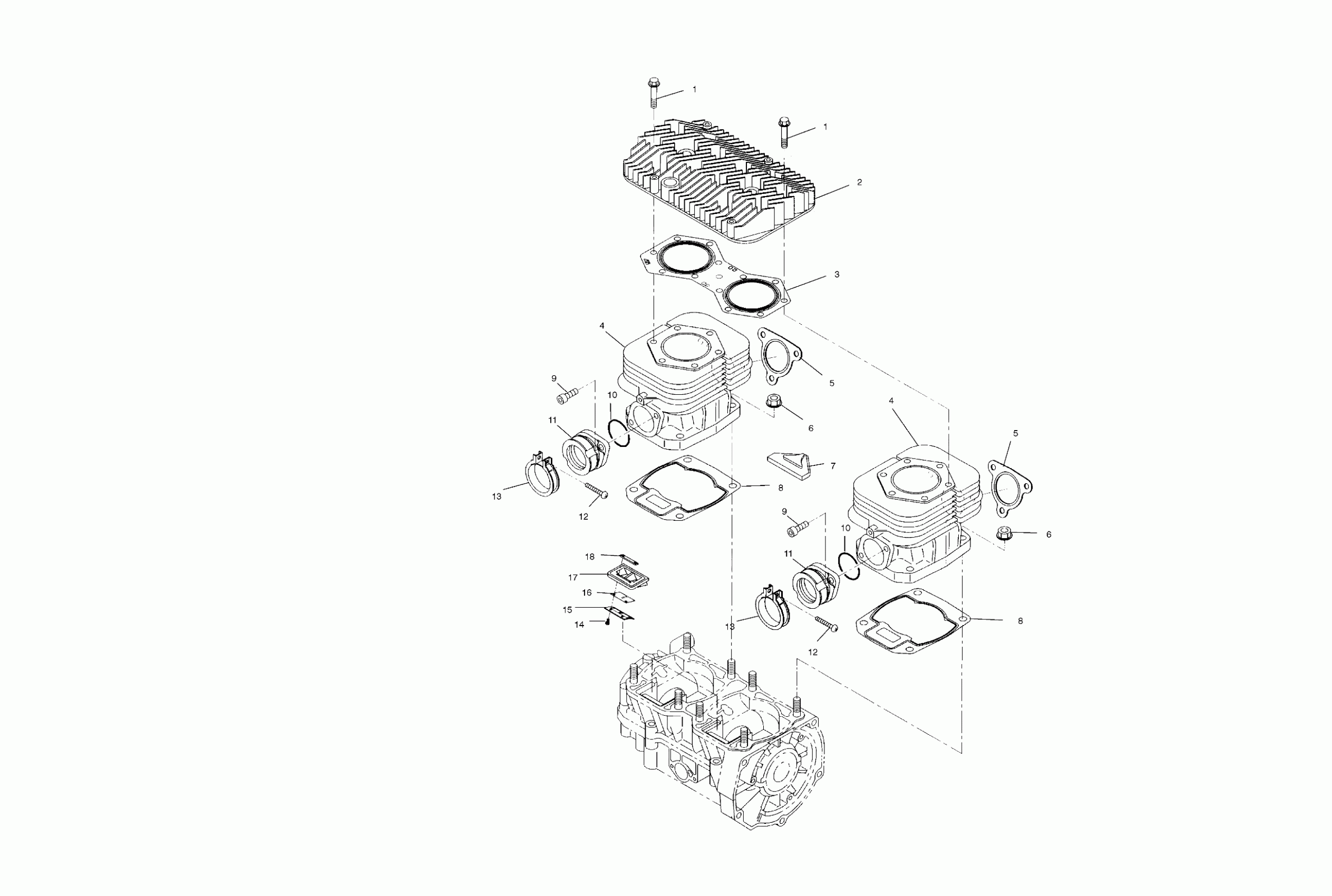

Polaris XCF EDGE - S00NX4FS CYLINDER - S00NX4FS (4956165616C009) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

CYLINDER,HEAD

3086385

$236.17

3

GASKET,HEAD

3085668

$43.39

4

CYLINDER

3086974

Unavailable

4

CYLINDER

3086974

Unavailable

5

GASKET,EXHAUST

3085714

$29.99

5

GASKET,EXHAUST

3085714

$29.99

6

NUT-FLANGE(10)

3082911

$1.99

6

NUT-FLANGE(10)

3082911

$1.99

7

COVER,CYL.BAFFLE

3085692

$24.27

8

GASKET,CYLINDER

3085666

Unavailable

8

GASKET,CYLINDER

3085666

Unavailable

9

Bolt, Allen

3081330

$3.99

9

Bolt, Allen

3081330

$3.99

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

ADAPTER (Incl. 10)

3085670

Unavailable

11

ADAPTER (Incl. 10)

3085670

Unavailable

12

SCREW,(10)

3081497

$2.39

12

SCREW,(10)

3081497

$2.39

13

BAND ASM. (Incl. 12)

3083166

$19.84

13

BAND ASM. (Incl. 12)

3083166

$19.84

14

SCREW & WASHER ASM.

3085717

$4.75

15

STOPPER

3086387

$12.94

16

VALVE, REED

3085715

$8.89

17

VALVE,REED (Incl. 14-18)

3086386

$60.70

18

PLATE Substituted by 3085718

3086388

Unavailable
