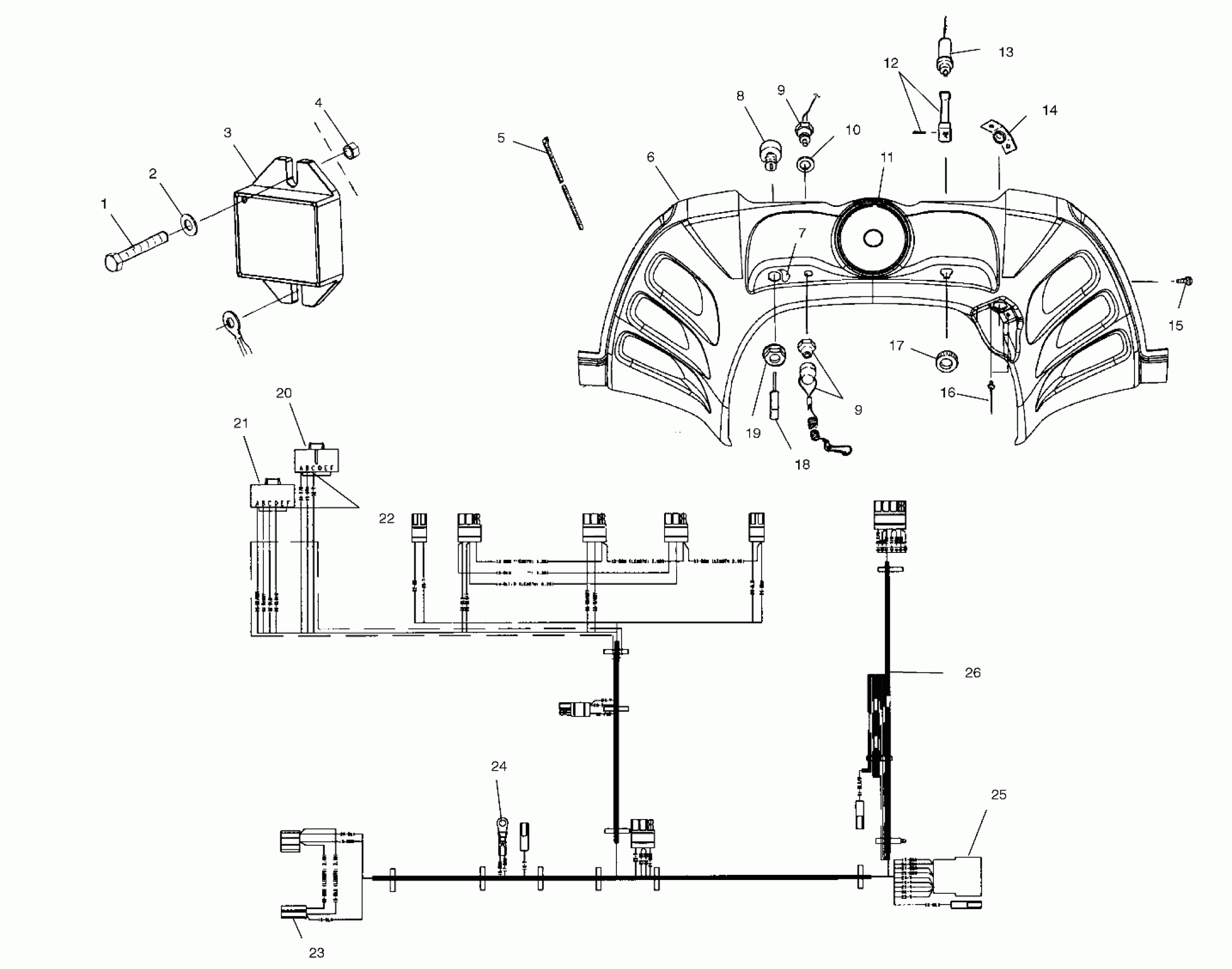

Polaris XCF EDGE - S00NX4FS CONSOLE - S00NX4FS (4956165616A013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

REGULATOR,AC,14.3 V

4010301

Unavailable

4

NUT(10)

7541925

$1.49

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CONSOLE-BASIC EDGE

5433242

Unavailable

7

DECAL-CONSOLE,IGNITION

7078318

Unavailable

8

KIT,IGN.SWITCH

2200358

$76.89

9

SWITCH-TETHER,HYBRID

4010187

Unavailable

9

SWITCH-TETHER,HYBRID

4010187

Unavailable

10

BUSHING, MACH.(10)

7558707

$4.79

11

SPEEDCLIP,'U'TYPE(10)

7670082

Unavailable

12

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

13

Cable, Choke Control (Incl. 12,17)

7080290

$105.22

14

GUIDE-RECOIL

5243049

$9.70

15

SCREW(10)

7515199

$1.49

16

RIVET, POP(50)

7621330

$1.49

17

NUT,CHOKE

5432944

$8.79

18

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behin

5410611

Unavailable

19

NUT,IGNITION

7547035

$8.79

20

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

21

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

22

SOCKET-PACKARD#12047767

4010192

Unavailable

23

HOUSING

4020063

$3.19

24

Terminal, Ring

4020092

Unavailable

25

Housing w/Receptacle

4020057

$3.51

26

HARNESS,MAIN,COMMON,EDGE

2460807

Unavailable
