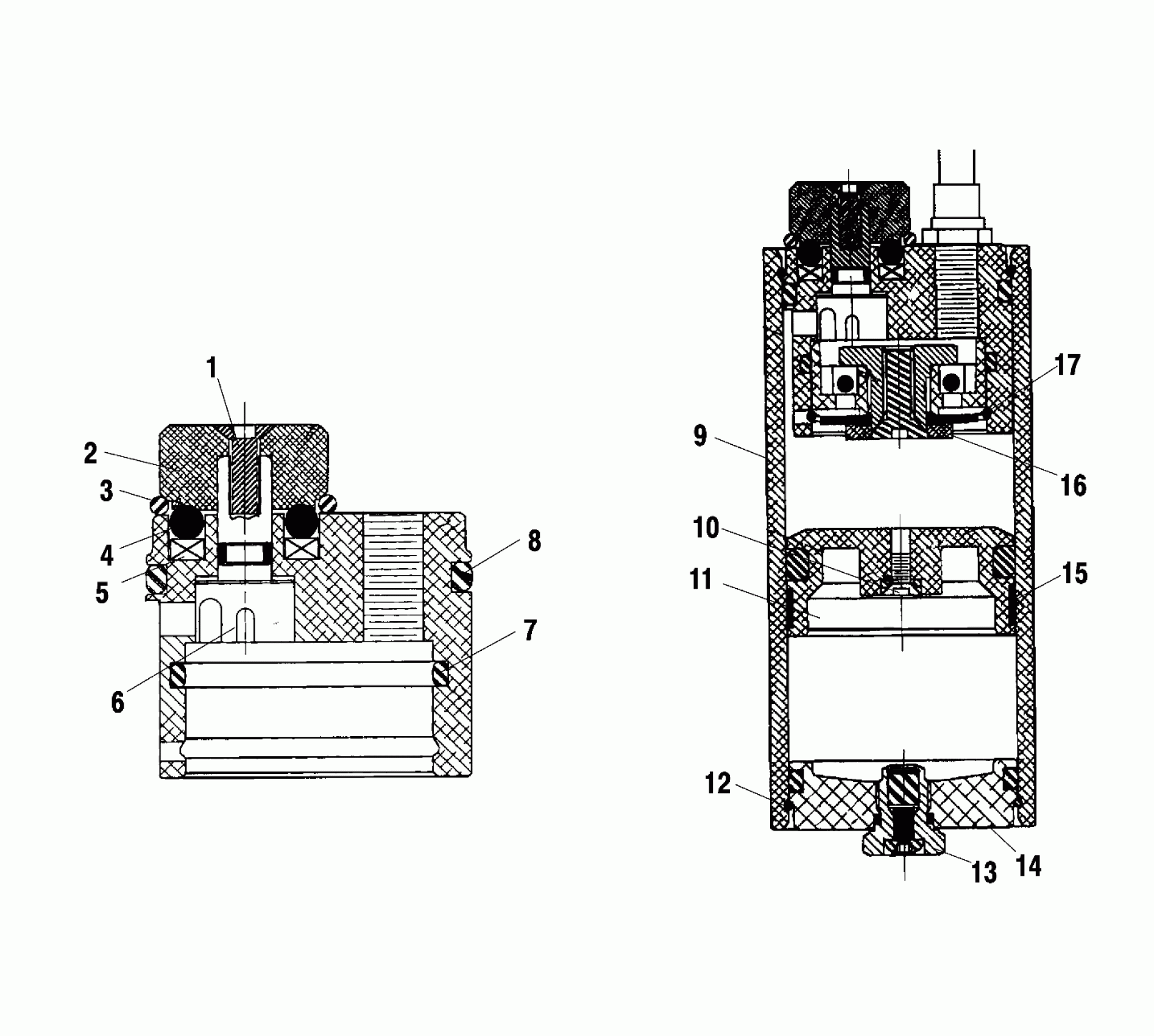

Polaris XCF EDGE - S00NX4FS COMPRESSION DAMPING RESERVOIR - S00NX4FS (4956165616C004) Diagram

Description

Price

HOUSING (Incl. 1-8)

1500263

$103.19

RESERVOIR,ASM,W/GROOVE [No Longer Available] (Incl. 1-17)

1500329

Unavailable

Screw

1500223

$2.23

KNOB-DAMP ADJUST

1500224

$30.95

O-Ring

1500253

$1.49

BALL-AIR VALVE

1500226

$1.75

SPRING-AIR VALVE

1500225

$3.32

DRUM COMP.

1500254

$40.79

SEAL,O-RING

1500229

$4.92

SEAL,O-RING

1500228

Unavailable

RESERVOIR,W/GROOVE [No Longer Available]

1500325

Unavailable

SCREW/O-RING ASM.

1500161

Unavailable

PISTON,FLOAT,ASM.

1500235

$49.59

RING,RETAINING

1500236

$9.59

SCREW Substituted by 1500019

1500232

Unavailable

RES.END CAP ASM.

1500231

Unavailable

BEARING,EXTERNAL

1500230

$31.99

PLATE,DAMPING,4-HOLE

1500324

$50.00

RING,RETAINING

1500233

$3.75
