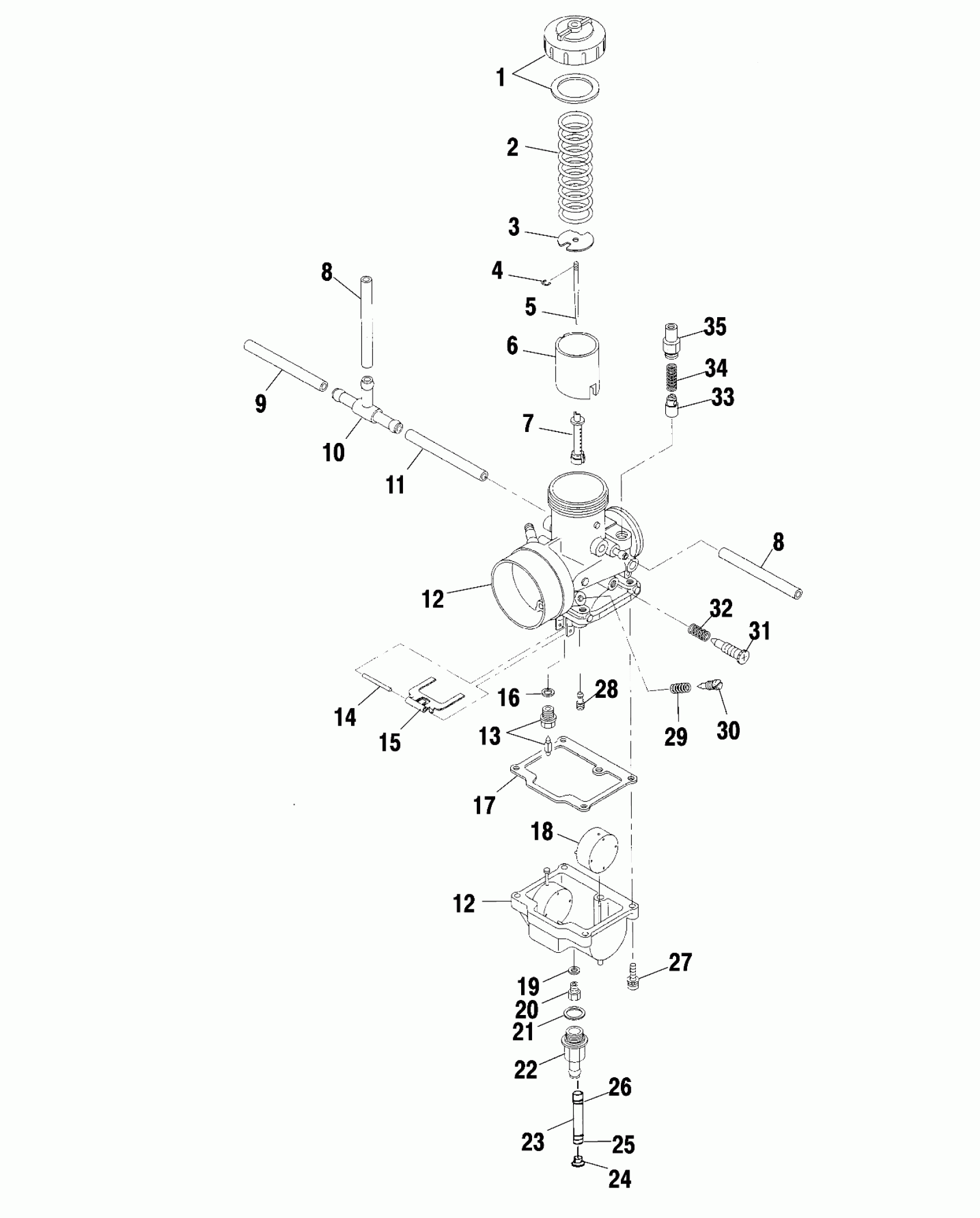

Polaris XCF EDGE - S00NX4FS CARBURETOR - S00NX4FS (4956165616C013) Diagram

#

Description
Price

1

TOP ASM,MIX.CHAMBER Substituted by 3130184 (Incl. Gasket)

3130877

Unavailable

2

SPRING,THROTTLE Substituted by 3130439

3130889

Unavailable

3

PLATE,THROTTLE Substituted by 3130027

3130879

Unavailable

4

E RING(10) Substituted by 3130508

3130003

Unavailable

5

JET NEEDLE (6DH7)

3130329

Unavailable

6

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

7

NEEDLE JET

3131122

Unavailable

8

HOSE (Mag Qty 1, PTO Qty 2)

3131079

Unavailable

8

HOSE (Mag Qty 1, PTO Qty 2)

3131079

Unavailable

9

HOSE (PTO)

3131240

Unavailable

10

NIPPLE (PTO)

3130611

Unavailable

11

HOSE (PTO)

3131239

Unavailable

12

CARBURETOR,ASM. (Mag)(Incl. 1-22,27-35)

3131120

Unavailable

12

CARBURETOR 2 ASM. (PTO) (Incl. 1-22,27-35)

3131121

Unavailable

12

CARBURETOR,ASM. (Mag)(Incl. 1-22,27-35)

3131120

Unavailable

12

CARBURETOR 2 ASM. (PTO) (Incl. 1-22,27-35)

3131121

Unavailable

13

VALVE,NEEDLE Substituted by 3130643 (1.5)

3130942

$56.65

14

PIN, FLOAT

3130361

$8.89

15

ARM, FLOAT

3130577

$12.39

16

WASHER(10)

3130047

$4.84

17

GASKET,FLOATCHAMBER

3130578

$20.22

18

FLOAT ASM.

3130581

$19.68

19

Ring

3130576

Unavailable

20

JET,MAIN,#340 Substituted by 3130137 (#340)(Mag)

3130626

Unavailable

20

JET,MAIN,HX.HD#350(10) (#350)(PTO)

3130138

$7.27

21

O RING

3130239

Unavailable

22

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

23

FUEL LINE, 5 FT.

8450045-153

Unavailable

24

PLUG,TRAP

5431893

$12.94

25

CLAMP,HOSE(10)

7080544

Unavailable

26

CLAMP,SPRING,(10)

7080534

$1.59

27

SCREW

3130056

$3.19

28

JET,PILOT,#35(10) (#35)

3130066

$8.89

29

SPRING,AIR ADJUST

3130012

$8.89

30

SCREW,AIR

3130011

$19.99

31

SCREW,THROT.STOP

3130437

Unavailable

32

SPRING,THROTTLE ADJ.

3130010

$8.89

33

PLUNGER ASM, STARTER

3130328

$32.37

34

SPRING,PLUNGER

3130006

$8.89

35

HOLDER,GUIDE

3130199

$28.32
