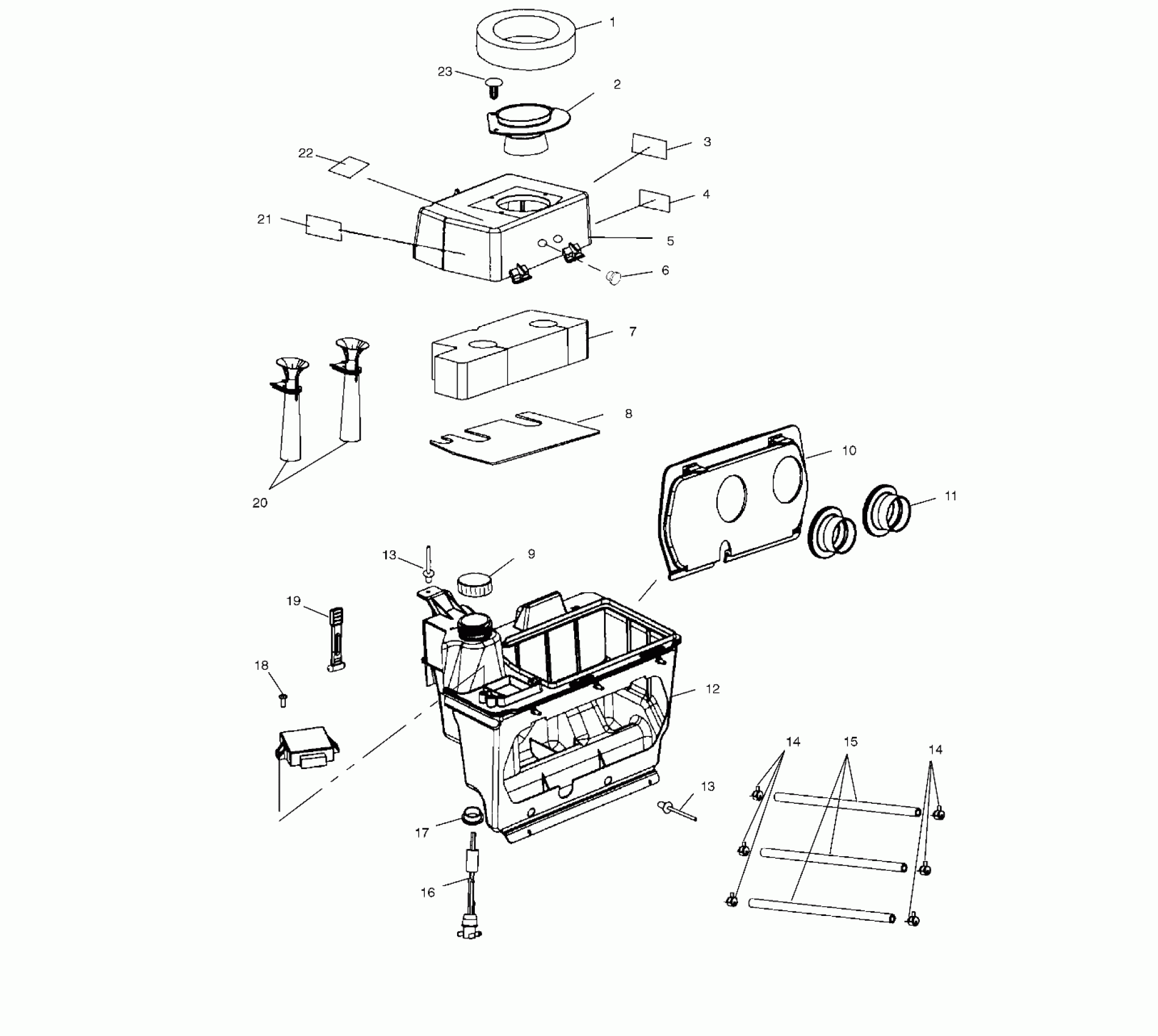

Polaris XCF EDGE - S00NX4FS AIR BOX - S00NX4FS (4956165616C006) Diagram

#

Description
Price

1

FOAM,AIRBOX,CHIMNEY,EDGE

5811882

$20.22

2

DUCT,AIR,INLET

5433664

$12.39

3

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

4

DECAL, GREASING [No Longer Available]

7073426

$7.27

5

COVER,AIRBOX,FORWARD POST

5433766

Unavailable

6

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

7

FOAM,AIRBOX,PLATE

5811979

Unavailable

8

PLATE,INT.,EDGE,FWARD POST

5433765

$11.59

9

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

10

PLATE,CARB ADPTR,440 FAN

5433639

Unavailable

11

BOOT,CARB,440 FAN,EDGE

5411840

$8.25

12

OIL/AIRBOX,WELD,MOD,F/C

1261010

Unavailable

13

RIVET(50)

7621472

$1.49

13

RIVET(50)

7621472

$1.49

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

14

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

15

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

16

FITTING-OIL SENDER

4010224

Unavailable

17

GROMMET-OIL SENDER Substituted by 7052305

7052247

$4.84

18

SCREW(10)

7512095

$4.79

19

STRAP-AIRBOX TOP

5433150

$24.27

20

TUBE,INTAKE,OUTER

5433662

Unavailable

21

DECAL-FUEL SHUT OFF

7078317

Unavailable

22

DECAL,CAUTION,AIRBOX

7075351

Unavailable

23

CLIP-FIR TREE,DART,6.35MM

7670090

$1.49
