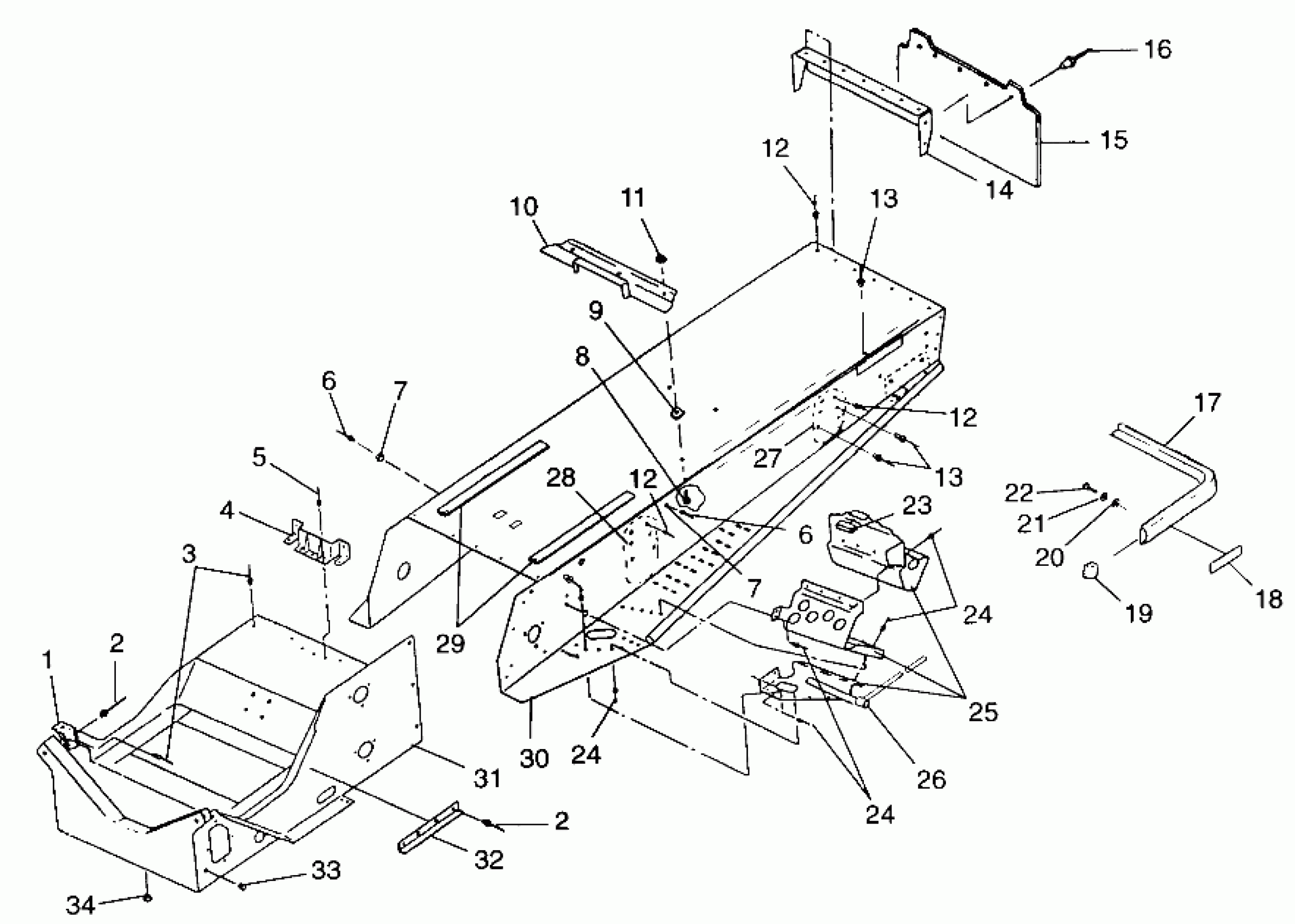

Polaris XCF - 099SP4AS TUNNEL - 099SP4AS (4948284828a005) Diagram
#
1
SUPPORT,MUFFLER,FRT
5242798-067
$17.43
2
RIVET(50) Substituted by 7661130
7661643
Unavailable
2
RIVET(50) Substituted by 7661130
7661643
Unavailable
3
RIVET-3/16-.090-.290
7661637
$1.49
4
BRKT,GASTANK,WELD.
1011733-067
$19.73
5
RIVET(50)
7621301
$3.99
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
7
SNAP-MALE(10)
7080227
Unavailable
7
SNAP-MALE(10)
7080227
Unavailable
8
BOLT(10)
7512193
$2.39
9
SPEED NUT(10)
7670021
$6.99
10
STRAP,GASTANK,BLK
1011732-067
Unavailable
11
NUT-LOCK(10)
7542122
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
RIVET,SEMI-TUBE,(50)
7661841
$1.49
13
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
13
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
14
PANEL,TUNNELBACK
5241053-067
$308.99
15
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
16
POP RIVET(50)
7621418
$1.49
17
BUMPER,REAR,BLACK Substituted by 2670169
2670169-067
Unavailable
18
REFLECTOR ASM,RED
2670133
$5.75
19
CAP,BUMPER
5431995-070
Unavailable
20
WASHER(10)
7558301
$1.49
21
LOCK WASHER(10)
7552801
$1.59
22
BOLT(10)
7512240
$3.99
23
EXTRUSION,CLUTCHGUARD
5521238
$6.46
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
RIVET,INTERLOCK,B(50)
7661638
$1.49
25
FOOTREST ASM,LH,BLK.
1012681
Unavailable
25
FOOTREST ASM,RH,BLK.
1012682
$95.24
26
SUPPORT,TUNNEL,LH,BLK.
1012812-067
$32.37
26
SUPPORT,TUNNEL,RH,BLK
1012813-067
Unavailable
27
PAD,LH,R.SUSP.
5241268-067
Unavailable
27
PAD,RH,R.SUSP.
5241269-067
Unavailable
28
PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067
5241303-067
Unavailable
28
PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067
5241304-067
Unavailable
29
PAD-GAS TANK
5810063
$4.95
30
TUNNEL ASM,F/C,BLK. (Incl. 14,27,28)
1012762-067
$366.65
31
BULKHEAD,CRC,BLK
1012706-067
Unavailable
32
GUARD,ADAPTER,DRIVE
5240441
Unavailable
33
PLUG, HOLE(10)
7080416
$5.65
34
PLUG-HOLE
7080398
$4.84
