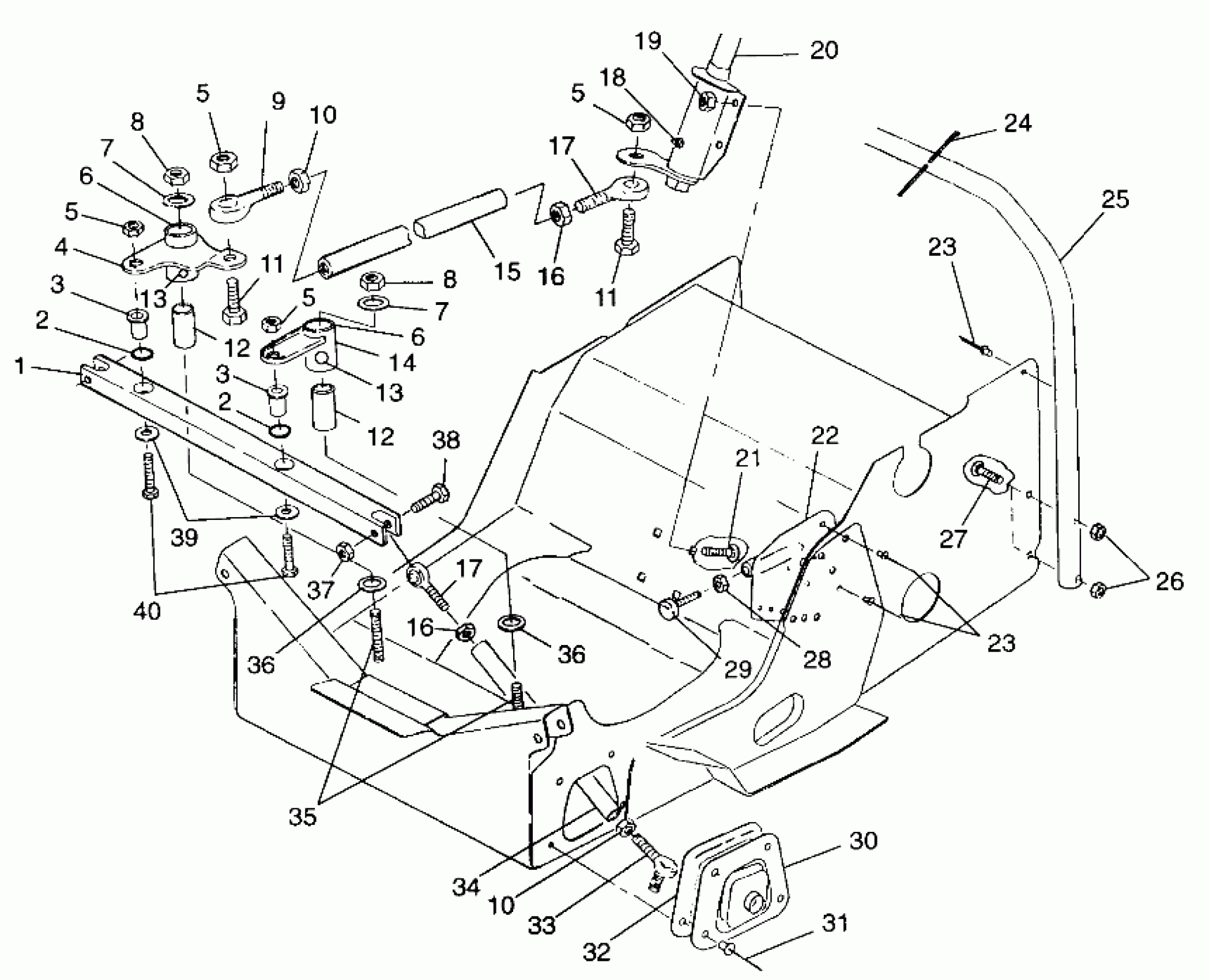

Polaris XCF - 099SP4AS STEERING - 099SP4AS (4948284828b005) Diagram
#
1
RACK ASM,STEERING
1822413
$77.78
2
O-RING
5411220
$6.46
2
O-RING
5411220
$6.46
3
TUBE,SPACER
5010384
Unavailable
3
TUBE,SPACER
5010384
Unavailable
4
PITMAN ARM (Incl. 6,13)
1820585
Unavailable
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
5
NUT LOCK(10)
7542403
$3.99
6
BUSHING
3563907
$3.99
6
BUSHING
3563907
$3.99
7
WASHER(10)
7555721
$1.49
7
WASHER(10)
7555721
$1.49
8
NUT,FLEX LOCK(10)
7547029
Unavailable
8
NUT,FLEX LOCK(10)
7547029
Unavailable
9
ROD END,RH
7060167
$48.56
10
NUT HEX(10)
7542401
$2.39
10
NUT HEX(10)
7542401
$2.39
11
BOLT(10)
7512404
$3.99
11
BOLT(10)
7512404
$3.99
12
Spacer
5010468
Unavailable
12
Spacer
5010468
Unavailable
13
ZERK,FITTING,THREADED(10)
7080433
$1.49
13
ZERK,FITTING,THREADED(10)
7080433
$1.49
14
IDLER ARM (Incl. 6,13)
1820582
Unavailable
15
ROD,DRAG LINK
5020881
$18.23
16
NUT
7542424
$1.49
16
NUT
7542424
$1.49
17
ROD END,LH
7060166
$48.56
17
ROD END,LH
7060166
$48.56
18
FITTING,LUB/VEN(10)
7080561
$4.79
19
NUT FLEX-LOC(10)
7542303
$6.39
20
Post, Steering (See Footnote) (See Steering -Handlebar Pg. B4, Ref. 24)
-------
Unavailable
21
BOLT,(10)
7517428
$2.39
22
TORQUE STOP
1012855
$49.59
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
CABLE TIE-RELEASABLE,5 1/2"(10)
7080804
$3.22
25
STEERING HOOP,BLK Substituted by 1013153-067
1012795-067
$41.59
26
NUT, LOCK(10)
7542103
$5.59
27
BOLT-CARRIAGE(10)
7512275
$3.99
28
NUT(10)
7542404
$1.59
29
STOP,TORQUE,COURSE Substituted by 3021081
3110078
$36.41
30
PLATE,BOOT,MOD
5211796-067
$31.35
31
POP RIVET(50)
7621323
$1.49
32
BOOT,TIEROD,MOD
5411249
Unavailable
33
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
34
TIEROD,BLK
5020857-067
Unavailable
35
SCREW(10)
7517328
$13.19
36
WASHER(10)
7556053
$2.63
36
WASHER(10)
7556053
$2.63
37
NUT LOCK(10)
7542411
$3.19
38
SCREW(10)
7515434
Unavailable
39
WASHER(10)
7555893
$1.49
40
BOLT(10)
7515415
$1.49
