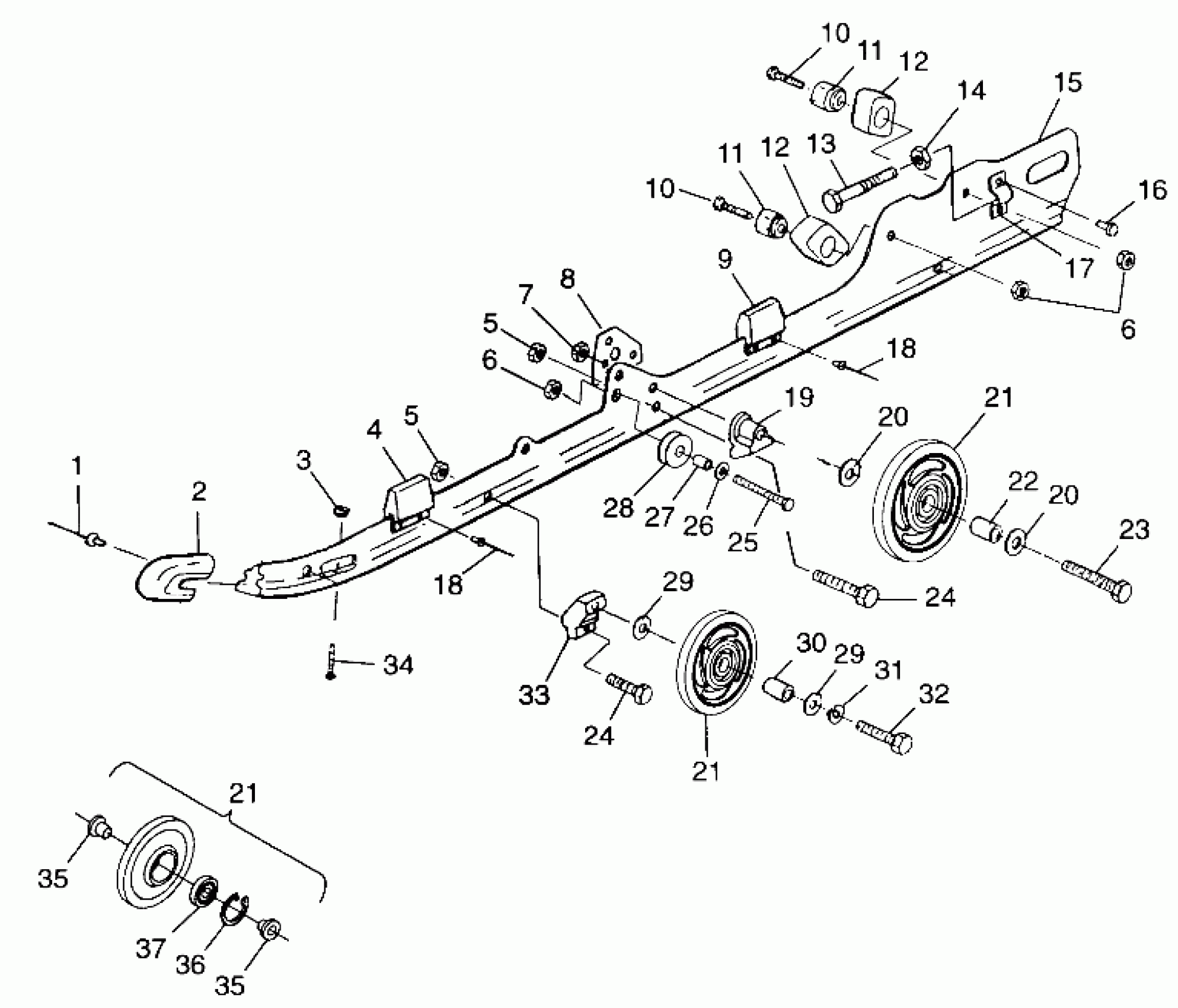

Polaris XCF - 099SP4AS RAIL MOUNTING (SUSPENSION) - 099SP4AS (4948284828b009) Diagram

#

Description
Price

1

RIVET(50)

7621435

$1.49

2

COVER, RAIL TIP Substituted by 5433005

5431421

Unavailable

3

NUT-LOCK(10)

7542122

$1.49

4

REINF., BUMPER

5222629

$13.75

4

BUMPER, RAIL

5810554

$7.27

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

NUT, NYLOCK(10)

7542525

$4.79

8

BRKT,RAIL,REINF

5211790

Unavailable

9

REINF., BUMPER

5222629

$13.75

9

BUMPER,SUSPENSION

5811097

Unavailable

10

BOLT,(10)

7515545

$5.59

10

BOLT,(10)

7515545

$5.59

11

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

11

MOUNT,F.BUMPER PIVOT ARM

5131113

$28.32

12

BUMPER,F.PIVOT ARM

5410925

$12.94

12

BUMPER,F.PIVOT ARM

5410925

$12.94

13

BOLT, ADJUSTER(10)

7515455

$29.99

14

NUT,TENSIONER ADJ.

5020943

$20.22

15

RAIL,LH,121,XTRA 10 (Incl.1,2,4,9,16,17,18)

1541146

$288.99

15

RAIL,RH,121,XTRA 10 (Incl.1,2,4,9,16,17,18)

1541147

Unavailable

16

RIVET,(50)

7621501

$2.39

17

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

18

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

18

RIVET-3/16 (.626-.750) Q-AL-ST

7621476

$1.49

19

SPACER

5630399

$11.99

20

WASHER, FLAT(10)

7555852

$2.39

20

WASHER, FLAT(10)

7555852

$2.39

21

WHEEL,BOGIE,SCRL.B.RED (Incl. 35-37)

1594082-243

Unavailable

21

WHEEL,BOGIE,SCRL.B.RED (Incl. 35-37)

1594082-243

Unavailable

21

WHEEL,BOGIE,SCRL.B.RED (Incl. 35-37)

1594082-243

Unavailable

22

SPACER, WHEEL

5333116

$7.99

23

BOLT(10)

7512538

$6.39

24

BOLT(10)

7512404

$3.99

24

BOLT(10)

7512404

$3.99

25

BOLT Substituted by 7515491

7515433

$1.59

26

WASHER(10)

7555743

Unavailable

27

Spacer

5332787

Unavailable

28

ROLLER,SPRING

5432170

Unavailable

29

WASHER(10)

7555804

$3.99

29

WASHER(10)

7555804

$3.99

30

SPACER

5332786

$7.99

31

LOCK WASHER(10)

7553201

$3.99

32

BOLT(10)

7512659

$7.99

33

BRACKET,BOGIE WHEEL

5130570

$48.56

34

BOLT(10)

7515175

$3.99

35

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

35

INSERT, WHEEL,(10) (2 Per Wheel)

5431531

$9.70

36

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

37

BEARING (1 per Wheel)

3514303

$11.99
