PISTON and CRANKSHAFT - 099SP4AS (4948284828c005)

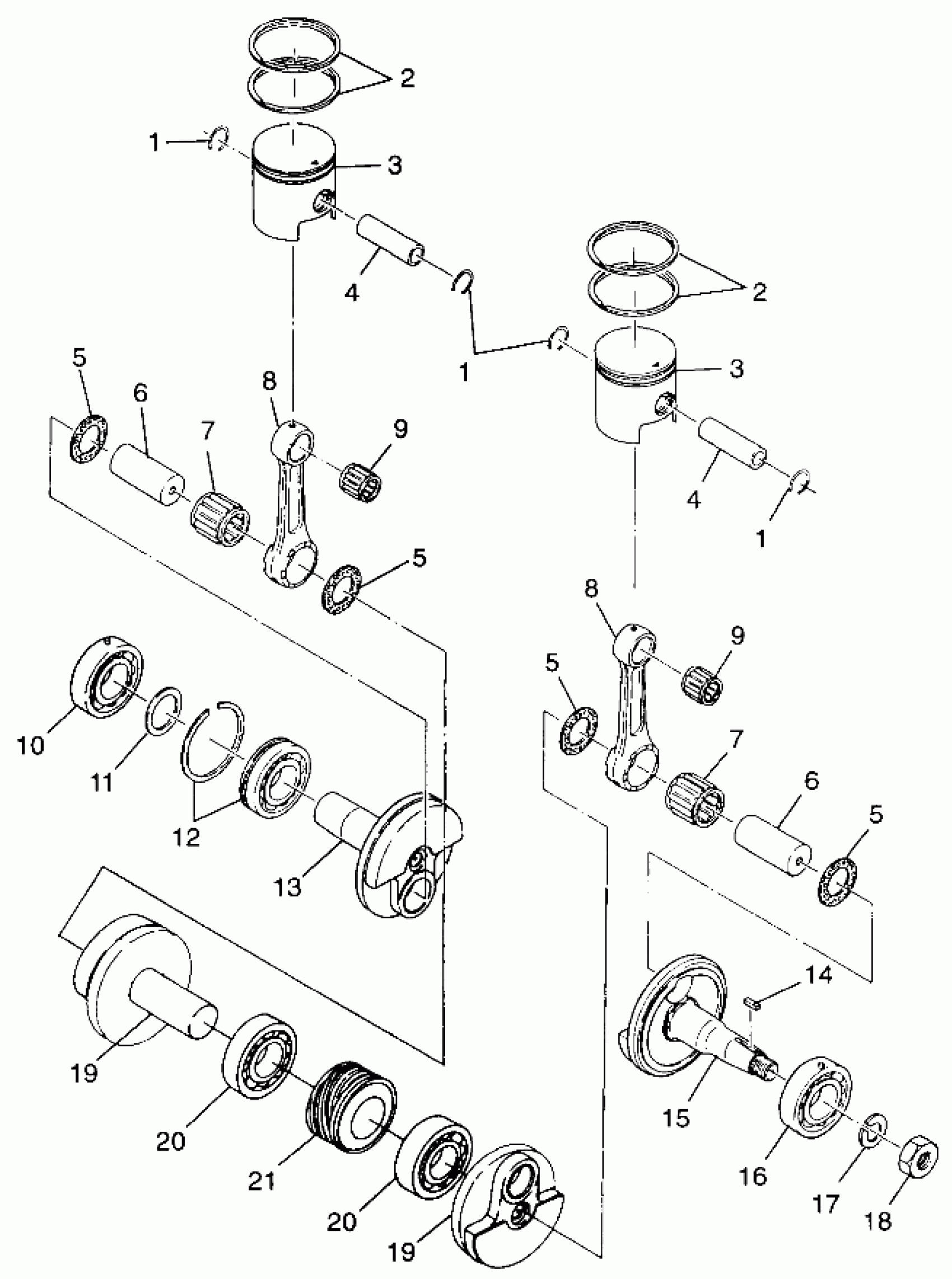

Polaris XCF - 099SP4AS PISTON and CRANKSHAFT - 099SP4AS (4948284828c005) Diagram
#
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
1
CLIP,(10)
3084167
$6.39
2
RING,PISTON,STD (Standard)
3085681
Unavailable
2
RING,PISTON,(0.25MM.O/S) (0.25mm/.010"O/S)
3085682
Unavailable
2
RING,PISTON,(0.50MM.O/S) (0.50mm/.020"O/S)
3085683
$41.59
2
RING,PISTON,STD (Standard)
3085681
Unavailable
2
RING,PISTON,(0.25MM.O/S) (0.25mm/.010"O/S)
3085682
Unavailable
2
RING,PISTON,(0.50MM.O/S) (0.50mm/.020"O/S)
3085683
$41.59
3
PISTON SET (STD) (Standard)
3085925
Unavailable
3
PISTON SET (0.25 O/S) (0.25m/.010"O/S)
3085927
Unavailable
3
PISTON SET (0.50 O/S) (0.50m/.020"O/S)
3085929
Unavailable
3
PISTON SET (STD) (Standard)
3085925
Unavailable
3
PISTON SET (0.25 O/S) (0.25m/.010"O/S)
3085927
Unavailable
3
PISTON SET (0.50 O/S) (0.50m/.020"O/S)
3085929
Unavailable
4
Pin, Piston
3083849
$19.83
4
Pin, Piston
3083849
$19.83
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
6
Pin, Crank, 2
3083456
Unavailable
7
BEARING,LARGE END Substituted by 3086390
3085720
$1,634.99
7
BEARING,LARGE END Substituted by 3086390
3085720
$1,634.99
8
ROD, CONNECTING
3240083
$1,634.99
8
ROD, CONNECTING
3240083
$1,634.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
BEARING,BALL
3085754
$64.99
11
SPACER
3085677
$11.99
12
BEARING,BALL
3085753
$64.99
13
CRANKSHAFT #3,PTO SIDE (PTO End)
3085675
Unavailable
14
KEY Substituted by 3081543
3080130
Unavailable
15
CRANKSHAFT #1,MAG SIDE (Mag End)
3085673
$404.99
15
CRANKSHAFT ASM. Substituted by 3086389 (Incl. 5-8,10-13,15,19,21)
3085672
$1,684.99
16
BEARING, BALL
3084681
Unavailable
17
WASHER-SPRING(10)
3083094
$3.17
18
NUT
3083093
$19.99
19
CRANKSHAFT #2 (Center) (Incl. 6,21)
3085674
$694.99
19
CRANKSHAFT #2 (Center) (Incl. 6,21)
3085674
$694.99
20
BEARING, BALL
3084586
$44.99
20
BEARING, BALL
3084586
$44.99
21
DRIVEGEAR,OILPUMP
3083780
$107.99
