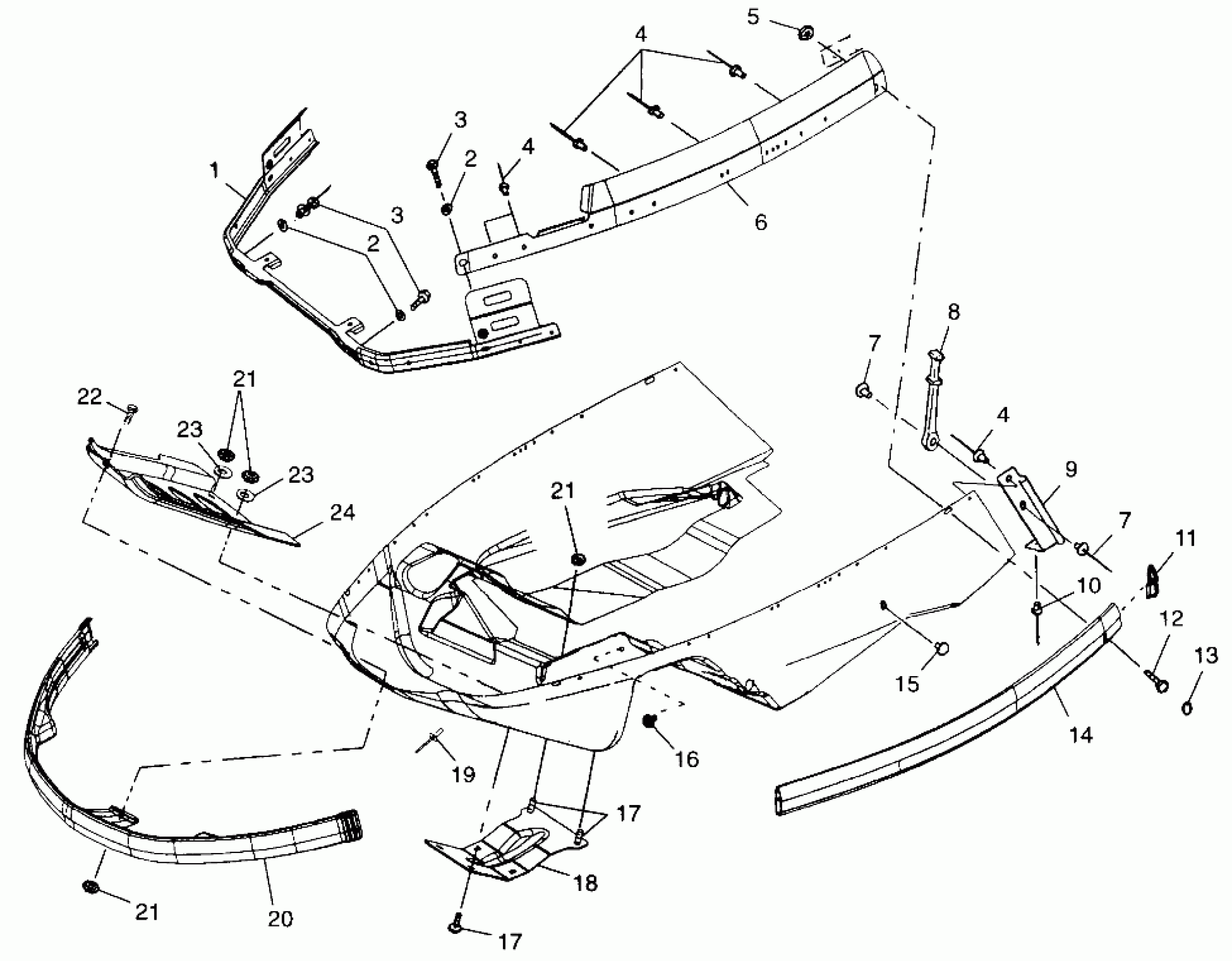

Polaris XCF - 099SP4AS NOSEPAN - 099SP4AS (4948284828a007) Diagram
#
Description
Price
1
BRACE HINGE,BLK
1012783-067
$64.75
2
LOCK WASHER(10)
7552801
$1.59
2
LOCK WASHER(10)
7552801
$1.59
3
BOLT(10)
7512276
$4.79
3
BOLT(10)
7512276
$4.79
4
POP RIVET(50)
7621402
$1.49
4
POP RIVET(50)
7621402
$1.49
4
POP RIVET(50)
7621402
$1.49
5
NUT, LOCK(10)
7542103
$5.59
6
GUIDE,HOOD,LH
5243005
Unavailable
6
GUIDE,HOOD,RH
5243006
Unavailable
7
RIVET,(50)
7621601
Unavailable
7
RIVET,(50)
7621601
Unavailable
8
STRAP, HOOD LATCH
5410370
$24.27
9
BRACE,PAN,RH
5220523-067
$94.99
9
BRACE,PAN,LH
5220522-067
$94.99
10
RIVET,3/16X.402(50)
7621432
$1.49
11
CAP,BUMPER,LH,BLK.
5432887
$8.08
11
CAP,BUMPER,RH,BLK.
5432888
$4.84
12
SCREW(10)
7515166
$3.19
13
PLUG, HOLE(10)
7080416
$5.65
14
EXTRUSION-BUMPER,FORMED,LH,BLK
5242580-067
Unavailable
14
EXTRUSION-BUMPER,FORMED,RH,BLK
5242581-067
Unavailable
15
PLUG
5410344
$5.65
16
PLUG,NOSEPAN HOLE
5410820
$15.99
17
BOLT(10)
7512193
$2.39
17
BOLT(10)
7512193
$2.39
18
BRACE-PAN,LOWER,BLK
5242575-067
$24.27
19
RIVET(50)
7621463
Unavailable
20
BUMPER,FR,HYB,BLK. Substituted by 5432891-070
5432891
$139.99
21
NUT-LOCK(10)
7542122
$1.49
21
NUT-LOCK(10)
7542122
$1.49
21
NUT-LOCK(10)
7542122
$1.49
22
BOLT(10)
7515175
$3.99
23
WASHER(10)
7558301
$1.49
23
WASHER(10)
7558301
$1.49
24
BRACE-PAN,UPPER,BLK Substituted by 5243820
5243074-067
Unavailable
