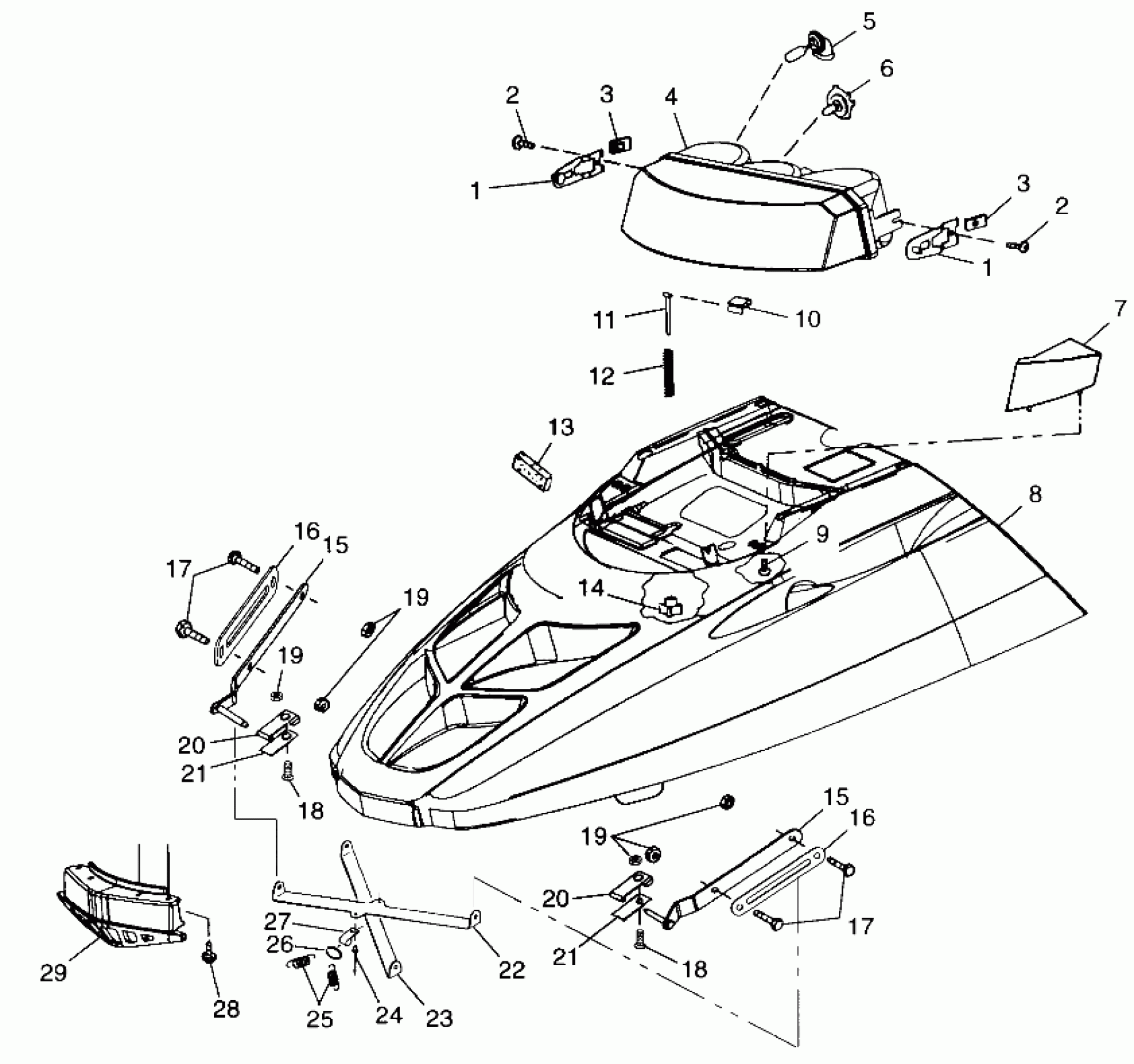

Polaris XCF - 099SP4AS HOOD - 099SP4AS (4948284828a009) Diagram
#
Description
Price
1
MOUNT,WELD,H/L
1011944-067
$24.27
1
MOUNT,WELD,H/L
1011944-067
$24.27
2
BOLT(10)
7515107
Unavailable
2
BOLT(10)
7515107
Unavailable
3
NUT, SPEED(10)
7670057
$1.49
3
NUT, SPEED(10)
7670057
$1.49
4
H/L ASM,3-BULB (Incl. Bulbs)
2431008
$111.99
5
BULB,HI-BEAM
4030048
$29.03
6
BULB,QUARTZ.H/L,INDY
2870448
$24.99
7
LENS,LH,CLR.REFLECTOR
5431855
Unavailable
7
LENS,RH,CLR.REFLECTOR
5431856
Unavailable
8
HOOD,HYB,SVC,INDY RED/FC (Incl. Foam/Foil)
2632014-293
Unavailable
9
SCREW(10) Substituted by 7512048
7511953
Unavailable
10
FASTENER-U TYPE CLIP
7670040
$3.99
11
BOLT,TEE ADJUSTER Substituted by 7517746
7515135
$24.99
12
SPRING,H/L.ADJ.
7041308
$3.19
13
FOAM-HEADLIGHT SEAL W/PSA
5811687
$20.22
14
KNOB,H/L.ADJUST
7080501
Unavailable
15
HINGE,LH,UPPER
1012750
$48.56
15
HINGE,RH,UPPER
1012751
$43.99
15
HINGE,LH,UPPER
1012750
$48.56
15
HINGE,RH,UPPER
1012751
$43.99
16
PLATE-BOLT
5242948
$9.70
16
PLATE-BOLT
5242948
$9.70
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
17
BOLT(10) Substituted by 7512247
7515184
Unavailable
18
BOLT,(10)
7515203
$3.99
18
BOLT,(10)
7515203
$3.99
19
NUT-LOCK(10)
7542122
$1.49
19
NUT-LOCK(10)
7542122
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
PLATE,HINGE,LOWER Substituted by 5244395
5242678
Unavailable
20
PLATE,HINGE,LOWER Substituted by 5244395
5242678
Unavailable
21
SHIM-HINGE, LOWER, BLK
5243243-067
Unavailable
21
SHIM-HINGE, LOWER, BLK
5243243-067
Unavailable
22
BRACE,HOOD,UPPER
5242945
$40.46
23
BRACE,HOOD,LOWER
5242946
$40.46
24
RIVET-3/16-.090-.290
7661637
$1.49
25
SPRING-EXT.
7041732
$7.19
26
SPRING-ATTACHMENT RING(10)
7041760
$7.99
27
CLAMP, RETAINER(10)
7080372
$3.99
28
SCREW(10)
7517441
$2.39
29
SCREEN,FRONT,HYB
5432931
$36.41
