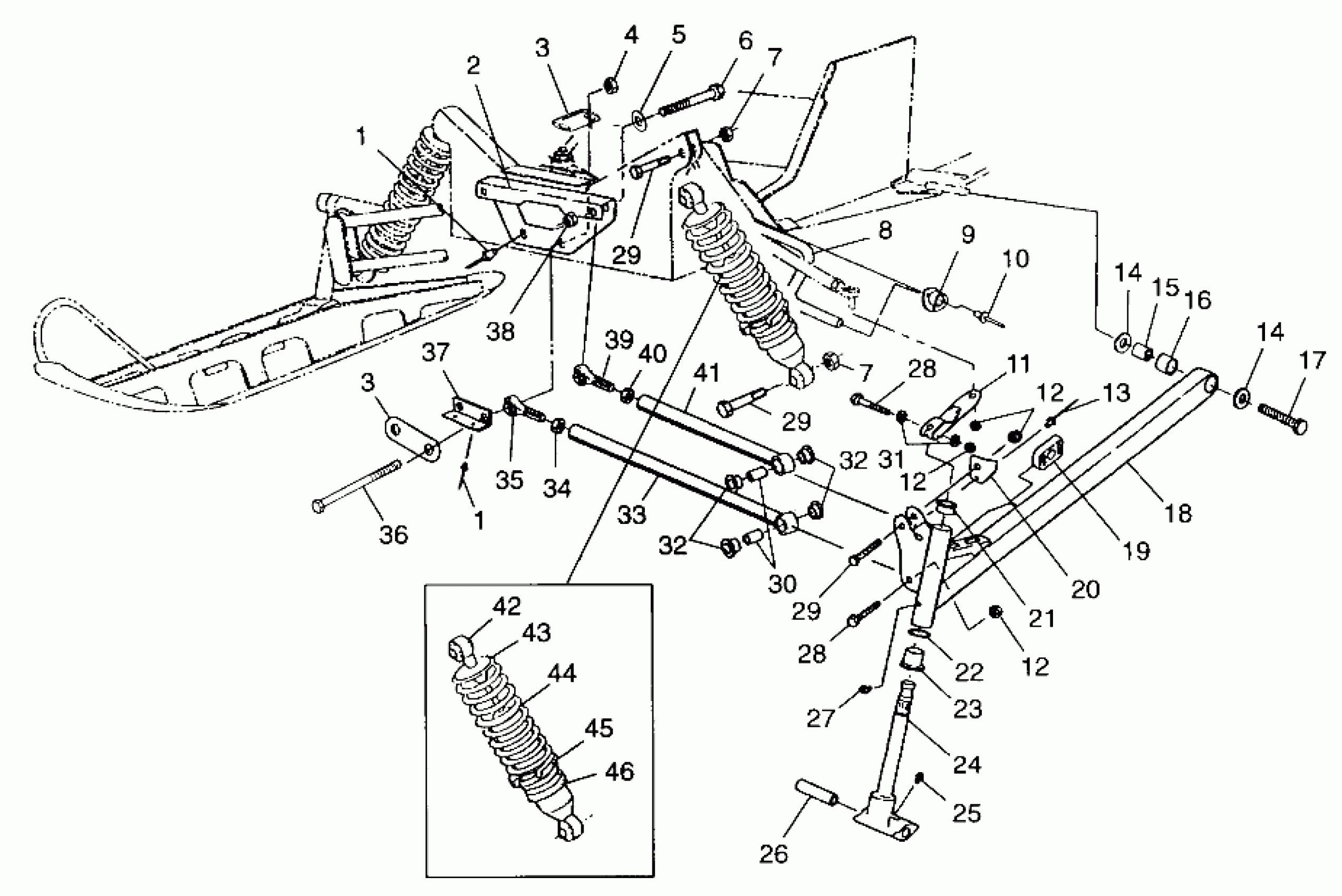

Polaris XCF - 099SP4AS FRONT SUSPENSION - 099SP4AS (4948284828b001) Diagram

#

Description
Price

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

1

RIVET,INTERLOCK,B(50)

7661638

$1.49

2

BRACE,FR.BULKH.,BLK Substituted by 5242112-067

5241641-067

Unavailable

3

STRAP,SPACER BOTTOM

5211345

$12.99

3

STRAP,SPACER BOTTOM

5211345

$12.99

4

NUT FLEX,(10)

7542703

Unavailable

5

WASHER THRUST(10)

7558702

$1.59

6

BOLT(10)

7512551

Unavailable

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BAR,SWAY,9/16,X-10,BLK

5224743-067

$70.39

9

BUSHING,SWAY BAR

5432412

$15.99

10

RIVET(50)

7621433

$1.49

11

ARM,LH,STRG,BLK.

5241660-067

Unavailable

11

ARM,RH,STRG,BLK.

5241661-067

Unavailable

12

NUT LOCK(10)

7542403

$3.99

12

NUT LOCK(10)

7542403

$3.99

12

NUT LOCK(10)

7542403

$3.99

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

WASHER(10)

7555721

$1.49

14

WASHER(10)

7555721

$1.49

15

TUBE, BUSHING

5010310

$9.70

16

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

17

BOLT(10)

7512557

$7.60

18

ARM,TRLG,LH,CRC. Substituted by 2201470 (Incl. 15,16)

1822517

Unavailable

18

ARM,TRLG,RH,CRC. Substituted by 2201471 (Incl. 15,16)

1822518

Unavailable

19

SLIDE,SWAYBAR,9/16

5432674

Unavailable

20

STOP,LH,STRG,BLK

5241777-067

$15.08

20

STOP,RH,STRG,BLK.

5241778-067

$18.23

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

25

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

26

BUSHING,PIVOT,(10)

5010158

$19.99

27

ZERK,FITTING,THREADED(10)

7080433

$1.49

28

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

28

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

29

BOLT(10)

7515415

$1.49

29

BOLT(10)

7515415

$1.49

29

BOLT(10)

7515415

$1.49

30

BUSHING-RADIUS ROD,(10)

5010127

$7.99

31

WSHR-.813X.406X.105-Y

7555832

$2.39

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

32

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

33

ROD,RAD,LOWER,BLK

1822377-067

Unavailable

34

NUT-JAM(10)

7542711

$2.39

35

RODEND,1/2,W/LINER,1.05 WIDE Substituted by 7061052

7061027

$48.56

36

BOLT(10)

7512684

Unavailable

37

BRKT,RAD.ROD,BTM.

5242578

$44.99

38

NUT, LOCK,(10)

7542503

$10.39

39

ROD,END,7/16 LINED Substituted by 7061049

7061010

Unavailable

40

NUT JAM(10)

7542520

$2.39

41

ROD,RAD,UPPER,BLK

1822375-067

Unavailable

42

SHOCK,GAS,IFS,SELECT

7041523

Unavailable

43

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

44

SPRING,COMP,IFS

7041552-067

$44.51

45

RING,SPRING PRELOAD ADJ.

5431734

$52.60

46

RETAINER,SPRING,BODY,THREADED

1500063

$44.51
