Description

Price

-

KIT,CLUTCH UPDATE (Incl. 7-9,12,16,17)

2200386

$161.89

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING,(DK.BLU) Substituted by 7041781

7041526

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10) (.050 mm)

5210754

Unavailable

10

SPACER(10) (.025 mm)

5242981

Unavailable

10

SPACER(10) (.020 mm)

5210752

Unavailable

10

SPACER(10) (.032 mm)

5210753

Unavailable

11

WT/BUSH.ASM,10-58(3) (10-58)

1321588

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

NUT FLEX LOC(10)

7541906

$3.19

16

PIN-ROLLER

5020422

$2.39

17

Kit - Shim, Drive Clutch

2200387

$24.27

18

CLUTCH,BASIC#94(DRIVE) (Less 5 and 11)

1321768

Unavailable

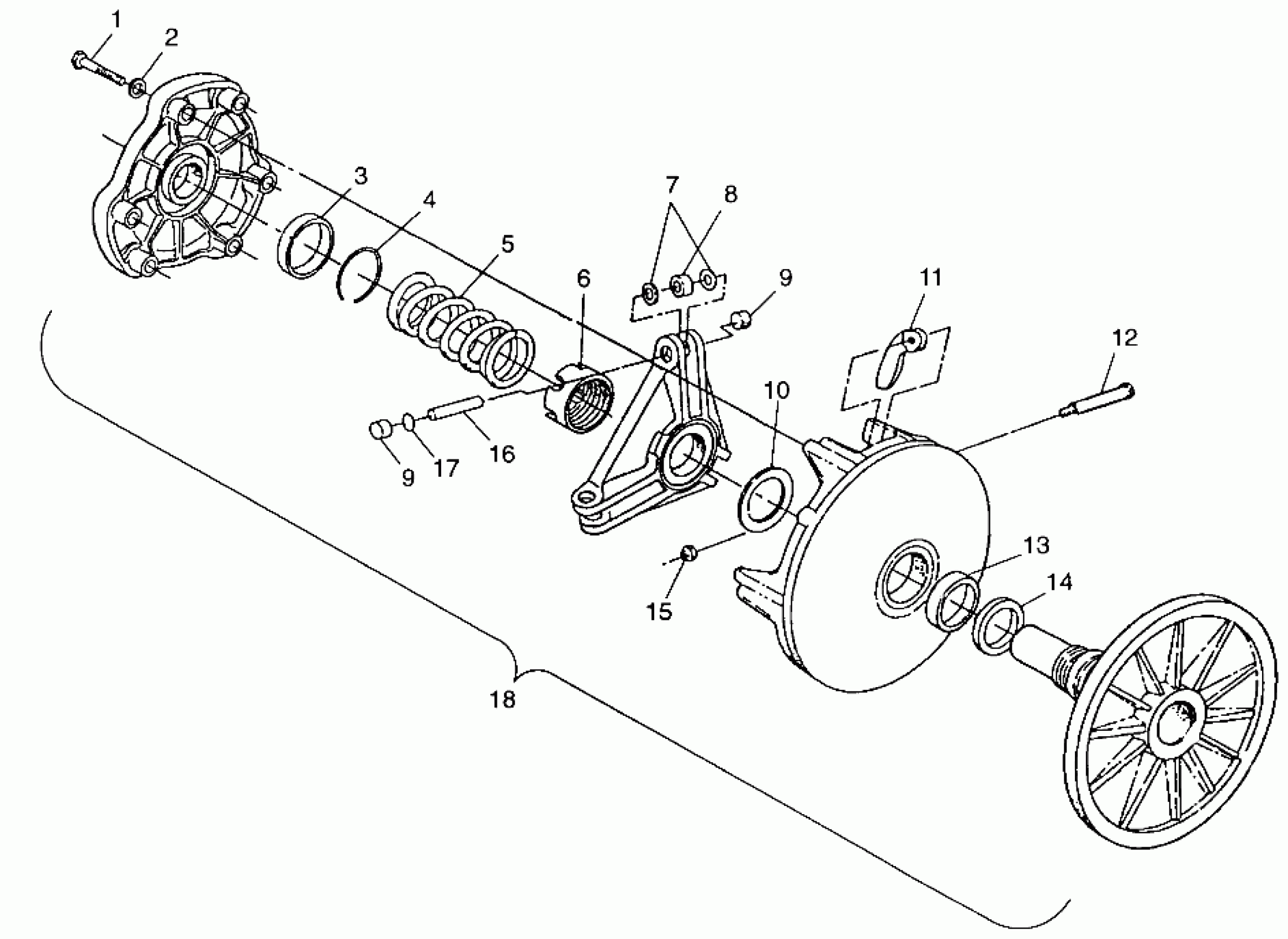

Polaris XCF - 099SP4AS DRIVE CLUTCH - 099SP4AS (4948284828b012) Diagram

KIT,CLUTCH UPDATE (Incl. 7-9,12,16,17)

BOLT,(10)

LOCK WASHER(10)

COVER,BEARING,GARMAX

RING-RETAINING,COVER

SPRING,(DK.BLU) Substituted by 7041781

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

SPACER(10) (.050 mm)

SPACER(10) (.025 mm)

SPACER(10) (.020 mm)

SPACER(10) (.032 mm)

WT/BUSH.ASM,10-58(3) (10-58)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

NUT FLEX LOC(10)

PIN-ROLLER

Kit - Shim, Drive Clutch

CLUTCH,BASIC#94(DRIVE) (Less 5 and 11)
