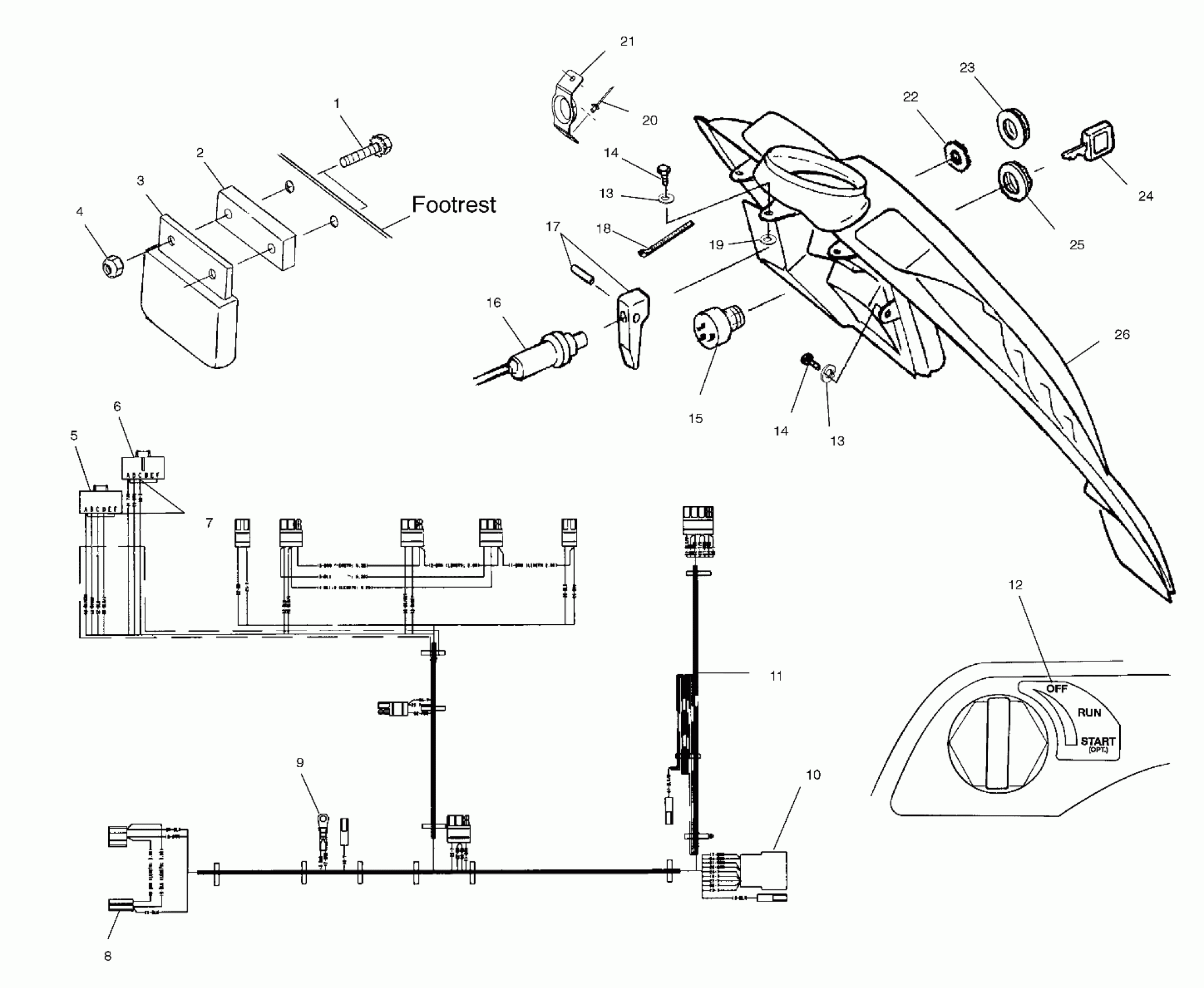

Polaris XCF - 099SP4AS CONSOLE - 099SP4AS (4948284828a013) Diagram

#

Description
Price

1

BOLT(10)

7512031

$2.23

2

SPACER,REGULATOR

5211573

Unavailable

3

REGULATOR,(14.3VAC),LR-7

4060123

Unavailable

4

NUT(10)

7541925

$1.49

5

HOUSING-CONNECTOR,PAC#12064860

4010194

$15.99

6

HOUSING-CONNECTOR,PAC#12186213

4010193

$8.79

7

SOCKET-PACKARD#12047767

4010192

Unavailable

8

HOUSING

4020063

$3.19

9

Terminal, Ring

4020092

Unavailable

10

Housing w/Receptacle

4020057

$3.51

11

HARNESS-MAIN WIRE,LO LEVEL Substituted by 2460733

2460703

$204.76

12

DECAL,CONSOLE,IGNITION

7077367

Unavailable

13

WASHER(10)

7558203

$3.19

13

WASHER(10)

7558203

$3.19

14

SCREW(10)

7517441

$2.39

14

SCREW(10)

7517441

$2.39

15

KIT,IGN.SWITCH

2200358

$76.89

16

Cable, Choke Control (Incl. 17,23)

7080290

$105.22

17

LEVER,CHOKE Substituted by 2201439 (Incl. Pin)

5432943

Unavailable

18

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

19

WASHER,NYLON

7555932

$2.39

20

RIVET, POP(50)

7621330

$1.49

21

GUIDE-RECOIL

5243049

$9.70

22

WASHER-LOCK(10)

7571610

$3.99

23

NUT,CHOKE

5432944

$8.79

24

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on undersid

5410611

Unavailable

25

NUT,IGNITION

7547035

$8.79

26

CONSOLE,HYB,XC,BLK Substituted by 5433693

5432892

Unavailable
