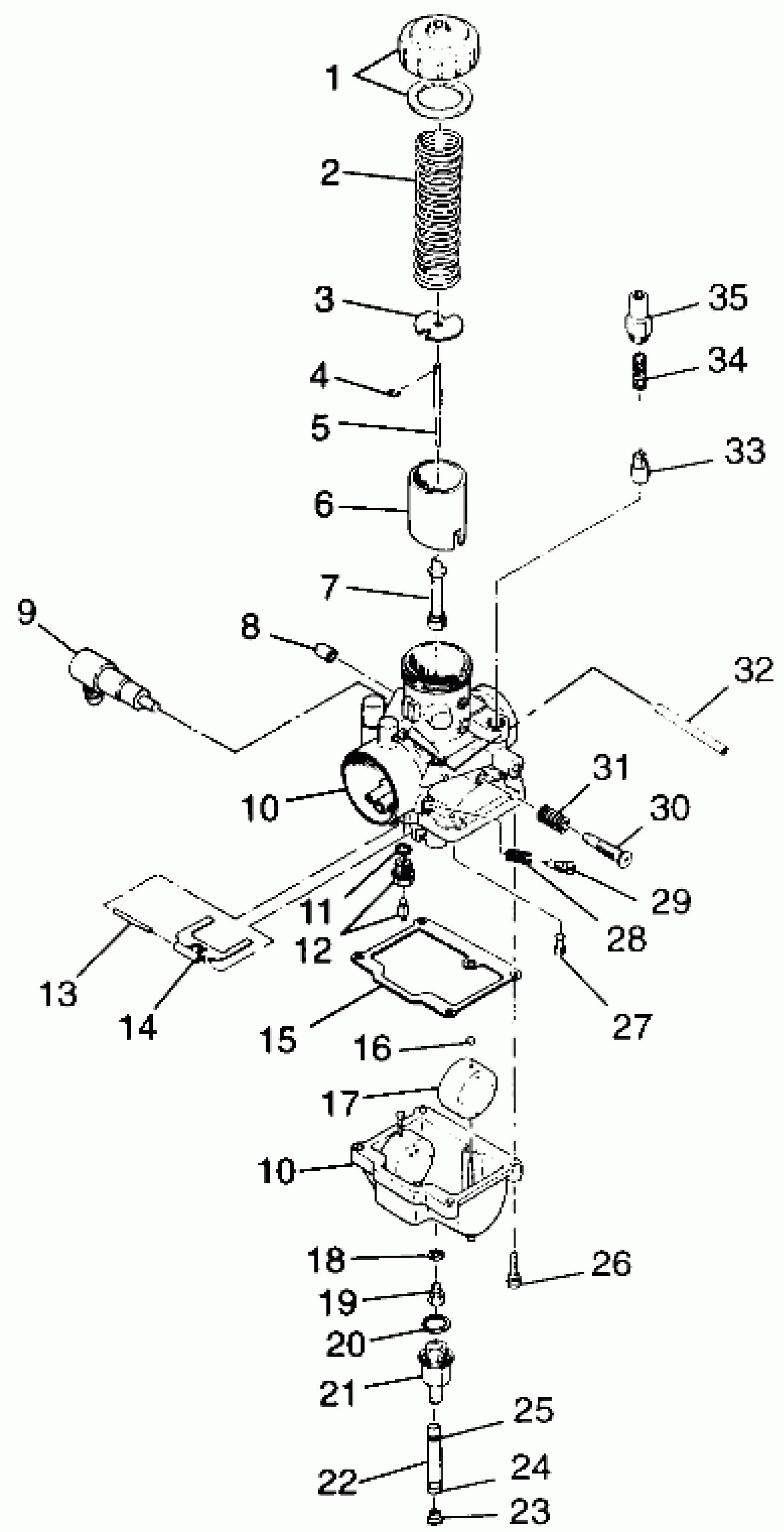

Polaris XCF - 099SP4AS CARBURETOR - 099SP4AS (4948284828c007) Diagram

#

Description
Price

1

TOP ASM,MIX.CHAMBER Substituted by 3130184 (Incl. Gasket)

3130877

Unavailable

2

SPRING,THROTTLE Substituted by 3130439

3130889

Unavailable

3

PLATE,THROTTLE Substituted by 3130027

3130879

Unavailable

4

E-RING,(10)

3130508

$6.46

5

NEEDLE,JET,6DP01-3 Substituted by 3130156 (6DP1-3)

3130890

Unavailable

6

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

7

JET,NEEDLE,P-8

3130891

Unavailable

8

CAP

3130479

$14.56

9

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

10

CARBURETOR (Incl. 1-21,26-35)

3130953

Unavailable

10

CARBURETOR (Incl. 1-21,26-35)

3130953

Unavailable

11

PACKING(10)

3130017

$4.03

12

VALVE,NEEDLE Substituted by 3131146 (1.5)

3130016

$48.56

13

PIN, FLOAT

3130361

$8.89

14

ARM,FLOAT

3130018

$24.27

15

PACKING,FLOAT CHAMBER

3130020

$16.17

16

CAP,(10)

3130237

$4.03

17

FLOAT ASM.

3130430

$43.56

18

WASHER (10)

3130014

$1.59

19

JET,MAIN,HX.HD#270(10) (#270)

3130130

$7.27

20

O RING

3130239

Unavailable

21

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

22

FUEL LINE, 5 FT.

8450045-153

Unavailable

23

PLUG,TRAP

5431893

$12.94

24

CLAMP,HOSE(10)

7080544

Unavailable

25

CLAMP,SPRING,(10)

7080534

$1.59

26

SCREW & WASHER(10)

3130025

$3.19

27

JET,PILOT,#40(10) (#40)

3130067

$10.99

28

SPRING,AIR ADJUST

3130012

$8.89

29

SCREW,AIR

3130011

$19.99

30

SCREW,THROT.STOP

3130437

Unavailable

31

SPRING,THROTTLE ADJ.

3130010

$8.89

32

Hose

3085932

Unavailable

33

PLUNGER ASM, STARTER

3130328

$32.37

34

SPRING,PLUNGER Substituted by 3130006

3130884

Unavailable

35

HOLDER,GUIDE

3130199

$28.32
