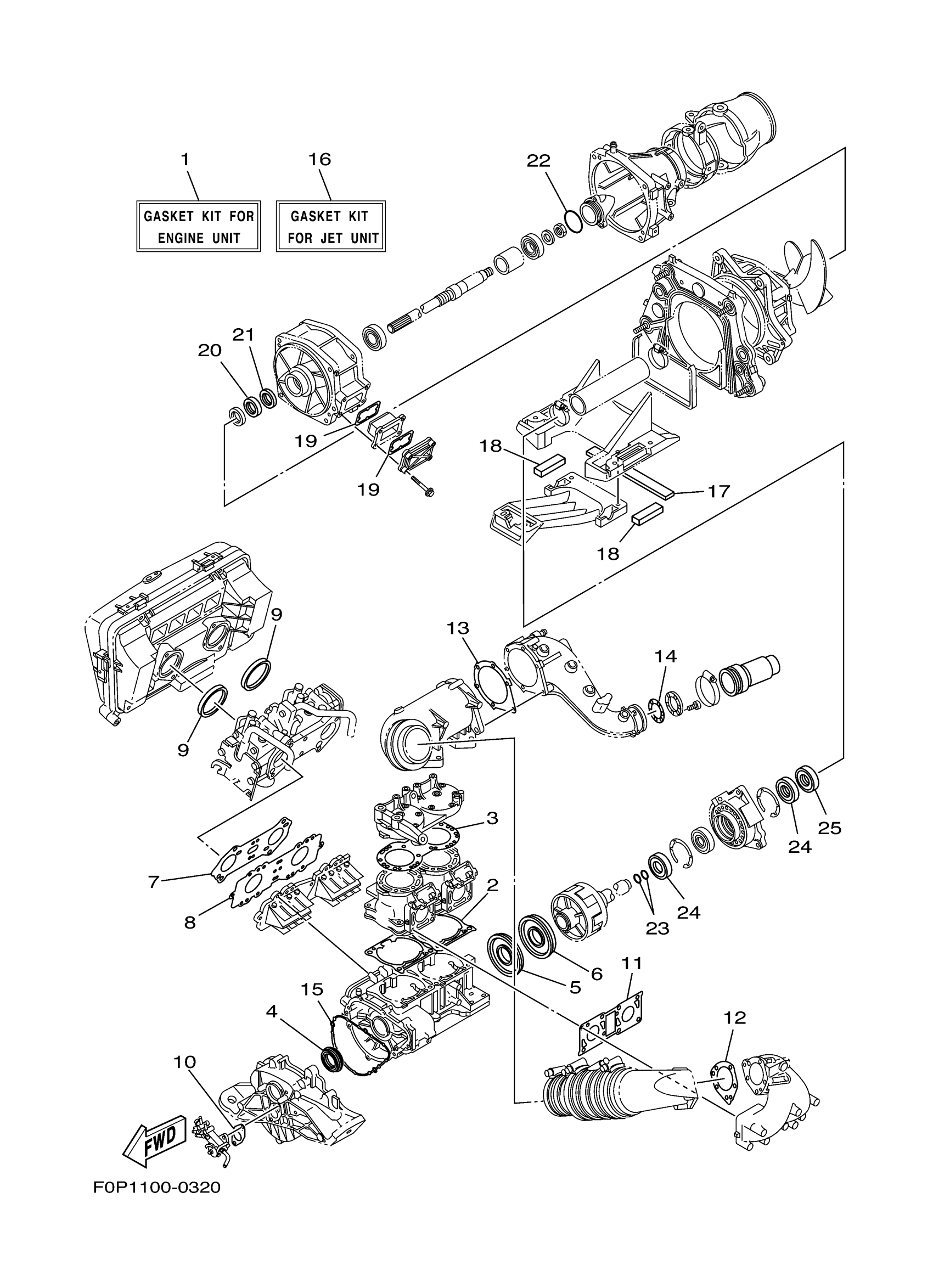

Yamaha XA800Z (XL800) F0P3 2001 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

66E-W0001-02-00

Unavailable

2

GASKET, CYLINDER

66E-11351-02-00

$21.32

3

. GASKET, CYLINDER HEAD 1

66E-11181-00-00

$53.99

4

. OIL SEAL

93103-35M03-00

Unavailable

5

OIL SEAL

93101-34001-00

$21.10

6

OIL SEAL

93101-34002-00

$21.10

7

. GASKET, MANIFOLD

66E-13556-00-00

$21.95

8

PLATE,REED VALVE

66E-13624-10-94

$77.26

9

. O-RING

66E-13473-00-00

$4.81

10

GASKET, PUMP CASE

63M-13116-00-00

$2.80

11

. GASKET, EXHAUST PIPE

66E-14613-00-00

$39.38

12

. GASKET, MUFFLER DAMPER 2

66E-14749-00-00

$33.99

13

GASKET, EXHAUST OUTER COVER

66E-41124-10-00

$53.99

14

. GASKET, EXHAUST PIPE

66E-14623-00-00

$4.09

15

. O-RING

66E-81168-10-00

$21.95

16

GASKET KIT FOR JET UNIT

66V-W0001-20-00

Unavailable

17

FELT, PACKING

66V-R1367-00-00

Unavailable

18

FELT, PACKING 2

66V-R1368-00-00

Unavailable

19

. O-RING

66V-42414-00-00

$5.18

20

OIL SEAL

93101-28M66-00

Unavailable

21

OIL SEAL

93101-28002-00

$13.40

22

. O-RING

93210-46M16-00

$7.15

23

O-RING

93210-19001-00

$3.49

24

OIL SEAL(62T)

93101-25M55-00

Unavailable

25

OIL SEAL

93101-24001-00

Unavailable
