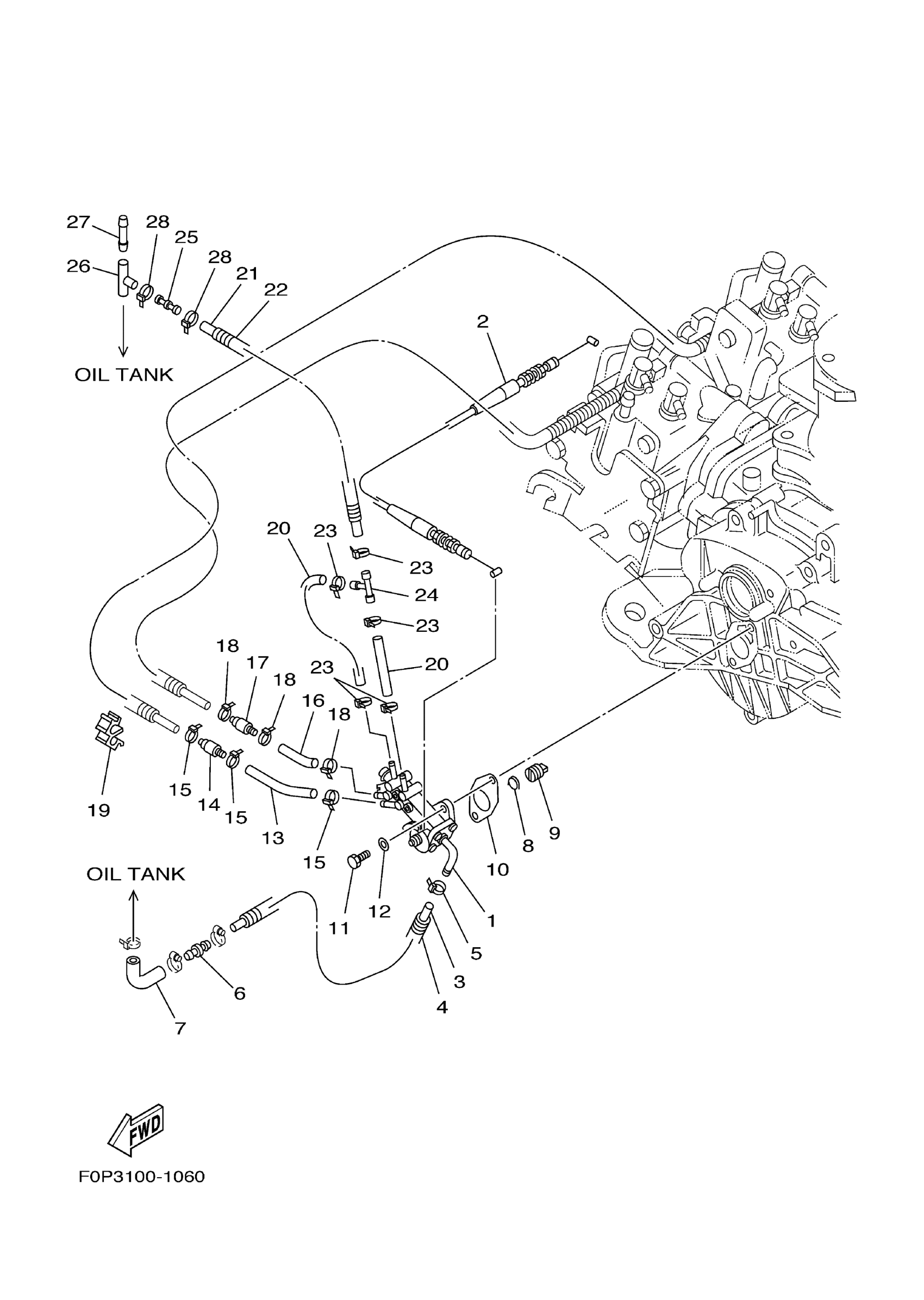

Yamaha XA800Z (XL800) F0P3 2001 OIL PUMP Diagram
#
1
OIL INJECTION PUMP ASSY
66E-13200-02-00
Unavailable
2
PUMP CABLE ASSY
66E-26320-00-00
Unavailable
3
HOSE (L600)
90445-11012-00
Unavailable
4
TUBE (L530)
90447-13002-00
Unavailable
5
CLAMP
90465-10098-00
Unavailable
6
CONNECTION
66V-51142-00-00
Unavailable
7
PIPE, OIL 1
66V-13416-01-00
Unavailable
8
SPRING
66E-13469-00-00
Unavailable
9
JOINT
65U-13132-00-00
Unavailable
10
GASKET, PUMP CASE
63M-13116-00-00
Unavailable
11
BOLT(7U8)
97080-06020-00
Unavailable
12
WASHER, PLAIN (646)
92990-06600-00
$2.80
13
HOSE(62T)
90446-07M48-00
Unavailable
14
VALVE, CHECK
6R3-13183-10-00
Unavailable
15
CLAMP
90465-10098-00
Unavailable
16
HOSE(62T)
90446-07M48-00
Unavailable
17
VALVE, CHECK
6R3-13183-10-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
CLAMP
90464-07M20-00
Unavailable
20
HOSE (L200)
90445-07MA3-00
Unavailable
21
HOSE (L770)
90445-07006-00
Unavailable
22
TUBE (L650)
90447-07002-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
PIPE, JOINT 3
6E0-24378-00-00
Unavailable
25
JOINT
63M-13132-00-00
Unavailable
26
PIPE, JOINT 3
63M-24378-00-00
Unavailable
27
PIPE, JOINT 1
6G8-24376-00-00
Unavailable
28
CLAMP
90465-10098-00
Unavailable
