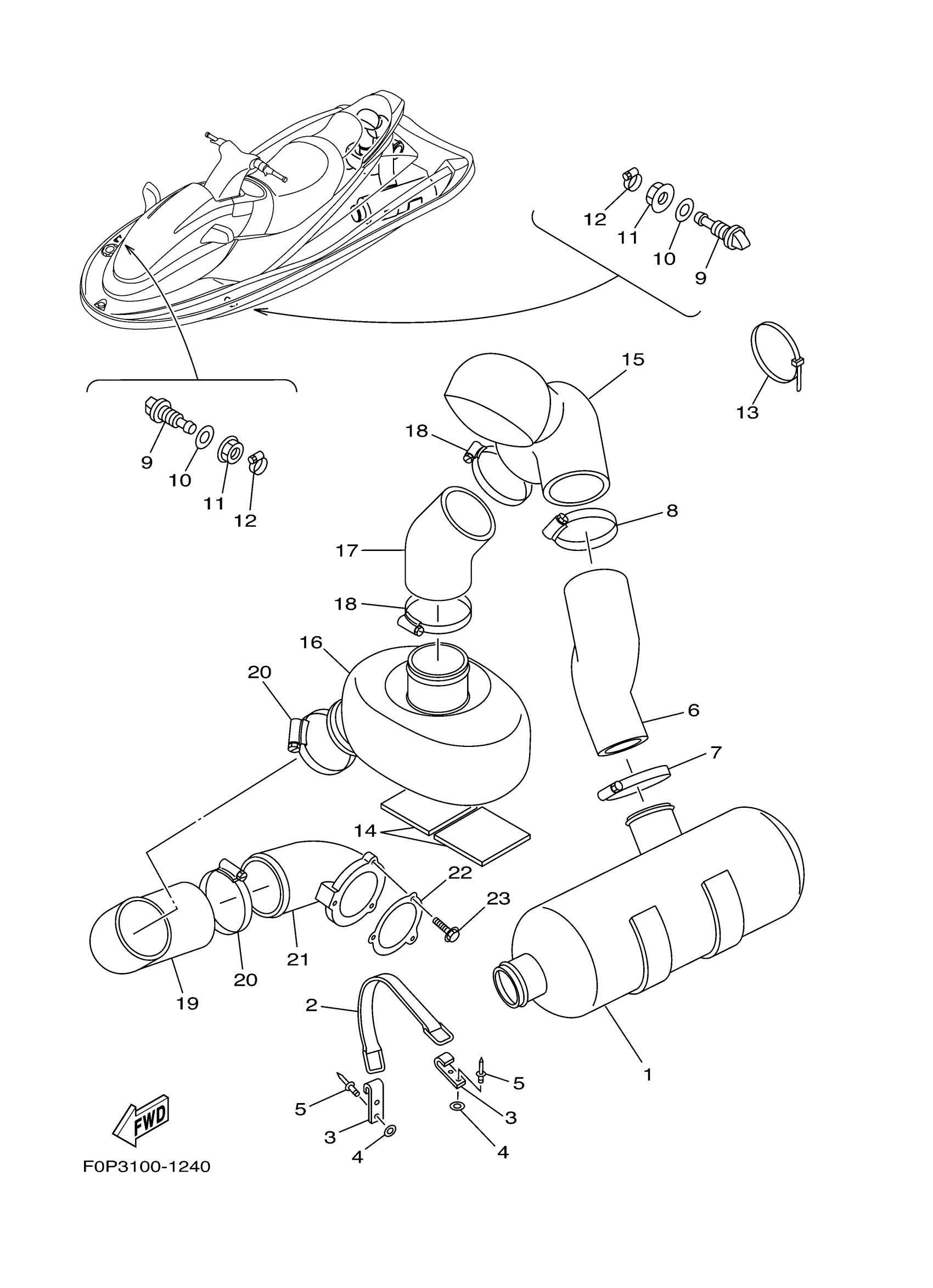

Yamaha XA800Z (XL800) F0P3 2001 EXHAUST 2 Diagram

#

Description
Price

1

WATER LOCK COMP.

F0P-67550-01-00

Unavailable

2

BAND, WATER LOCK

GA7-6756E-00-00

Unavailable

3

HOOK A

GA7-65772-00-00

Unavailable

4

WASHER

9299R-05200-00

Unavailable

5

RIVET, BLIND

90267-489U7-00

Unavailable

6

HOSE, EXHAUST 1

F0P-U758B-00-00

Unavailable

7

BAND, HOSE 75

90601-175UR-00

Unavailable

8

BAND, HOSE 95

90601-195UD-00

Unavailable

9

PILOT, WATER

F0P-6753B-00-00

Unavailable

10

GASKET(GJ1)

90430-16910-00

Unavailable

11

NUT

F0X-62733-00-00

Unavailable

12

BAND, HOSE 18

90601-118UF-00

Unavailable

13

CLAMP

90464-32801-00

Unavailable

14

PACKING, HOSE 2

F0D-U7578-00-00

Unavailable

15

RESONATOR, 2

F0D-6753D-01-00

Unavailable

16

TANK, WATER

F0D-64261-02-00

Unavailable

17

HOSE, EXHAUST 2

F0D-6758C-01-00

Unavailable

18

BAND, HOSE 95

90601-195UD-00

Unavailable

19

HOSE, EXHAUST 3

F0D-6758D-01-00

Unavailable

20

BAND, HOSE 95

90601-195UD-00

Unavailable

21

THRU-HULL,EXHAUST

F0D-67565-01-00

Unavailable

22

PACKING

F0D-U7525-01-00

Unavailable

23

BOLT, WITH WASHER

90119-06896-00

Unavailable
