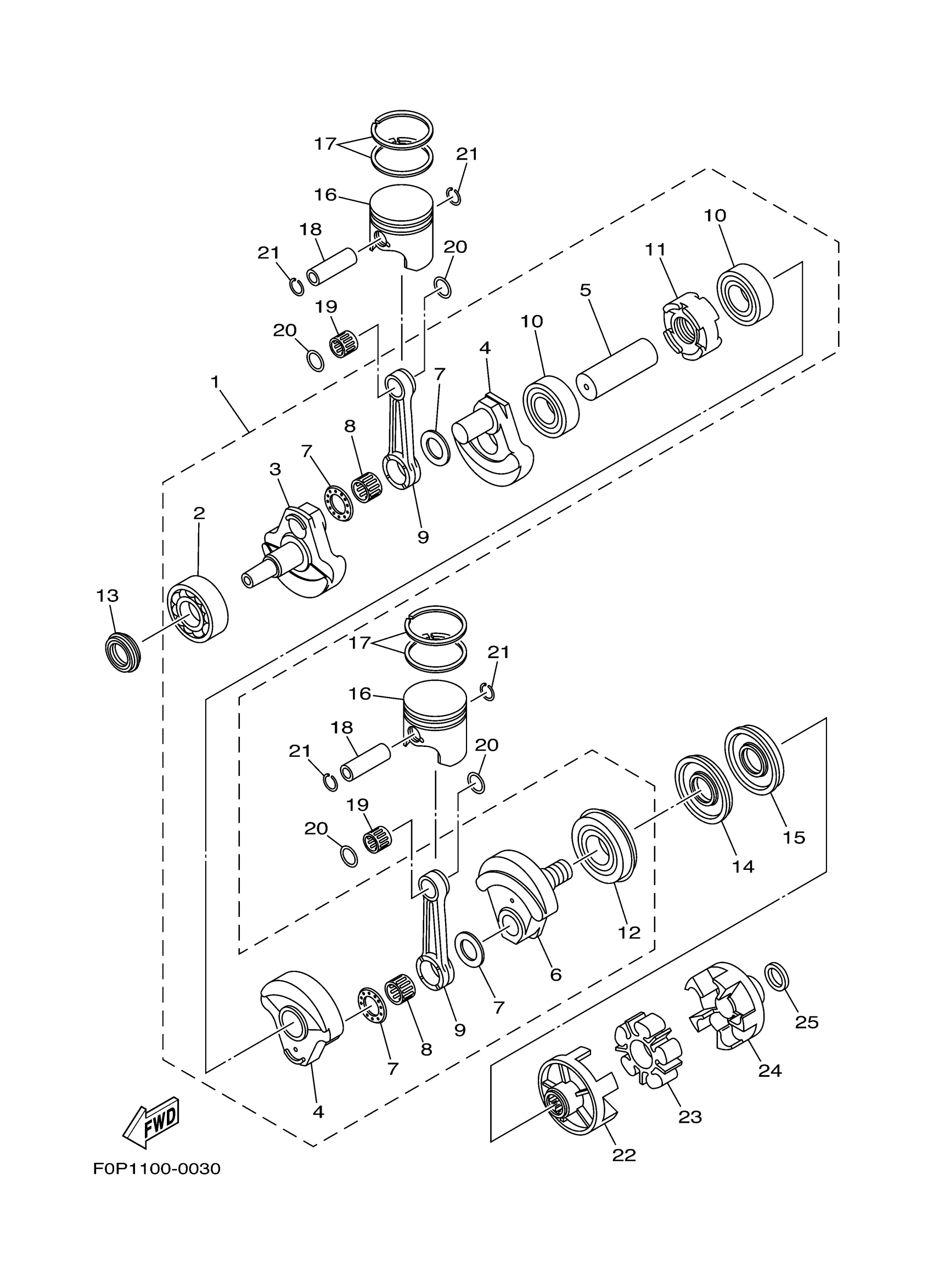

Yamaha XA800Z (XL800) F0P3 2001 CRANKSHAFT. PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

66E-11400-00-00

Unavailable

2

. BEARING

93305-307U0-00

$210.43

3

. CRANK 1

66E-11412-00-00

Unavailable

4

. CRANK 2

66E-11422-00-00

$207.45

5

. CRANK 3

66E-11431-00-00

$141.78

6

. CRANK 4

66E-11442-00-00

$332.82

7

. WASHER, CRANK PIN

66E-11685-00-00

$13.99

8

. BEARING

93310-627U6-00

$61.93

9

. ROD, CONNECTING

66E-11651-00-00

$98.49

10

. BEARING

93306-208U1-00

$68.64

11

. SEAL, LABYRINTH 1

66E-11515-00-00

Unavailable

12

. BEARING

93306-308U1-00

$102.97

13

. OIL SEAL

93103-35M03-00

Unavailable

14

OIL SEAL

93101-34001-00

$20.09

15

OIL SEAL

93101-34002-00

$20.09

16

PISTON (STD, RED)

66E-11631-01-A0

$170.13

16

PISTON (STD, ORANGE)

66E-11631-01-B0

$177.60

16

PISTON (STD, GREEN)

66E-11631-01-C0

Unavailable

16

PISTON (STD, PURPLE)

66E-11631-01-D0

$170.13

17

PISTON RING SET (STD)

66E-11603-01-00

$46.30

18

PIN, PISTON

60T-11633-00-00

$33.01

19

BEARING

93310-422U2-00

$28.11

20

WASHER, PLATE

90201-22M04-00

Unavailable

21

CLIP, PISTON PIN

66E-11634-00-00

$0.92

22

FLANGE, COUPLING

66E-45813-10-94

$101.95

23

RUBBER SHAFT COUPLING

66E-4581J-00-00

$58.19

24

FLANGE, COUPLING

66E-45813-10-94

$101.95

25

WASHER, PLATE

90201-27008-00

Unavailable
