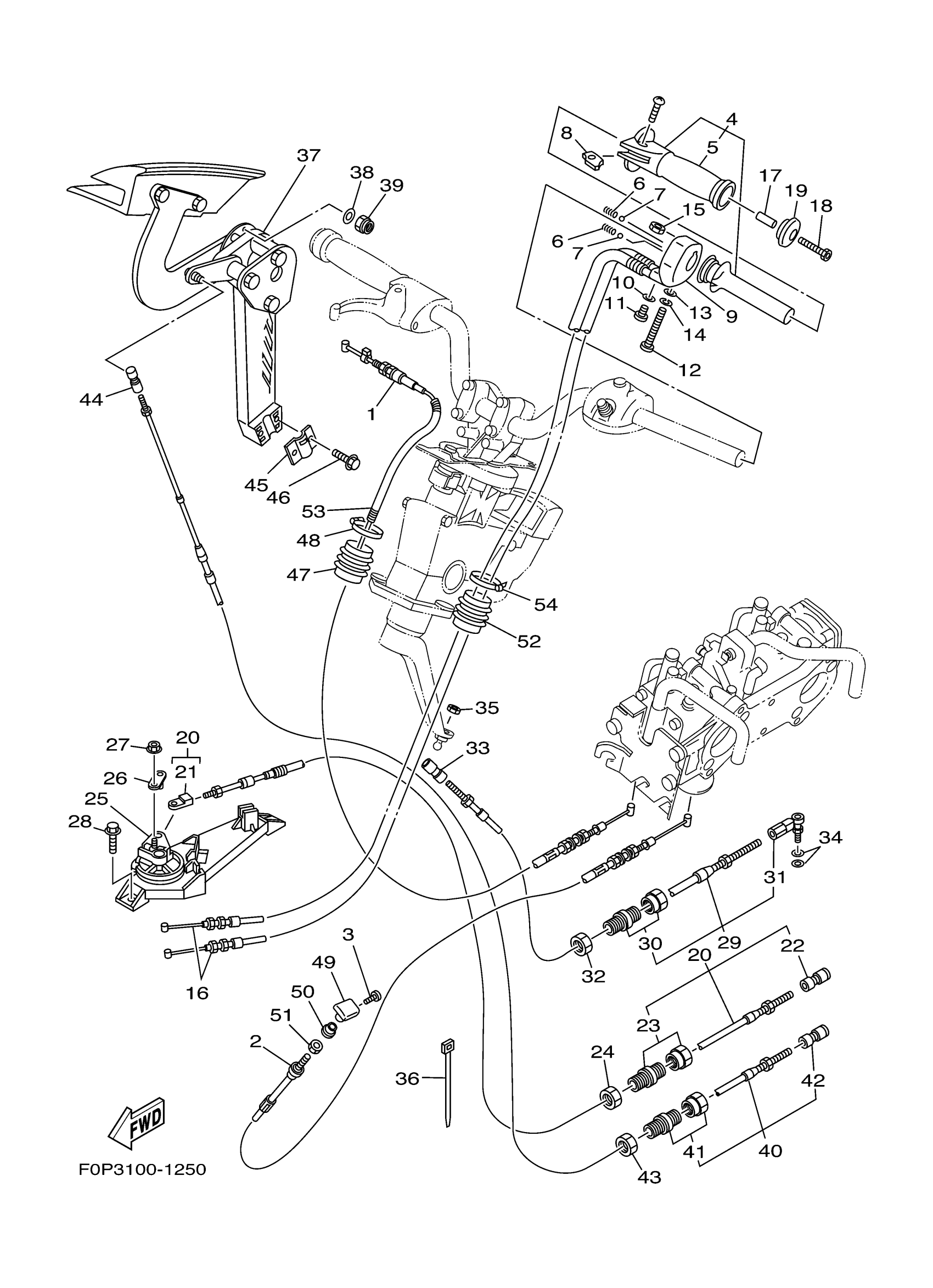

Yamaha XA800Z (XL800) F0P3 2001 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

66E-67252-00-00

$134.83

2

CABLE, CHOKE

67A-67242-00-00

Unavailable

3

SCREW

90149-03M15-00

$1.44

4

GRIP, HANDLE ASSY.

GP7-U157A-00-00

$454.53

5

. GRIP, HANDLE

GP7-U155C-00-00

$58.88

6

SPRING

GP7-U152P-00-00

$12.86

7

BALL

GP7-U152R-00-00

Unavailable

8

LEVER ASSY

GP7-U151M-00-00

Unavailable

9

HOUSING ASSY

GP7-U152M-00-00

Unavailable

10

WASHER, PLAIN (646)

92990-04600-00

$0.91

11

SCREW, BINDING (M01)

98980-04010-00

$5.02

12

SCREW PAN HEAD

98580-06565-00

Unavailable

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

WASHER

9299R-06100-00

Unavailable

15

NUT, SPECIAL

GH1-U143B-00-00

Unavailable

16

CABLE, NOZZLE CONTROL 2

F0D-U153D-01-00

Unavailable

17

COLLAR

90387-05800-00

$3.86

18

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

19

GRIP, END

GP7-U155F-00-00

$2.88

20

CABLE,NOZZLE CONTROL 3

F0D-6153E-18-00

Unavailable

21

. END, CABLE

GH1-U046C-00-00

Unavailable

22

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

23

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

24

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

25

REMOCON,NOZZLE 2

F0D-U153J-10-00

Unavailable

26

PIN

F0D-U152C-10-00

Unavailable

27

NUT, NYLON

9572R-06300-00

$2.80

28

BOLT, WITH WASHER

90119-069UJ-00

$2.80

29

CABLE, STEERING

F0D-U1481-10-00

Unavailable

30

CONNECTOR, CABLE

GK5-67267-00-00

Unavailable

31

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

32

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

33

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

34

WASHER, PLATE

90201-06906-00

$2.80

35

NUT

9538R-06700-00

$1.01

36

BAND

90601-200U1-00

$2.77

37

REMO CON. LEVER ASSY.

F0D-6134A-04-00

Unavailable

38

WASHER

9299R-06200-00

$0.43

39

NUT, NYLON

9572R-06300-00

$2.80

40

CABLE, REVERSE

F0V-U149C-01-00

Unavailable

41

. CONNECTOR, CABLE

EU0-67267-10-00

Unavailable

42

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

43

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

44

SHAFT,JOINT BALL

EU0-61461-30-00

$45.13

45

STOPPER, CABLE

GH1-61468-01-00

$8.32

46

BOLT, WITH WASHER

90119-069UJ-00

$2.80

47

GROMMET

F0D-6822E-00-00

$18.49

48

BAND

90601-200U1-00

$2.77

49

. KNOB

EW2-67243-00-00

$13.33

50

. NUT, COMPRESSION

GP7-U724E-00-00

Unavailable

51

. NUT

GA9-U724F-01-00

Unavailable

52

GROMMET

F0D-6822E-00-00

$18.49

53

TUBE, 2

F0D-6773E-00-00

$16.99

54

BAND

90601-200U1-00

$2.77
