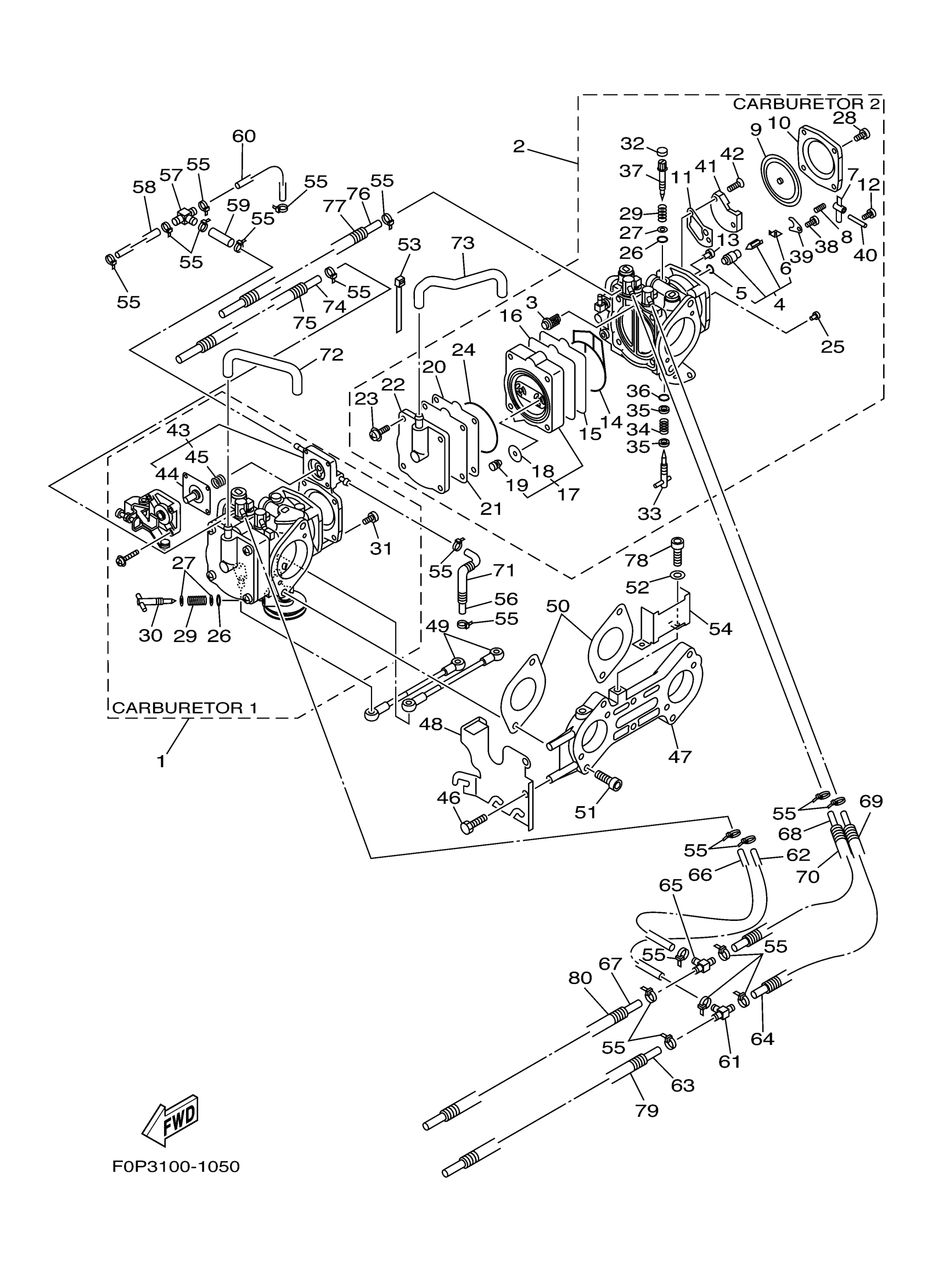

Yamaha XA800Z (XL800) F0P3 2001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

67A-14301-03-00

$1,299.98

2

CARBURETOR ASSY 2

67A-14302-03-00

$1,299.98

3

. STRAINER

6R7-14569-00-00

$11.48

4

NEEDLE

64T-14916-01-00

$49.49

5

O-RING

8F2-14147-00-00

$2.64

6

CLIP

7EG-14159-00-00

$4.27

7

. ARM, FLOAT

6K8-14547-01-00

$8.26

8

. SPRING

6R7-14253-00-00

$2.49

9

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

10

. BODY, PUMP 1

6R7-14542-00-00

$56.05

11

. GASKET

6K8-14536-11-00

$8.14

12

. SCREW

6K8-14503-02-00

Unavailable

13

JET, MAIN (#150)

3G2-14231-30-A0

$9.99

13

JET, MAIN (#150)

3G2-14231-30-A0

$9.99

14

. O-RING

66E-14563-01-00

$66.65

15

. DIAPHRAGM

66E-24471-00-00

$32.99

16

. DIAPHRAGM

66E-24411-00-00

$39.38

17

BODY 2

66E-24413-01-00

$116.65

18

.. VALVE, CHECK 1

66E-24362-00-00

$7.27

19

.. BUSH, FUEL PUMP

65U-24492-00-00

$15.55

20

. VALVE, CHECK

66E-24421-00-00

$27.58

21

. GASKET, FUEL PUMP 1

66E-24431-00-00

$16.99

22

. COVER

66E-24452-00-00

Unavailable

23

. SCREW, PAN HEAD

90157-05M17-00

Unavailable

24

. O-RING

66E-14564-01-00

$38.99

25

JET, MAIN (# 90)

830-14231-18-00

Unavailable

26

. O-RING

6K8-14562-00-00

$1.88

27

WASHER,NEEDLE

812-14235-00-00

$2.44

28

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

29

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

30

. SCREW, ADJUST

66E-14521-00-00

Unavailable

31

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

32

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

33

. SCREW, PILOT ADJUSTING

66E-14211-00-00

Unavailable

34

. SPRING

6K8-14589-00-00

$3.70

35

WASHER, NEEDLE

822-14235-00-00

Unavailable

36

O-RING

583-14561-00-00

Unavailable

37

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

38

. SCREW

6M6-14503-00-00

$5.55

39

. PLATE

6K8-14527-11-00

$11.35

40

. PIN, FLOAT

439-14186-00-00

$12.49

41

. BODY 1

66E-24412-00-00

Unavailable

42

SCREW, STOP

6K8-14523-12-00

Unavailable

43

. COVER, CARBURETOR

66E-14280-00-00

$386.35

44

.. DIAPHRAGM ASSY

66E-14170-00-00

Unavailable

45

.. SPRING

66E-14286-00-00

Unavailable

46

BOLT

90101-06M25-00

Unavailable

47

PLATE

66E-14243-00-00

Unavailable

48

BRACKET 1

66E-14291-00-00

Unavailable

49

ROD, ACCEL. LEVER

66E-41217-00-00

Unavailable

50

. GASKET

66E-14398-00-00

$31.57

51

BOLT, HOLDING

66E-14162-01-00

$10.99

52

WASHER, SPRING

90204-06M01-00

Unavailable

53

CLIP

4KM-14137-00-00

Unavailable

54

PLATE

66E-14146-00-00

$38.99

55

CLIP, PIPE

35H-14139-00-00

Unavailable

56

HOSE, VACUUM SENSING 5

68V-13534-00-00

Unavailable

57

NIPPLE

4N0-14251-00-00

Unavailable

58

. HOSE

90445-07M78-00

Unavailable

59

. HOSE

90445-07M42-00

Unavailable

60

. HOSE

90445-07M79-00

Unavailable

61

NIPPLE

66E-14251-00-00

Unavailable

62

. HOSE

90445-10MH0-00

Unavailable

63

HOSE

67A-14294-00-00

Unavailable

64

. HOSE

90445-10MH2-00

$34.83

65

NIPPLE

66E-14251-00-00

Unavailable

66

. HOSE

90445-10MH3-00

$27.99

67

PIPE

67A-14298-00-00

Unavailable

68

. HOSE

90445-10MH5-00

Unavailable

69

HOSE

90446-14M98-00

Unavailable

70

HOSE

90446-14M99-00

$15.89

71

HOSE

90446-10MA2-00

$16.99

72

PIPE 4

66E-24314-00-00

$36.35

73

PIPE 5

66E-24315-00-00

$45.44

74

HOSE

90446-07M96-00

$11.35

75

HOSE

90446-10MA0-00

$16.99

76

HOSE

90446-07M97-00

$11.35

77

HOSE

90446-10MA1-00

$22.71

78

BOLT, HOLDING

66E-14162-00-00

$13.99

79

HOSE

90446-17ME5-00

Unavailable

80

HOSE

90446-17MA7-00

Unavailable
