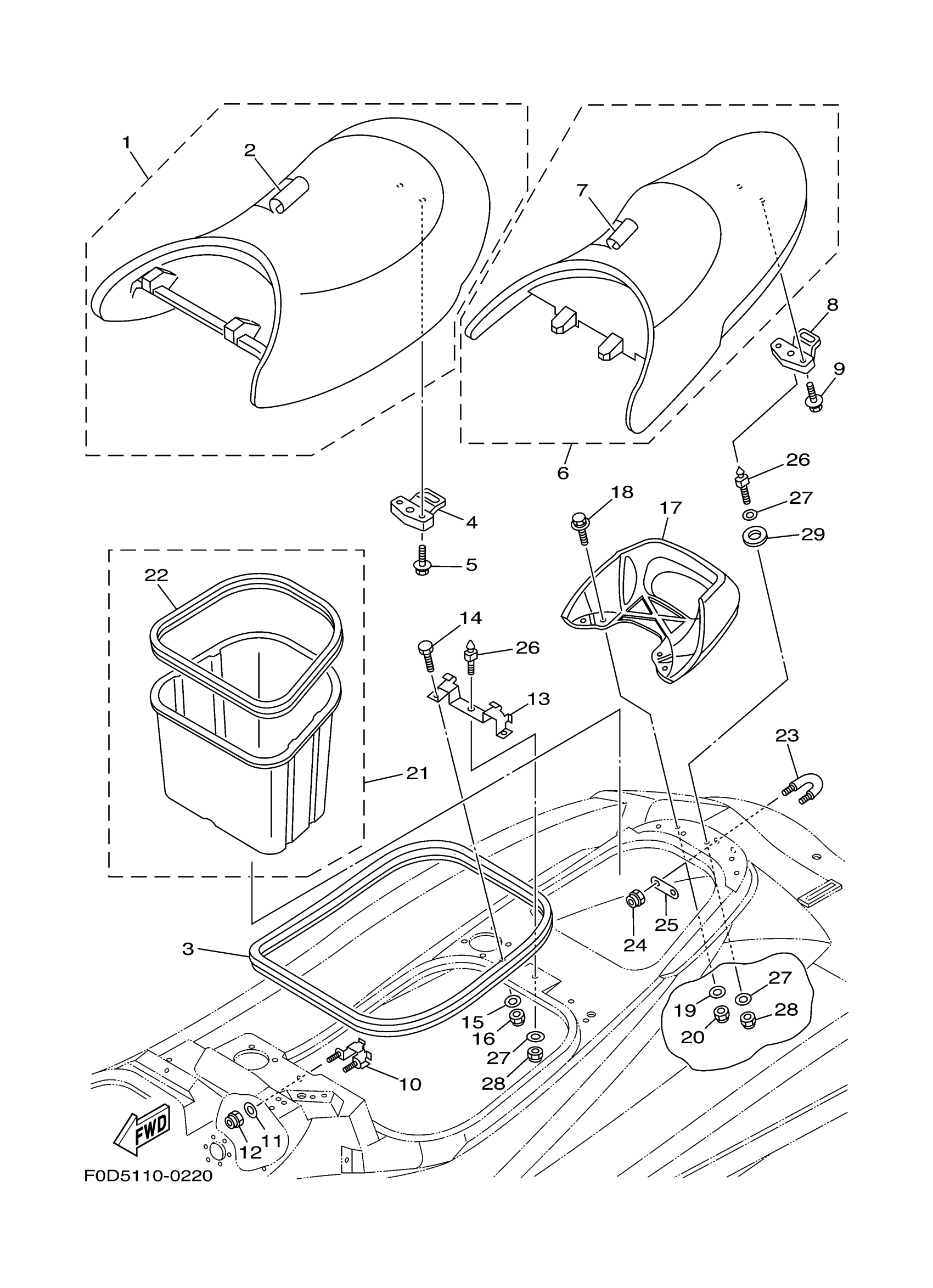

Yamaha XA800Y (XL800) F0P1 2000 SEAT. UNDER LOCKER Diagram

#

Description
Price

1

SEAT ASSY (DARK RED)

F0D-U371A-21-00

Unavailable

2

. COVER, SEAT 1

F0D-U371B-20-00

Unavailable

3

PACKING 4

F0D-U266C-00-00

Unavailable

4

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

F0D-U372A-20-00

Unavailable

7

. COVER, SEAT

F0D-U372B-20-00

Unavailable

8

SEAT LOCK ASSY

F0D-63850-01-00

$52.87

9

BOLT, WITH WASHER

90119-06808-00

$2.16

10

STAY, SEAT 1

F0D-6378C-00-00

Unavailable

11

WASHER

9299R-06200-00

$0.43

12

NUT, NYLON

9572R-06300-00

$2.80

13

STAY, SEAT 2

F0D-6378D-01-00

$90.89

14

BOLT

97080-10025-00

Unavailable

15

WASHER

9299R-10200-00

$1.63

16

NUT, NYLON

9572R-10300-00

$3.37

17

GRIP, HAND

F0D-U271B-00-00

Unavailable

18

BOLT, WITH WASHER

90119-06820-00

$3.52

19

WASHER

9299R-06200-00

$0.43

20

NUT, NYLON

9572R-06300-00

$2.80

21

UNDER LOCKER ASSY

F0D-U474A-00-00

Unavailable

22

. PACKING 5

F0D-U266D-00-00

Unavailable

23

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

24

NUT, NYLON (6J8)

95780-08300-00

$10.55

25

PLATE A

GP7-U4953-10-00

$3.52

26

PIN

GH1-U3774-00-00

$19.38

27

WASHER

9299R-10200-00

$1.63

28

NUT, NYLON

9572R-10300-00

$3.37

29

PLATE, DAMPER

F0D-6376D-00-00

$5.45
