Description

Price

1

CLAMP

90465-10098-00

Unavailable

2

BOLT, WASHER BASED

90105-08M86-00

$15.99

3

BOLT

90109-06M00-00

Unavailable

4

. GASKET, MANIFOLD

66E-13556-00-00

Unavailable

5

PLATE,REED VALVE

66E-13624-10-94

Unavailable

6

BOLT(62Y)

97013-06025-00

$1.06

7

WASHER, PLAIN (646)

92990-06600-00

$2.80

8

. PIN, DOWEL

93606-19M23-00

Unavailable

9

REED VALVE ASSY

66E-13610-00-00

Unavailable

10

. REED SET

66E-W0004-00-00

Unavailable

11

COVER, CLEANER CASE 2

66E-1441E-00-00

Unavailable

12

. RUBBER, SEAL 2

66E-42717-00-00

Unavailable

13

COVER SUB ASSY

66E-14480-19-00

Unavailable

14

. SEAL

66E-14457-10-00

Unavailable

15

. SEAL

66E-14452-00-00

Unavailable

16

GROMMET

6K8-14435-00-00

Unavailable

17

. HOLDER

66E-13898-11-00

Unavailable

18

ELEMENT, AIR CLEANER

66E-14451-00-00

Unavailable

19

BOLT(J52)

97080-06035-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$2.80

21

BOLT, HEXAGON

97013-06045-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

$2.80

23

. O-RING

66E-13473-00-00

Unavailable

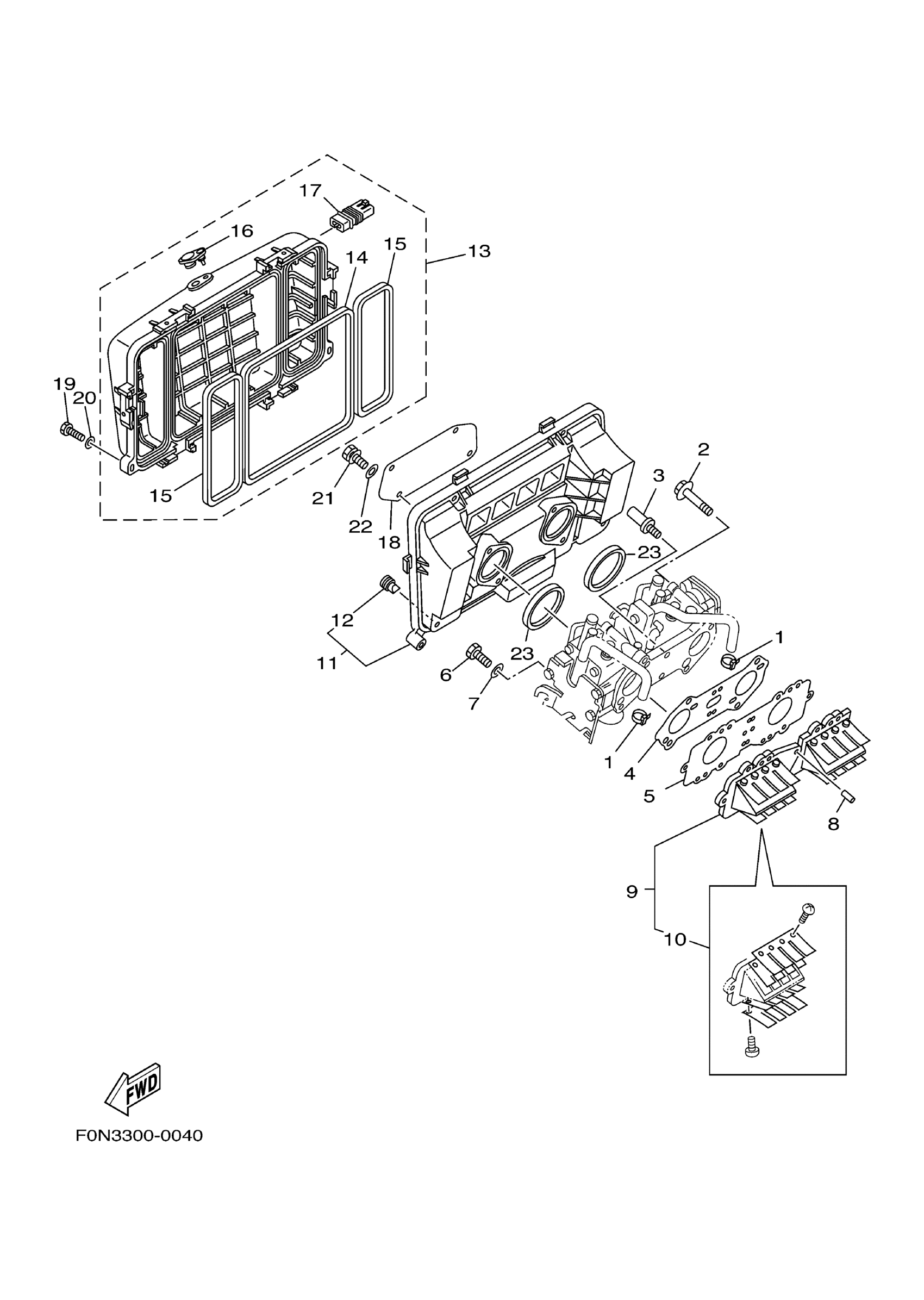

Yamaha XA800Y (XL800) F0P1 2000 INTAKE Diagram

CLAMP

BOLT, WASHER BASED

BOLT

. GASKET, MANIFOLD

PLATE,REED VALVE

BOLT(62Y)

WASHER, PLAIN (646)

. PIN, DOWEL

REED VALVE ASSY

. REED SET

COVER, CLEANER CASE 2

. RUBBER, SEAL 2

COVER SUB ASSY

. SEAL

. SEAL

GROMMET

. HOLDER

ELEMENT, AIR CLEANER

BOLT(J52)

WASHER, PLAIN (646)

BOLT, HEXAGON

WASHER, PLAIN (646)

. O-RING
