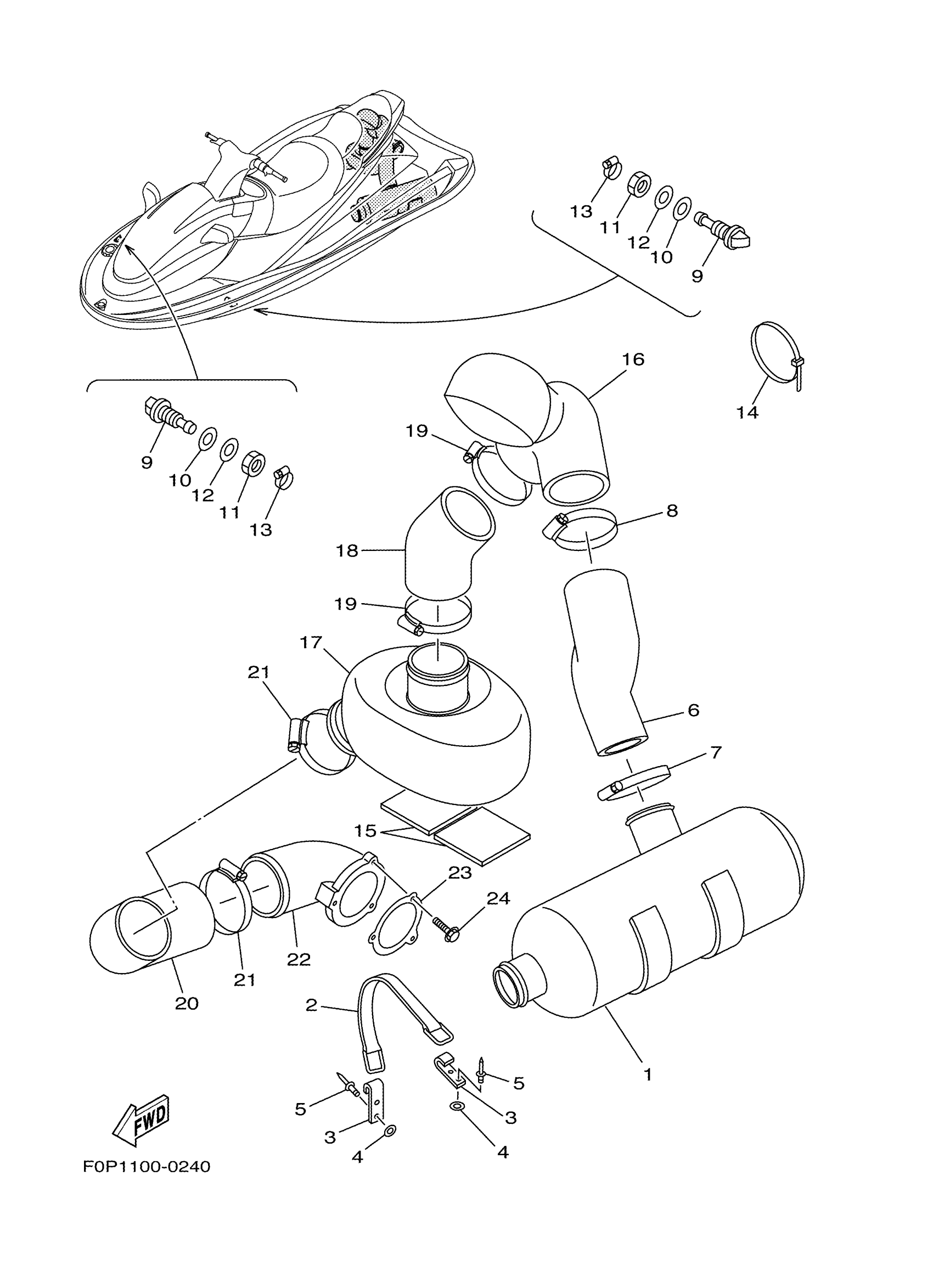

Yamaha XA800Y (XL800) F0P1 2000 EXHAUST 2 Diagram
#
Description
Price
1
WATER LOCK COMP.
F0P-67550-01-00
Unavailable
2
BAND, WATER LOCK
GA7-6756E-00-00
Unavailable
3
HOOK A
GA7-65772-00-00
Unavailable
4
WASHER
9299R-05200-00
Unavailable
5
RIVET, BLIND
90267-489U7-00
Unavailable
6
HOSE, EXHAUST 1
F0P-U758B-00-00
Unavailable
7
BAND, HOSE 75
90601-175UR-00
Unavailable
8
BAND, HOSE 95
90601-195UD-00
Unavailable
9
PILOT, WATER
F0D-6753B-02-00
Unavailable
10
GASKET(GJ1)
90430-16910-00
Unavailable
11
NUT
GU0-61652-00-00
Unavailable
13
BAND, HOSE 18
90601-118UF-00
Unavailable
14
CLAMP
90464-32801-00
Unavailable
15
PACKING, HOSE 2
F0D-U7578-00-00
Unavailable
16
RESONATOR, 2
F0D-6753D-01-00
Unavailable
17
TANK, WATER
F0D-64261-02-00
Unavailable
18
HOSE, EXHAUST 2
F0D-6758C-01-00
Unavailable
19
BAND, HOSE 95
90601-195UD-00
Unavailable
20
HOSE, EXHAUST 3
F0D-6758D-01-00
Unavailable
21
BAND, HOSE 95
90601-195UD-00
Unavailable
22
THRU-HULL,EXHAUST
F0D-67565-01-00
Unavailable
23
PACKING
F0D-U7525-01-00
Unavailable
24
BOLT, WITH WASHER
90119-06896-00
Unavailable
