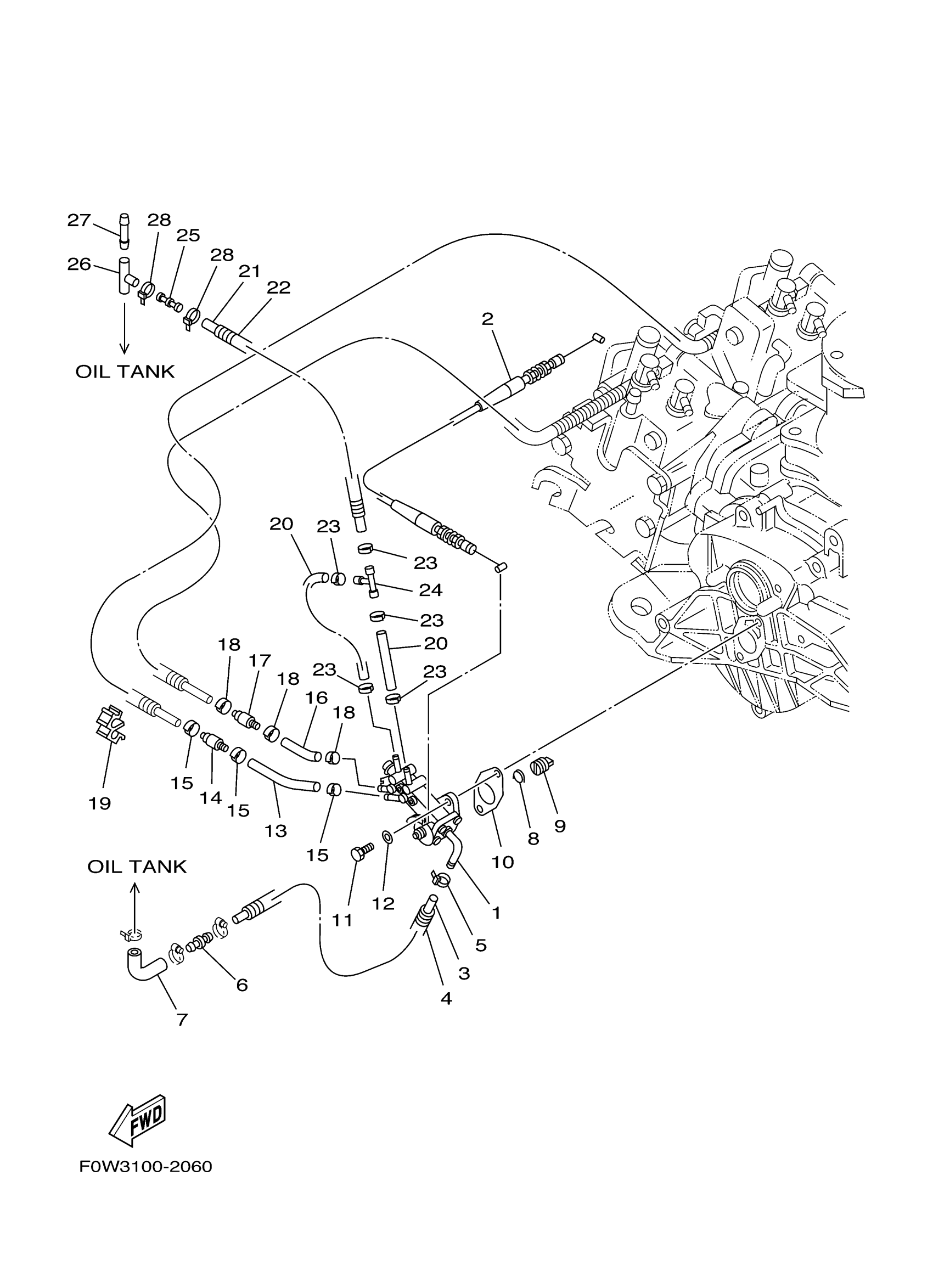

Yamaha XA800AC (XLT800) F1F7 2004 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY

66E-13200-02-00

Unavailable

2

PUMP CABLE ASSY

66E-26320-00-00

Unavailable

3

HOSE (L600)

90445-11012-00

$15.89

4

TUBE (L530)

90447-13002-00

Unavailable

5

CLAMP

90465-10098-00

$1.68

6

CONNECTION

66V-51142-00-00

$3.18

7

PIPE, OIL 1

66V-13416-01-00

$28.77

8

SPRING

66E-13469-00-00

Unavailable

9

JOINT

65U-13132-00-00

$48.47

10

GASKET, PUMP CASE

63M-13116-00-00

$2.80

11

BOLT(7U8)

97080-06020-00

$3.63

12

WASHER, PLAIN (646)

92990-06600-00

$1.84

13

HOSE (L200)

90445-07MA3-00

$6.86

14

VALVE, CHECK

67X-13183-00-00

Unavailable

15

CLIP

90468-02001-00

$2.02

16

HOSE (L200)

90445-07MA3-00

$6.86

17

VALVE, CHECK

67X-13183-00-00

Unavailable

18

CLIP

90468-02001-00

$2.02

19

CLAMP

90464-07M20-00

Unavailable

20

HOSE (L200)

90445-07MA3-00

$6.86

21

HOSE (L770)

90445-07006-00

$24.46

22

TUBE (L650)

90447-07002-00

$11.99

23

CLIP

90468-02001-00

$2.02

24

PIPE, JOINT 3

6E0-24378-00-00

$6.00

25

JOINT

63M-13132-00-00

$13.99

26

PIPE, JOINT 3

63M-24378-00-00

$5.91

27

PIPE, JOINT 1

6G8-24376-00-00

$5.91

28

CLAMP

90465-10098-00

$1.68
