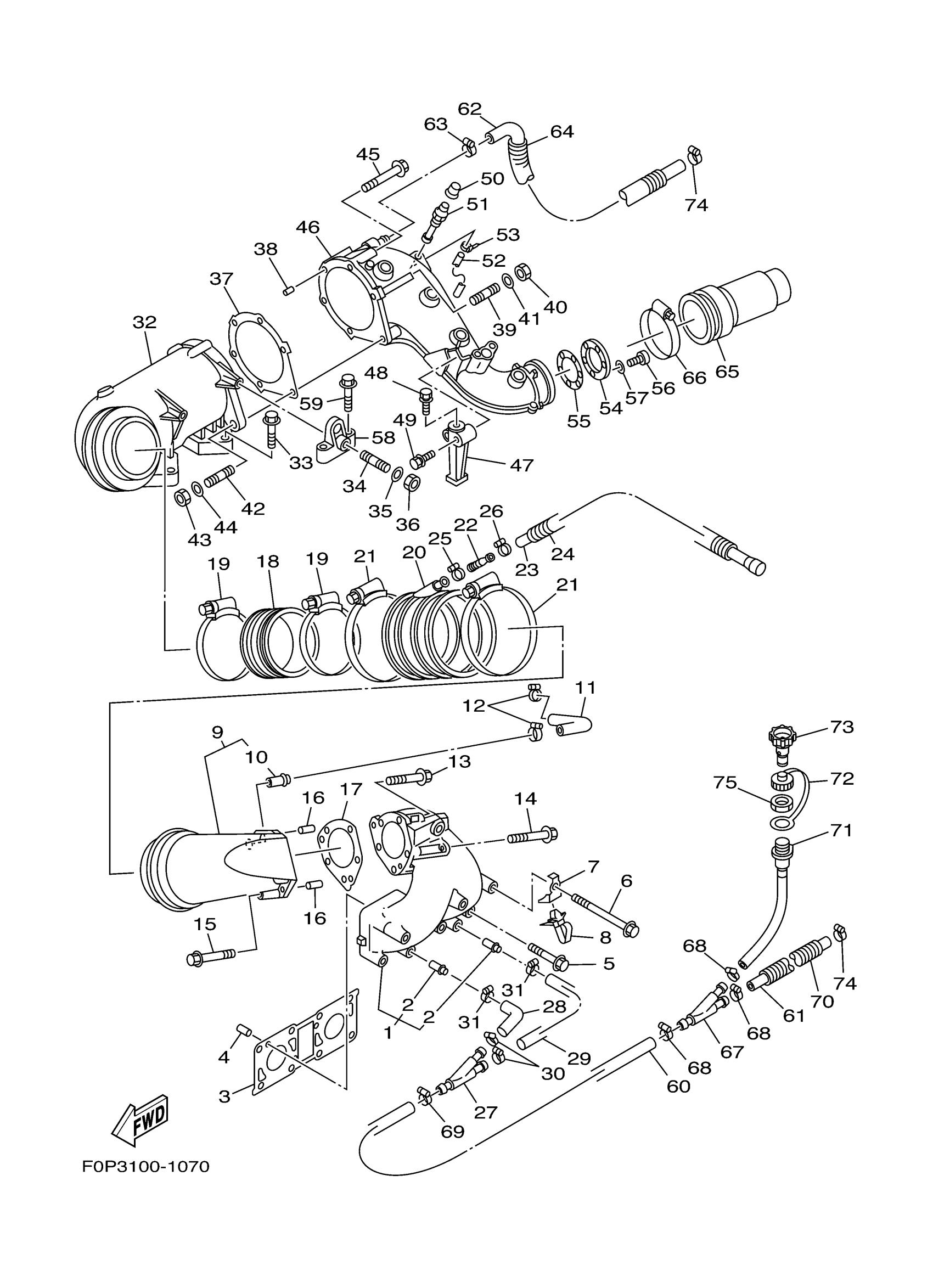

Yamaha XA800AC (XLT800) F1F7 2004 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

66E-14711-10-94

$583.32

2

. NIPPLE

6K8-51129-00-00

$9.62

3

. GASKET, EXHAUST PIPE

66E-14613-00-00

$39.38

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

BOLT, WASHER BASED

90105-10M85-00

$7.65

6

BOLT, WASHER BASED

90105-10M86-00

$7.32

7

CLAMP

90465-20M78-00

$7.97

8

CLAMP(62T)

90465-12M56-00

$6.64

9

RING, JOINT

66E-14712-10-94

$484.83

10

. NIPPLE

66E-51129-00-00

Unavailable

11

HOSE 1

66E-12576-00-00

Unavailable

12

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

13

BOLT, FLANGE

90105-08M83-00

Unavailable

14

BOLT, WASHER BASED

90105-08M84-00

$8.24

15

BOLT, FLANGE

90105-08M66-00

Unavailable

16

PIN, DOWEL (614)

93606-12019-00

$3.05

17

. GASKET, MUFFLER DAMPER 2

66E-14749-00-00

$33.99

18

JOINT, EXHAUST 2

66E-14625-00-00

$53.75

19

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

20

JOINT, EXHAUST 1

66E-14615-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

22

JOINT, HOSE 4

60E-12594-00-00

$4.09

23

HOSE (L1300)

90445-14M22-00

Unavailable

24

TUBE (L1040)

90446-24M94-00

Unavailable

25

HOSE CLAMP ASSY

90450-18M09-00

$9.82

26

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

27

JOINT, HOSE 1

63M-12581-00-00

Unavailable

28

HOSE 2

66E-12577-00-00

Unavailable

29

HOSE 4

66E-12579-00-00

Unavailable

30

HOSE CLAMP ASSY

90450-18M09-00

$9.82

31

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

32

MUFFLER 2

66E-14721-10-8S

$413.62

33

BOLT, WASHER BASED

90105-10M82-00

Unavailable

34

BOLT, STUD

90116-10M66-00

Unavailable

35

WASHER, PLATE

92990-10600-00

$2.57

36

NUT(624)

95380-10600-00

Unavailable

37

GASKET, EXHAUST OUTER COVER

66E-41124-10-00

$53.99

38

PIN, DOWEL (614)

93606-12019-00

$3.05

39

BOLT, STUD

90116-08M64-00

Unavailable

40

NUT(6L2)

95333-08600-00

Unavailable

41

.. WASHER, PLATE

92990-08600-00

$2.17

42

BOLT, STUD

90116-10M65-00

Unavailable

43

NUT(624)

95380-10600-00

Unavailable

44

WASHER, PLATE

92990-10600-00

$2.57

45

BOLT, FLANGE

90105-08M83-00

Unavailable

46

OUTER COVER, EXHAUST

67A-41123-00-00

Unavailable

47

STAY, MUFFLER

66E-14791-00-94

$124.23

48

BOLT, WITH WASHER

90119-10M10-00

Unavailable

49

BOLT, WITH WASHER

90119-10M00-00

$8.56

50

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

51

NIPPLE, GREASE

61L-5169A-00-00

$7.40

52

HOSE (L445)

90445-09M21-00

Unavailable

53

CLAMP

90465-10098-00

$1.68

54

SPACER

66E-14763-10-94

Unavailable

55

. GASKET, EXHAUST PIPE

66E-14623-00-00

$4.09

56

SCREW, PAN HEAD

98580-06016-00

$2.88

57

WASHER, PLAIN (646)

92990-06600-00

Unavailable

58

STAY, MUFFLER 1

66E-14771-01-00

Unavailable

59

BOLT, WITH WASHER

90119-10M18-00

$5.55

60

HOSE (L60)

90445-18M17-00

Unavailable

61

HOSE

90445-18M16-00

Unavailable

62

HOSE 3

66E-12578-00-00

Unavailable

63

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

64

HOSE (L800)

90446-27M95-00

$11.35

65

PIPE, OUTLET

67A-14752-00-00

$263.62

66

CLAMP, HOSE

90460-90M11-00

$42.60

67

JOINT, HOSE 1

63M-12581-00-00

Unavailable

68

HOSE CLAMP ASSY

90450-18M09-00

$9.82

69

HOSE CLAMP ASSY

90450-18M09-00

$9.82

70

HOSE

90446-24M81-00

Unavailable

71

JOINT ASSY

64T-12580-00-00

$113.62

72

CAP,1

682-84385-01-00

$9.08

73

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

74

BAND, HOSE 18

90601-118UF-00

$2.07

75

NUT

EU0-61652-00-00

$11.48
