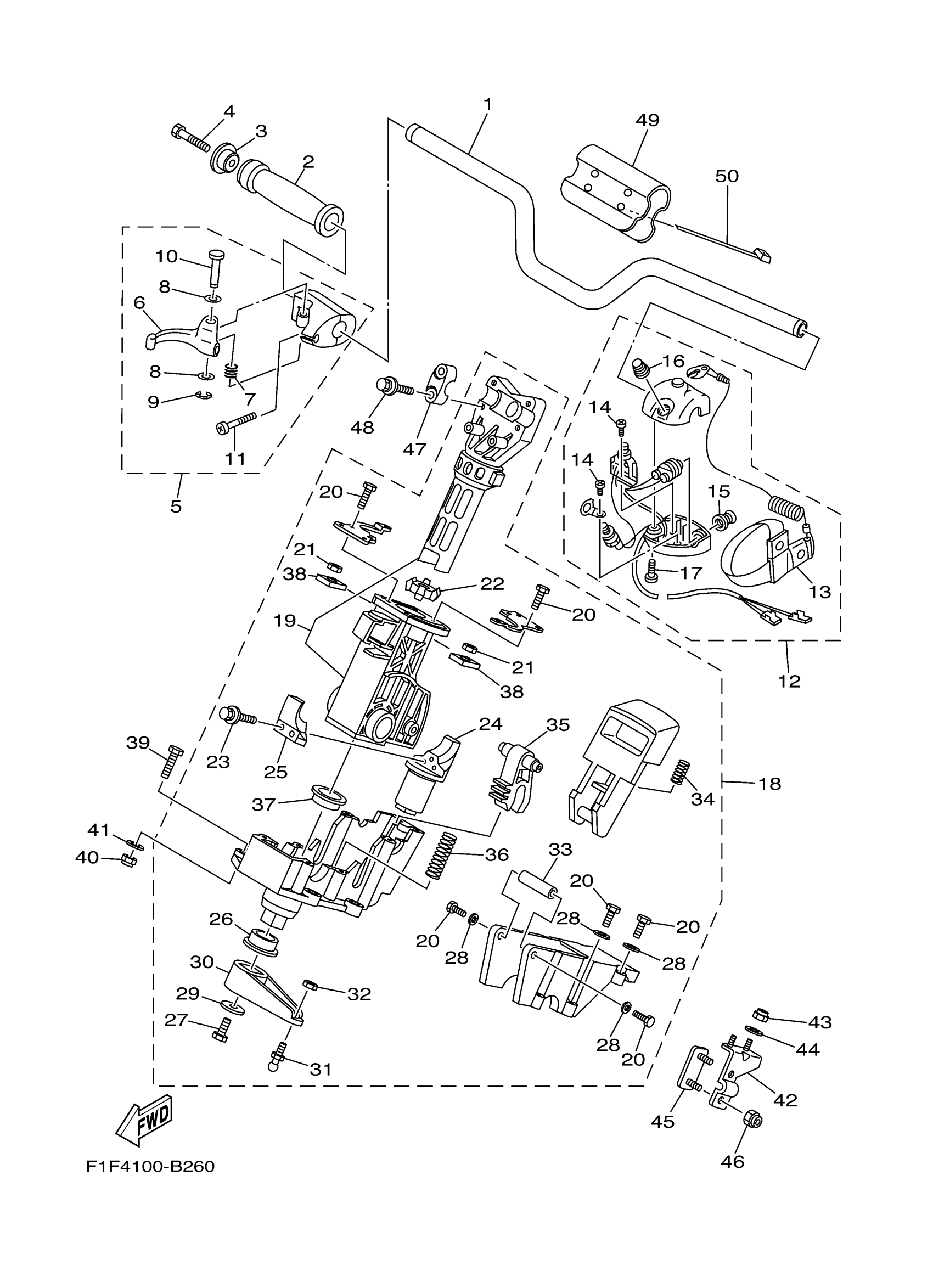

Yamaha XA800AB (XLT800) F1F4 2003 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F0D-U1552-00-00

Unavailable

2

GRIP, HANDLE

GP7-U155D-01-00

$41.63

3

GRIP, END

GP7-U155F-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

Unavailable

6

LEVER, THROTTLE

F0D-67255-02-00

Unavailable

7

. SPRING

EW2-67256-00-00

Unavailable

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.61

10

. SHAFT

F0D-67257-00-00

$16.90

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

GP7-68310-01-00

$255.87

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$11.96

16

. START BUTTON COMP

FK7-68313-02-00

$10.25

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

STEERING MASTER ASSY

F0D-61400-12-00

Unavailable

19

SHAFT ASSY

F0D-67410-01-00

Unavailable

20

. BOLT

F0D-61355-00-00

$5.29

21

. NUT

F0D-6151S-00-00

Unavailable

22

. BALL

F0D-6152R-00-00

$8.81

23

. BOLT

F0D-62624-00-00

$5.29

24

. SHAFT

F0D-6152D-00-00

$52.93

25

. JOINT, UNIVERSAL

F0D-52543-00-00

$38.22

26

. BUSH

F0D-6134M-00-00

$17.63

27

. BOLT, SPECIAL

F0D-6491K-00-00

$7.06

28

. WASHER

F0D-6134E-00-00

$5.29

29

. WASHER

F0D-6135D-00-00

$8.07

30

. ARM, STEERING

F1B-6151B-00-00

$52.93

31

STUD, JOINT BALL

EU0-61461-02-00

$11.01

32

NUT, SELF-LOCKING

95720-06300-00

$1.76

33

. CONNECTOR

F0D-61574-00-00

$16.90

34

. SPRING

F0D-61349-00-00

$16.90

35

. LOCK 1

F0D-61782-00-00

$47.04

36

. SPRING

F0D-6134K-00-00

$17.63

37

. BUSH

F0D-62814-00-00

$1.09

38

. HOLDER

F0D-6724H-00-00

$8.81

39

BOLT, HEXAGON (FJ1)

97080-08030-00

$4.29

40

NUT, NYLON (6J8)

95780-08300-00

$10.09

41

WASHER, PLATE

90201-099U3-00

$2.30

42

BRACKET, STOPPER CABLE

F0D-61467-00-00

$132.34

43

NUT, NYLON

9572R-06300-00

$2.93

44

WASHER

9299R-06200-00

$0.43

45

STOPPER, CABLE

GH3-61468-00-00

Unavailable

46

NUT, NYLON

9572R-06300-00

$2.93

47

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.09

48

BOLT, WITH WASHER

90119-089U1-00

$3.37

49

PAD 1

F0D-U156E-00-00

Unavailable

50

BAND

90601-200U2-00

$3.29
