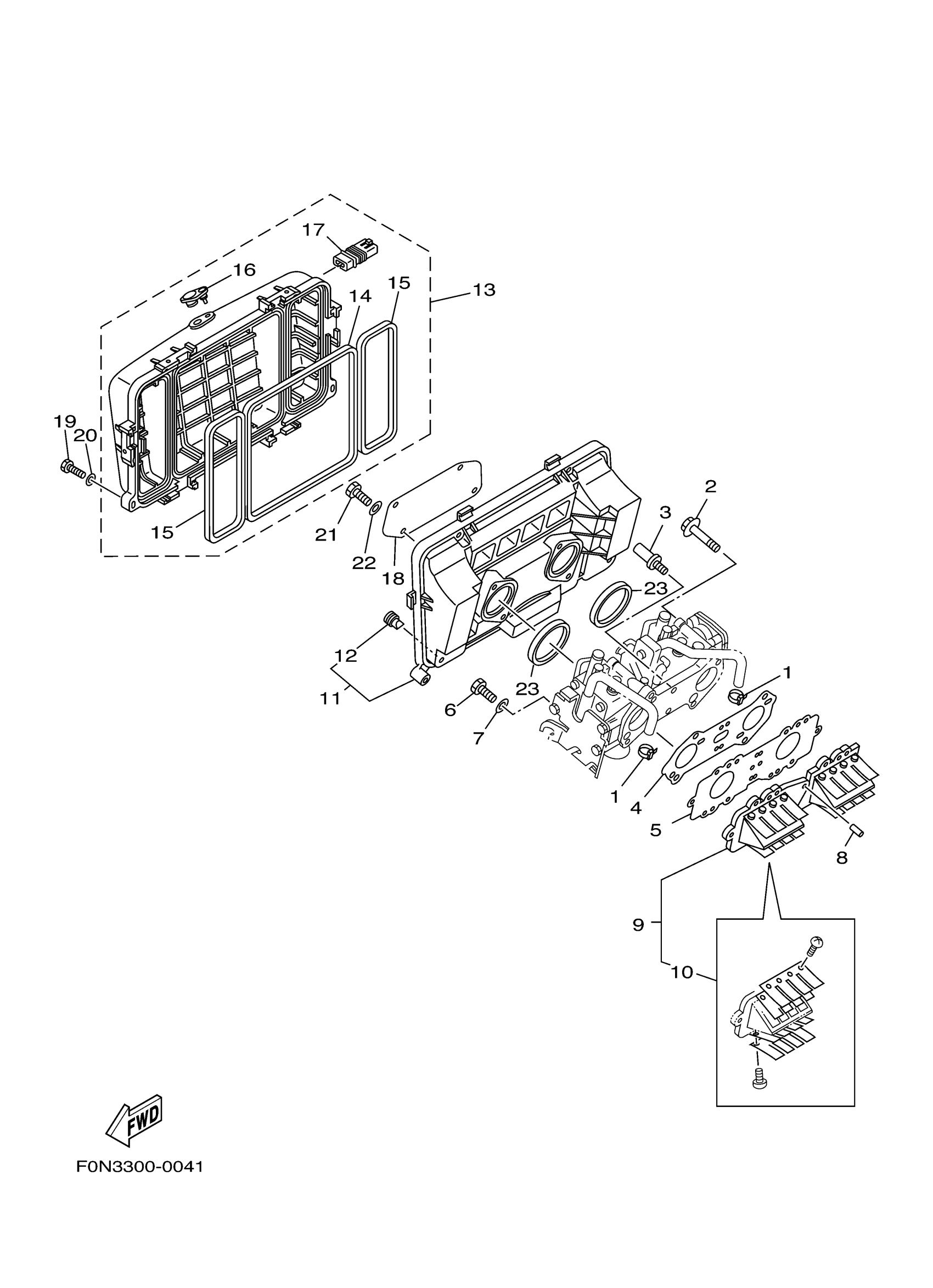

Yamaha XA800AB (XLT800) F1F4 2003 INTAKE Diagram
#
Description
Price
1
CLAMP
90465-10098-00
Unavailable
3
BOLT
90109-06M00-00
Unavailable
4
. GASKET, MANIFOLD
66E-13556-00-00
Unavailable
5
PLATE,REED VALVE
66E-13624-10-94
Unavailable
8
. PIN, DOWEL
93606-19M23-00
Unavailable
9
REED VALVE ASSY
66E-13610-00-00
Unavailable
10
. REED SET
66E-W0004-00-00
Unavailable
11
COVER, CLEANER CASE 2
66E-1441E-00-00
Unavailable
12
. RUBBER, SEAL 2
66E-42717-00-00
Unavailable
13
COVER SUB ASSY
66E-14480-19-00
Unavailable
14
. SEAL
66E-14457-10-00
Unavailable
15
. SEAL
66E-14452-00-00
Unavailable
16
GROMMET
6K8-14435-00-00
Unavailable
17
. HOLDER
66E-13898-11-00
Unavailable
18
ELEMENT, AIR CLEANER
66E-14451-00-00
Unavailable
19
BOLT(J52)
97080-06035-00
Unavailable
21
BOLT, HEXAGON
97013-06045-00
Unavailable
23
. O-RING
66E-13473-00-00
Unavailable
