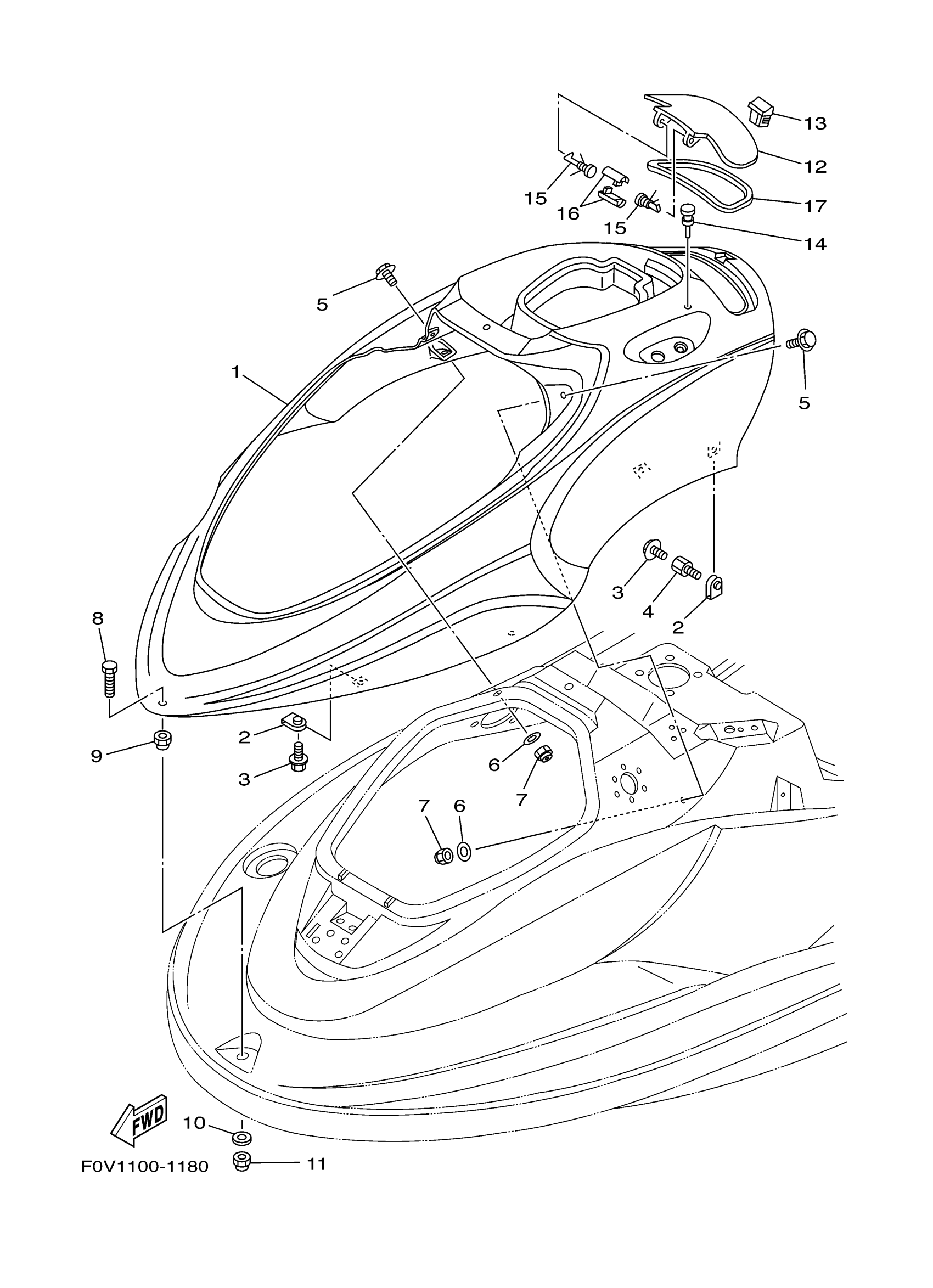

Yamaha XA800AB (XLT800) F1F4 2003 ENGINE HATCH 1 Diagram

#

Description
Price

1

COVER, ENGINE HATCH (GRAYISH CYAN METALLIC 3)

F0V-U516N-50-P0

Unavailable

1

COVER, ENGINE HATCH

F0V-U516N-60-P0

Unavailable

2

NUT, SPRING(GJ3)

90183-06902-00

$11.49

3

BOLT,WITH WASHER

90119-068B8-00

Unavailable

4

NUT, JOINT

F0V-U7772-00-00

Unavailable

5

BOLT, WITH WASHER

90119-06803-00

Unavailable

6

WASHER

9299R-06200-00

Unavailable

7

NUT, NYLON

9572R-06300-00

Unavailable

8

BOLT

9708R-06030-00

Unavailable

9

NUT

9538R-06700-00

Unavailable

10

WASHER

9299R-06200-00

Unavailable

11

NUT, NYLON

9572R-06300-00

Unavailable

12

LID HATCH (GRAYISH CYAN METALLIC 3)

F0D-U517H-80-P0

Unavailable

12

LID HATCH

F0D-U517H-90-P0

Unavailable

13

LOCK

F0D-62875-00-00

Unavailable

14

. PLUG

90605-502U2-00

Unavailable

15

PIN, HINGE

F0D-6517R-00-00

Unavailable

16

JOINT, HINGE

F0D-6517T-00-00

Unavailable

17

PACKING CASE

F0D-U519D-01-00

Unavailable
