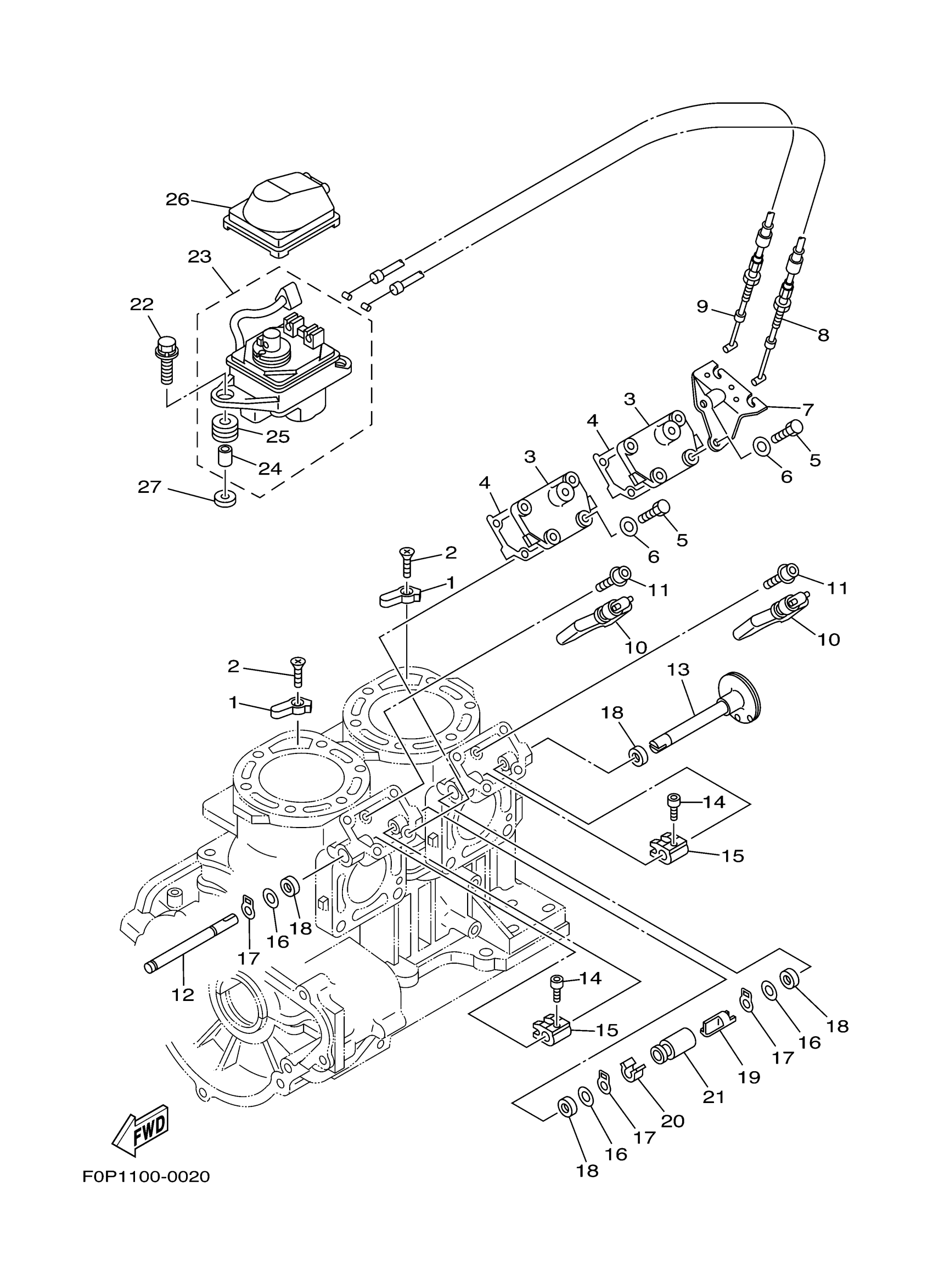

Yamaha XA800AB (XLT800) F1F4 2003 CYLINDER CRANKCASE 2 Diagram

#

Description
Price

1

ANODE

66E-11325-00-00

$10.36

2

SCREW, FLAT HEAD

98780-05020-00

$2.27

3

COVER

66E-1131M-01-00

Unavailable

4

GASKET, COVER

66E-1131B-02-00

$11.05

5

BOLT(62Y)

97013-06025-00

$1.35

6

WASHER, PLAIN (646)

92990-06600-00

$1.84

7

BRACKET 1

66E-11998-00-00

Unavailable

8

CABLE, PULLEY 1

66V-1133E-00-00

$78.77

9

CABLE, PULLEY 1

66V-1133E-00-00

$78.77

10

VALVE ASSY.

66E-1131S-10-00

$216.65

11

BOLT, HEXAGON SOCKET HEAD

90110-05016-00

$2.73

12

SHAFT 1

66E-1131V-00-00

Unavailable

13

PULLEY, SHAFT

66E-1132C-00-00

Unavailable

14

BOLT,SOCKET

91317-04008-00

$5.75

15

LEVER, LINK

60T-11832-00-00

$34.49

16

WASHER, PLATE

90201-08M09-00

Unavailable

17

CIRCLIP

93410-08M12-00

Unavailable

18

OIL SEAL

93109-08M07-00

$12.86

19

JOINT 1

66E-1131H-00-00

$4.55

20

JOINT 2

66E-1131J-10-00

$2.69

21

COVER, JOINT

66E-1131C-10-00

$2.95

22

BOLT, WITH WASHER

90119-069UX-00

$2.66

23

SERVO MOTOR ASSY

60G-85820-00-00

$740.89

24

COLLAR (1T2)

90387-07598-00

Unavailable

25

GROMMET 839774310000

90480-14023-00

Unavailable

26

COVER, WIRE

66E-85825-00-00

$23.99

27

WASHER, PLATE

90201-06M04-00

Unavailable
