- XA800AB (XLT800) F1F4 2003
CYLINDER CRANKCASE 1

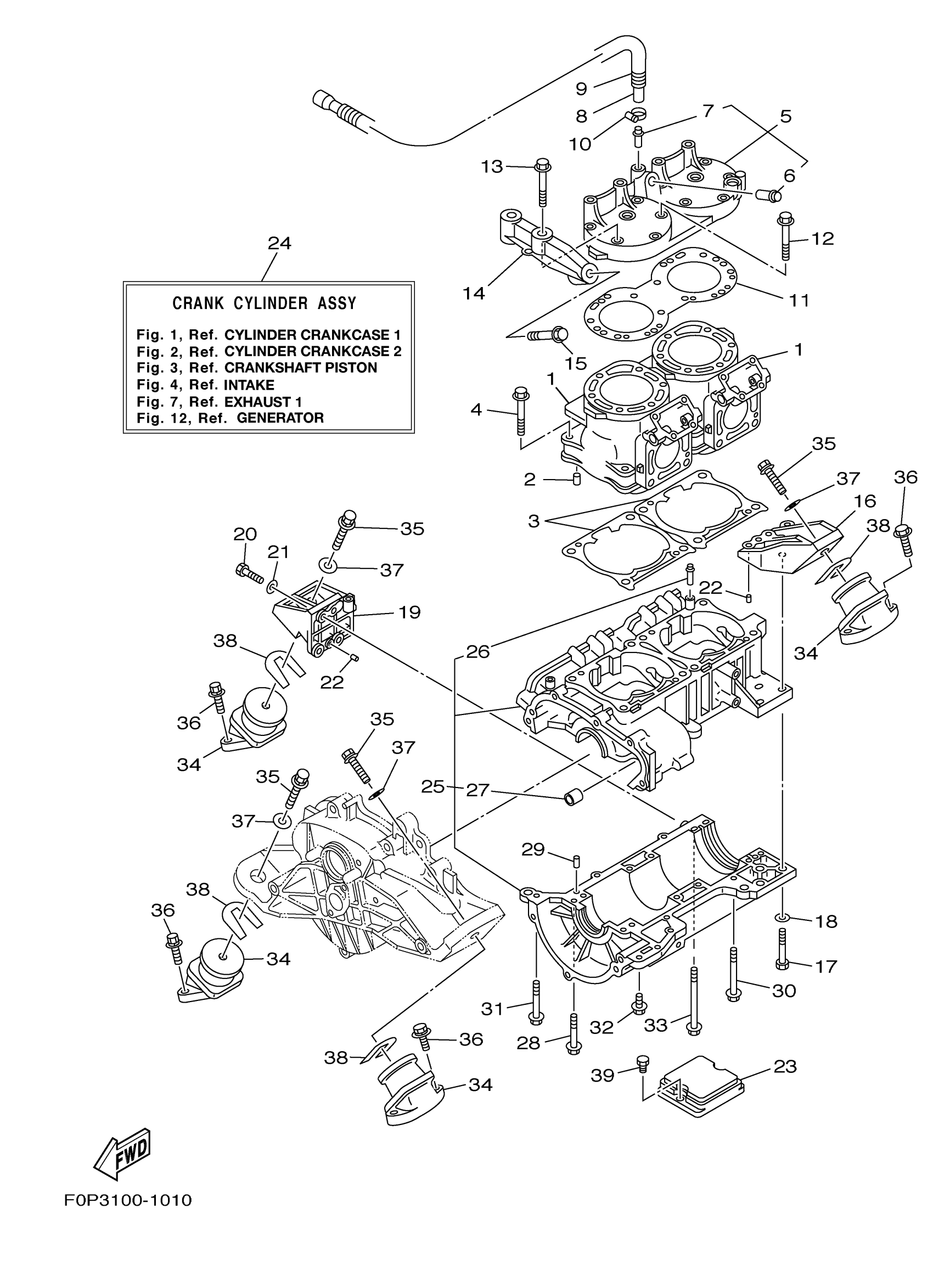

Yamaha XA800AB (XLT800) F1F4 2003 CYLINDER CRANKCASE 1 Diagram
#
1
CYLINDER & PISTON SET
66E-W1130-00-94
Unavailable
2
PIN, DOWEL (614)
93606-12019-00
$4.24
3
GASKET, CYLINDER
66E-11351-02-00
Unavailable
4
BOLT (6F5)
90119-10M07-00
$4.82
5
HEAD, CYLINDER 1
66E-11111-00-8S
Unavailable
6
. NIPPLE
66E-51129-00-00
Unavailable
7
. NIPPLE
6K8-51129-00-00
Unavailable
8
HOSE (L1650)
90445-14003-00
Unavailable
9
HOSE, WITH SPRING
90447-19003-00
Unavailable
10
HOSE CLAMP ASSY(62T)
90450-14M05-00
$17.99
11
. GASKET, CYLINDER HEAD 1
66E-11181-00-00
Unavailable
12
BOLT, WITH WASHER
90119-08MA1-00
$7.49
13
BOLT, WITH WASHER
90119-08MA2-00
Unavailable
14
STAY, MUFFLER 2
66E-14781-10-00
Unavailable
15
BOLT, WITH WASHER
90119-10M00-00
Unavailable
16
BRACKET, REAR UPPER 1
66E-21425-10-8S
Unavailable
17
BOLT
97013-08045-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
BRACKET, REAR UPPER 2
66E-21426-10-8S
Unavailable
20
BOLT, HEXAGON
97013-08030-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
PIN, DOWEL (614)
93606-12019-00
$4.24
23
STOPPER, UPPER MOUNT
67A-44532-00-94
Unavailable
24
CRANK CYLINDER ASSY
66E-W0090-13-8S
Unavailable
25
CRANKCASE ASSY
66E-15100-10-00
Unavailable
26
NIPPLE
62T-14251-10-00
Unavailable
27
. BUSH, SOLID
90380-12M29-00
Unavailable
28
BOLT, WITH WASHER
90119-08M55-00
Unavailable
29
PIN, DOWEL (614)
93606-12019-00
$4.24
30
BOLT, WITH WASHER
90119-06M78-00
Unavailable
31
BOLT (6F5)
90119-08M09-00
Unavailable
32
BOLT, WITH WASHER (682)
90119-06M13-00
Unavailable
33
BOLT, WITH WASHER
90119-08M56-00
Unavailable
34
MOUNT RUBBER
6M6-44517-A2-94
Unavailable
35
BOLT, WITH WASHER
90119-08856-00
Unavailable
36
BOLT, WITH WASHER
90119-08829-00
Unavailable
37
WASHER, PLATE
90201-099U3-00
Unavailable
38
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
38
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
38
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
38
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
38
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
39
BOLT
90101-06917-00
Unavailable
