2002 Yamaha XLT800 (XA800AA) Ventilation Diagram

← All diagrams

Find the part on the Ventilation diagram for your 2002 Yamaha XLT800 (XA800AA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

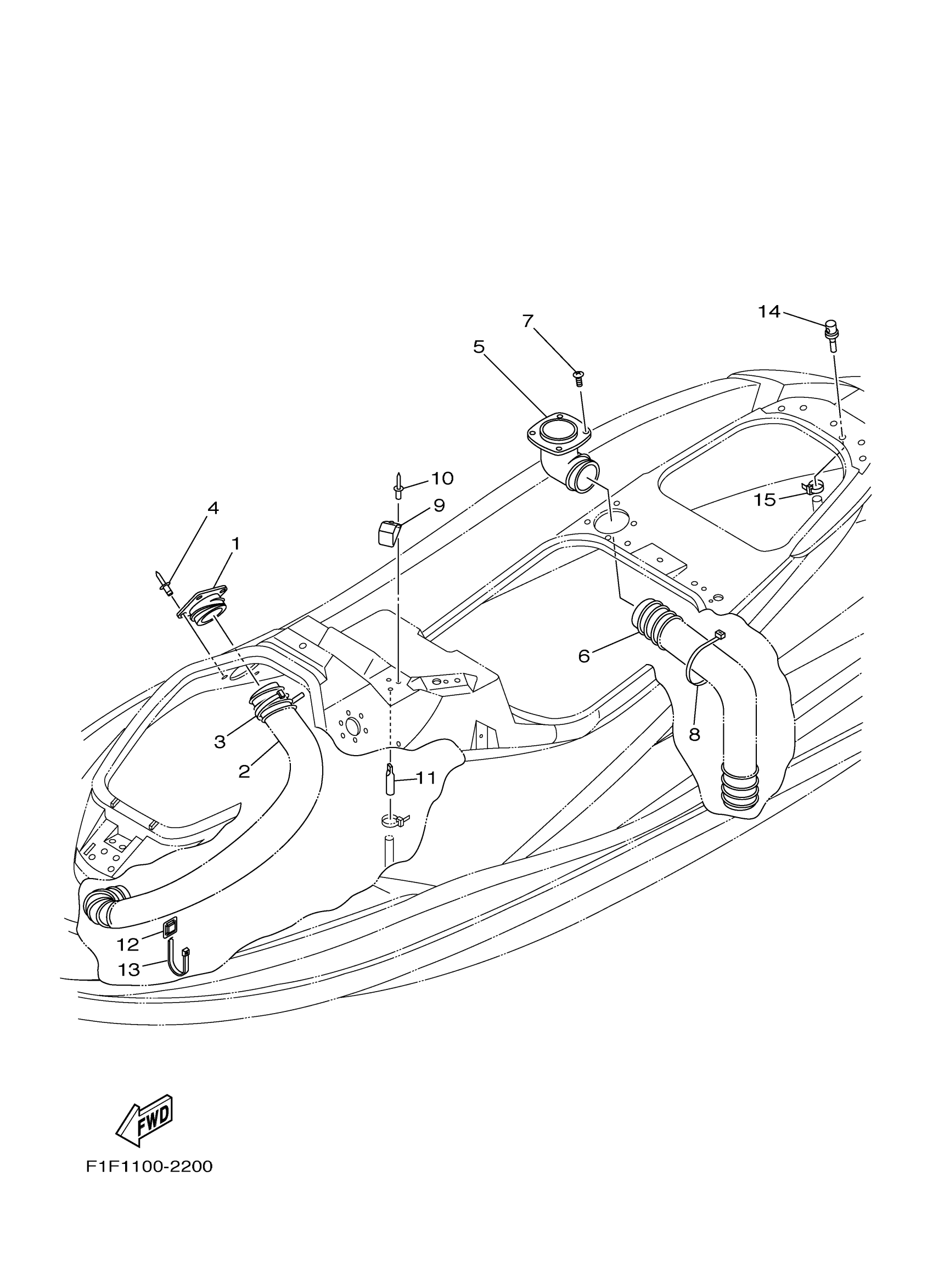

2002 Yamaha XLT800 (XA800AA) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, AIR INTAKE

F0D-62127-00-00

1
Out of stock

2

HOSE, VENTILATOR 1

F0D-U213F-05-00

1
Out of stock

3

CLAMP

90464-99804-00

1
Out of stock

4

RIVET, BLIND

90267-489UE-00

1
Out of stock

5

VENTILATOR, OUTLET

F0D-62139-00-00

1
Out of stock

6

HOSE, VENTILATOR 2

F0D-U213G-04-00

1
Out of stock

7

SCREW (EW2)

90149-05962-00

1
Out of stock

8

BAND

90601-200U7-00

1
Out of stock

9

SOCKET, VENTILATION

GP7-62159-02-00

1
Out of stock

10

RIVET, BLIND

90267-48802-00

1
Out of stock

11

PIPE, VENTILATION 1

EW2-62149-00-00

1
Out of stock

12

BASE, CLAMP

90600-900U6-00

1
Out of stock

13

CLAMP

90464-99801-00

1
Out of stock

14

NIPPLE

GJ3-6215F-00-00

1
Out of stock

15

CLAMP

90465-10098-00

1
Out of stock
